For Small and Medium Zoom Rooms - video conferencing kit
| Main Specifications | |
|---|---|
| Product Description | Yealink ZVC Series S40-C5U - for Small and Medium Zoom Rooms - video conferencing kit |
| Device Type | Video conferencing kit |

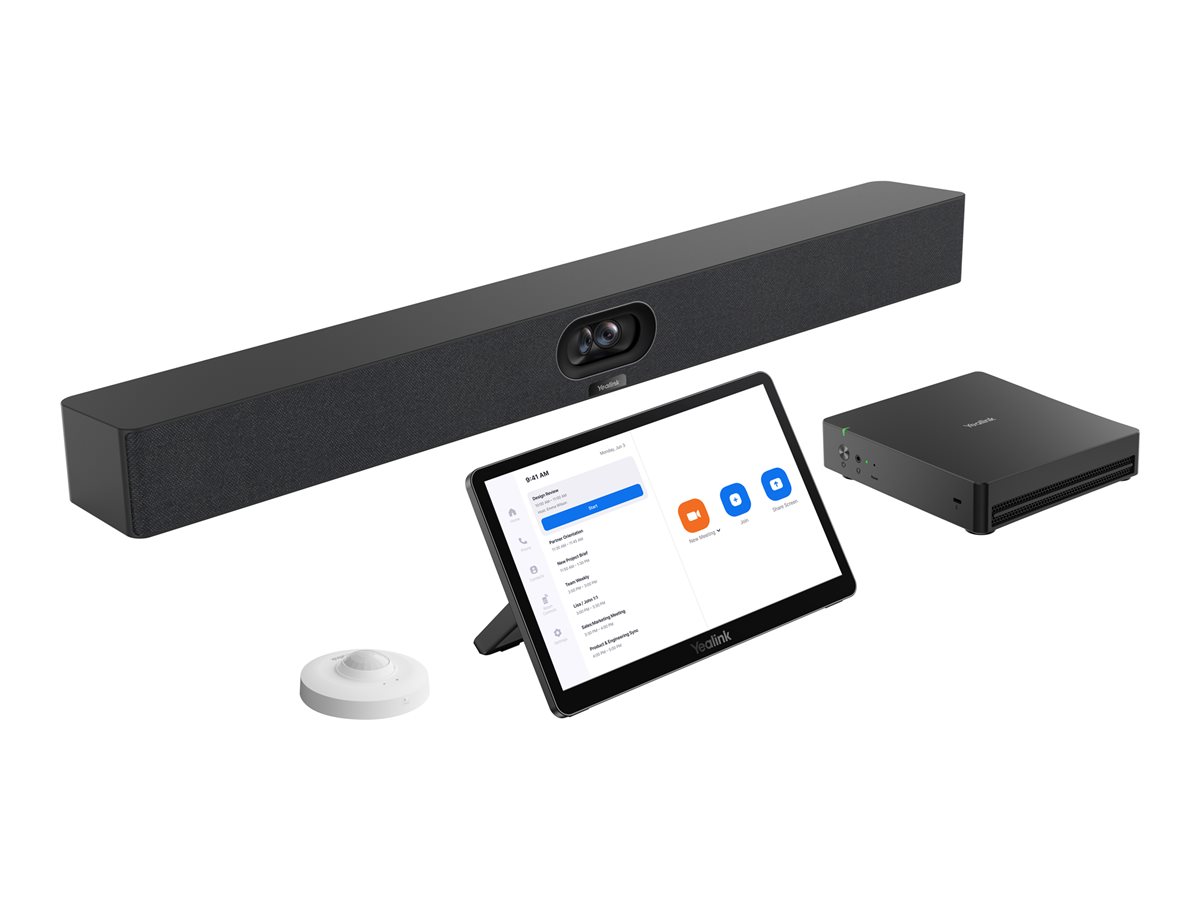

| Kit Content | MTouch Plus touch panel, RoomSensor, SmartVision 40, MCore 4 |
| Display | 11.6" IPS / 1920 x 1080 |
| Video Input | Dual digital video camera - USB |
| Video Output | Codec board |
| Audio Input | 8 microphones - MEMS-directional |
| Audio Output | Speaker(s) |
| Input Device | 11.6" touchscreen (wireless, wired) |
| PC Configuration | Core Ultra 5 125H, 16GB RAM, 256GB SSD |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | MTouch Plus touch panel, RoomSensor, SmartVision 40, MCore 4 |
| Expansion / Connectivity | |
| Interfaces | 3 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x Yealink Mtouch port - RJ-45 ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphones - mini-phone 3.5 mm |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | CEC, TUV SUD, EDID compatible, ISO 14064 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features | Trusted Platform Module 2.0 (TPM 2.0) |
| Power | |
| Power Device | Power adapter - external |
| Software / System Requirements | |
| Software Included | Zoom Rooms, Windows 11 IoT Enterprise 64-bit, Windows 11 IoT Enterprise License, Yealink RoomConnect |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% |
| Audio Output | |
| Type | Speaker(s) |
| Output Power / Channel | 10 watt |
| Audio Input | |
| Type | 8 microphones - integrated |
| Microphone Operation Mode | MEMS-directional |
| Input Device | |
| Type | 11.6" touchscreen |
| Connectivity Technology | Wireless, wired |
| Features | Security lock slot, IPS screen |
| Display | |
| Technology | IPS |
| Diagonal Size | 11.6" |
| Native Resolution | 1920 x 1080 |
| Monitor Features | Touch screen, narrow-bezel design |
| Video Input | |
| Type | Dual digital video camera (color) - external |
| Interface Type | USB |
| Digital Video Capture Resolution | 4K |
| Video Modes | 4K |
| Digital Zoom | 8 |
| Features | Picture-in-picture capability, security lock slot (cable lock sold separately), auto-framing, 120° diagonal field of view, speaker tracking, multi-focus framing, 111° field of view (horizontal), 48 megapixels resolution, IntelliFocus support, Video Fence support, Virtual Background, 3 m microphone pick up range |
| Video Output | |
| Type | Codec board - external |
| PC Configuration | Core Ultra 5 125H, 16GB RAM, 256GB SSD |
