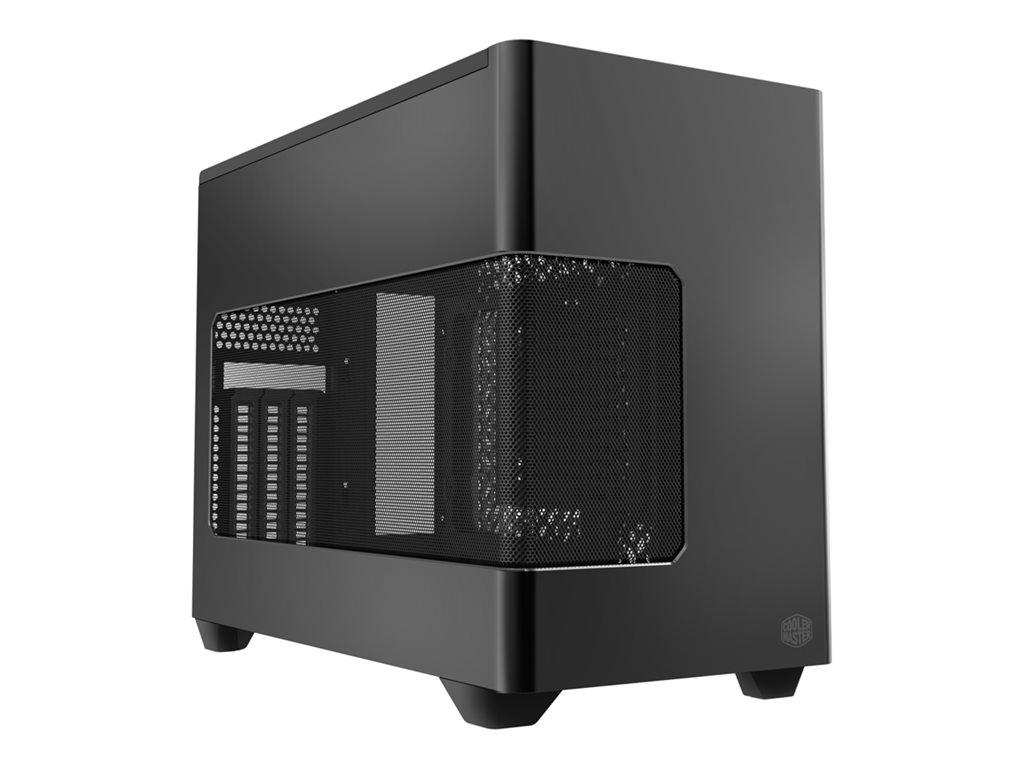

Mini-ITX - no power supply (SFX / SFX-L) - black - USB/Audio
| Main Specifications | |
|---|---|
| Product Description | Cooler Master MasterBox NR200P V3 - mini-ITX |
| Product Type | System cabinet |
| Form Factor | Mini-ITX |
| Color | Black |
| I/O Connectors | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone |
| Supported Motherboards | Mini-ITX |
| System Cabinet Features | Vertical/horizontal graphic card orientation, meshed left panel, removable mesh panel, up to 3.8-slot graphics card cooler |
| Power Device | No power supply (SFX / SFX-L) |
| Dimensions (WxDxH) | 7.3 in x 14.9 in x 11.5 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Form Factor | Mini-ITX |
| Max Mainboard Size | Mini ITX |
| Supported Motherboards | Mini-ITX |
| Internal Bays Qty | 2 |
| Product Material | SGCC, ABS plastic, CNC aluminum |
| Color | Black |
| Cooling System | Bottom: 120 mm fan mount x 1 ¦ Top: 120 mm fan mount x 2 / 2 x 140 mm fan or 120/140/240/280 radiator supported |
| CPU Cooler Max Height | 70 mm |
| Video Card Max Length | 361.5 mm |
| Power Supply Max Length | 160 mm |
| System Cabinet Features | Vertical/horizontal graphic card orientation, meshed left panel, removable mesh panel, up to 3.8-slot graphics card cooler |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 1 x headphone/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | Graphic card holder, PCIe 5.0 riser cable |
| Power | |
| Power Device | No power supply |
| Specification Compliance | SFX / SFX-L |
| Max Supported Qty | 1 |
| Dimensions & Weight | |
| Width | 7.3 in |
| Depth | 14.9 in |
| Height | 11.5 in |
