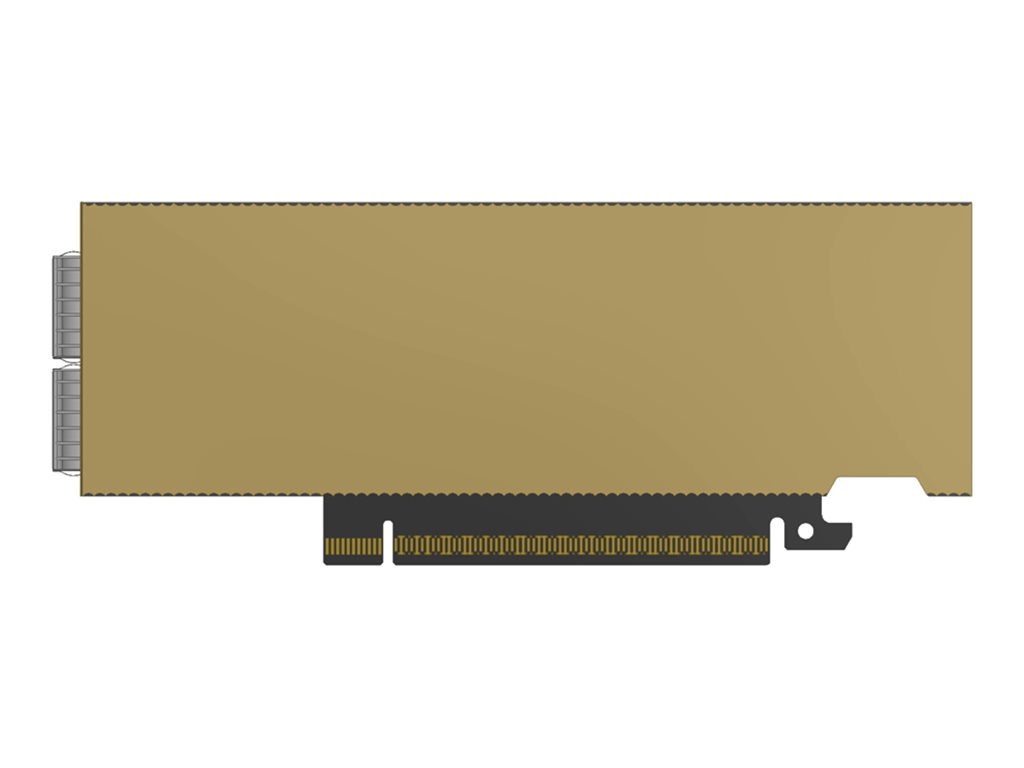

Network adapter - PCIe 6.0 x16 - 400Gb Ethernet QSFP112 x 2
| Main Specifications | |
|---|---|
| Product Description | NVIDIA ConnectX-8 C8240 - network adapter - PCIe 6.0 x16 - 400Gb Ethernet QSFP112 x 2 |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 6.0 x16 |
| PCI Specification Revision | PCIe 6.0 |
| Ports | 400Gb Ethernet QSFP112 x 2 |
| Dimensions (WxDxH) | 6.6 in x 2.6 in |
| Data Link Protocol | 400 Gigabit InfiniBand, 400GbE, 200 Gigabit InfiniBand, 200GbE, 100GbE, 100 Gigabit InfiniBand |
| Data Transfer Rate | 400 Gbps |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 6.0 x16 |
| PCI Specification Revision | PCIe 6.0 |
| Miscellaneous | |
| Compliant Standards | CB, cTUVus, FCC, VCCI, ICES, RCM, KC, RoHS |
| Networking | |
| Ports | 400Gb Ethernet QSFP112 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 400 Gigabit InfiniBand, 400 Gigabit Ethernet, 200 Gigabit InfiniBand, 200 Gigabit Ethernet, 100 Gigabit Ethernet, 100 Gigabit InfiniBand |
| Data Transfer Rate | 400 Gbps |
| Features | HHHL, Socket Direct Technology, crypto enabled, secure boot, InfiniBand NDR Link support, SerDes technology, InfiniBand EDR Link support, InfiniBand HDR Link support, InfiniBand HDR100 Link support, InfiniBand SDR Link support |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 85% RH |
| Dimensions & Weight | |
| Depth | 6.6 in |
| Height | 2.6 in |
