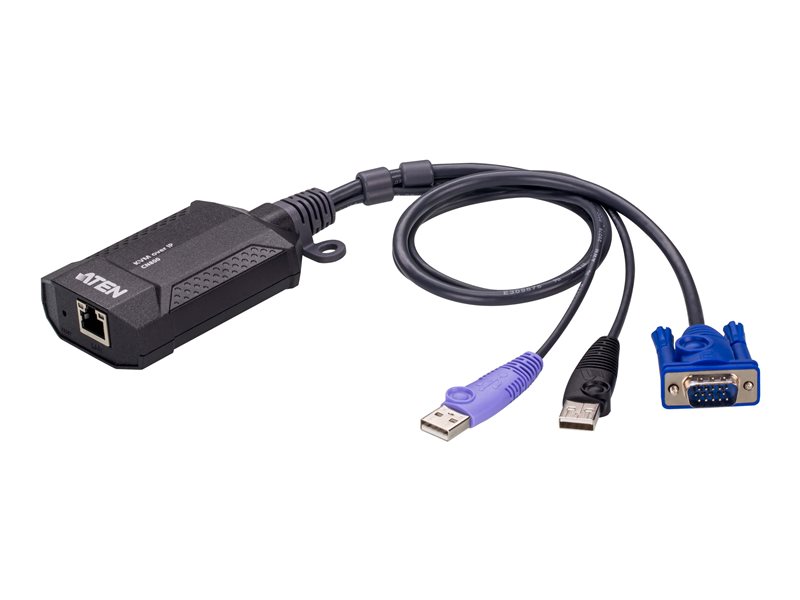

Remote control device - mini - 100Mb LAN, RS-232
| Main Specifications | |
|---|---|
| Product Description | ATEN KVM over IP CN800 - remote control device - mini |
| Device Type | Remote control device |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Performance | Maximum accounts: 64 ¦ Concurrent logins: 32 |
| OS Required | Microsoft Windows, Apple MacOS, Linux, Sun Linux |
| Power | DC 5 V |
| Dimensions (WxDxH) | 2.2 in x 3.7 in x 1 in |
| Weight | 6 oz |
| General | |
| Device Type | Remote control device |
| Width | 2.2 in |
| Depth | 3.7 in |
| Height | 1 in |
| Weight | 6 oz |
| Expansion / Connectivity | |
| Interfaces | 1 x keyboard / video / mouse (KVM) ¦ 1 x keyboard / video / mouse (KVM) ¦ 1 x RS-232 - DB-15 ¦ 1 x 10/100Base-T - RJ-45 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Remote Management Protocol | DDNS |
| Performance | Maximum accounts: 64 ¦ Concurrent logins: 32 |
| Status Indicators | Power, link/activity |
| Features | 1920 x 1200 @ 60Hz streaming video support, hook design, BIOS support, bus powered, reset button, LED status indicators, plastic housing, 24-bit Deep Color support, IPv6 support, RADIUS support, LDAP support, MAC address filtering, password protection |
| Encryption Algorithm | TLS 1.2 |
| Authentication Method | LDAPS, LDAP, RADIUS |
| Power | |
| Voltage Required | DC 5 V |
| Power Consumption Operational | 3.47 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows, Apple MacOS, Linux, Sun Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
