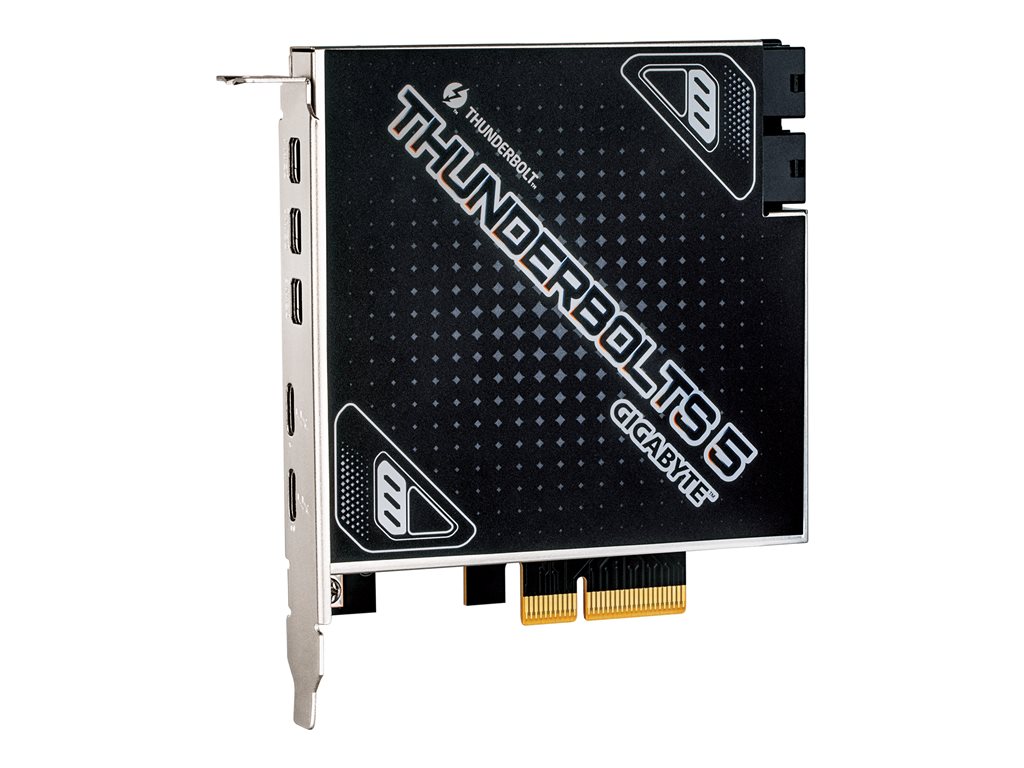

Thunderbolt adapter - PCIe 4.0 x4 - Thunderbolt 5 x 2 + mini DisplayPort x 3 + USB 2.0 (internal) x 1
| Main Specifications | |
|---|---|
| Product Description | Gigabyte THUNDERBOLTS 5 - Thunderbolt adapter - PCIe 4.0 x4 - Thunderbolt 5 x 2 + mini DisplayPort x 3 + USB 2.0 (internal) x 1 |
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x4 |
| PCI Specification Revision | PCIe 4.0 |
| Ports | Thunderbolt 5 x 2 + mini DisplayPort x 3 + USB 2.0 (internal) x 1 |
| Cabling Type | Thunderbolt 5 |
| Data Link Protocol | Thunderbolt 5 |
| Data Transfer Rate | 120 Gbps |
| Processor | 1 x Intel JHL9580 |
| General | |
| Device Type | Thunderbolt adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x4 |
| PCI Specification Revision | PCIe 4.0 |
| Expansion / Connectivity | |
| Interfaces | 2 x Thunderbolt 5 - 24 pin USB-C ¦ 3 x DisplayPort input - Mini DisplayPort ¦ 1 x USB 2.0 - USB 2.0 A (internal) |
| Miscellaneous | |
| Cables Included | 2 x Thunderbolt header cable ¦ 3 x Mini DisplayPort cable ¦ 1 x USB header cable |
| Compliant Standards | USB Power Delivery 3.1, DisplayPort 2.1 |
| Networking | |
| Ports | Thunderbolt 5 x 2 + mini DisplayPort x 3 + USB 2.0 (internal) x 1 |
| Cabling Type | Thunderbolt 5 |
| Data Link Protocol | Thunderbolt 5 |
| Data Transfer Rate | 120 Gbps |
| Features | Daisy-chaining support, USB Power Delivery (up to 100 watt), 8K resolution support |
| Processor / Memory | |
| Processor | 1 x Intel JHL9580 |
