Motherboard - SSI CEB - Socket sTR5 - AMD TRX50 Chipset - USB4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio
| Main Specifications | |
|---|---|

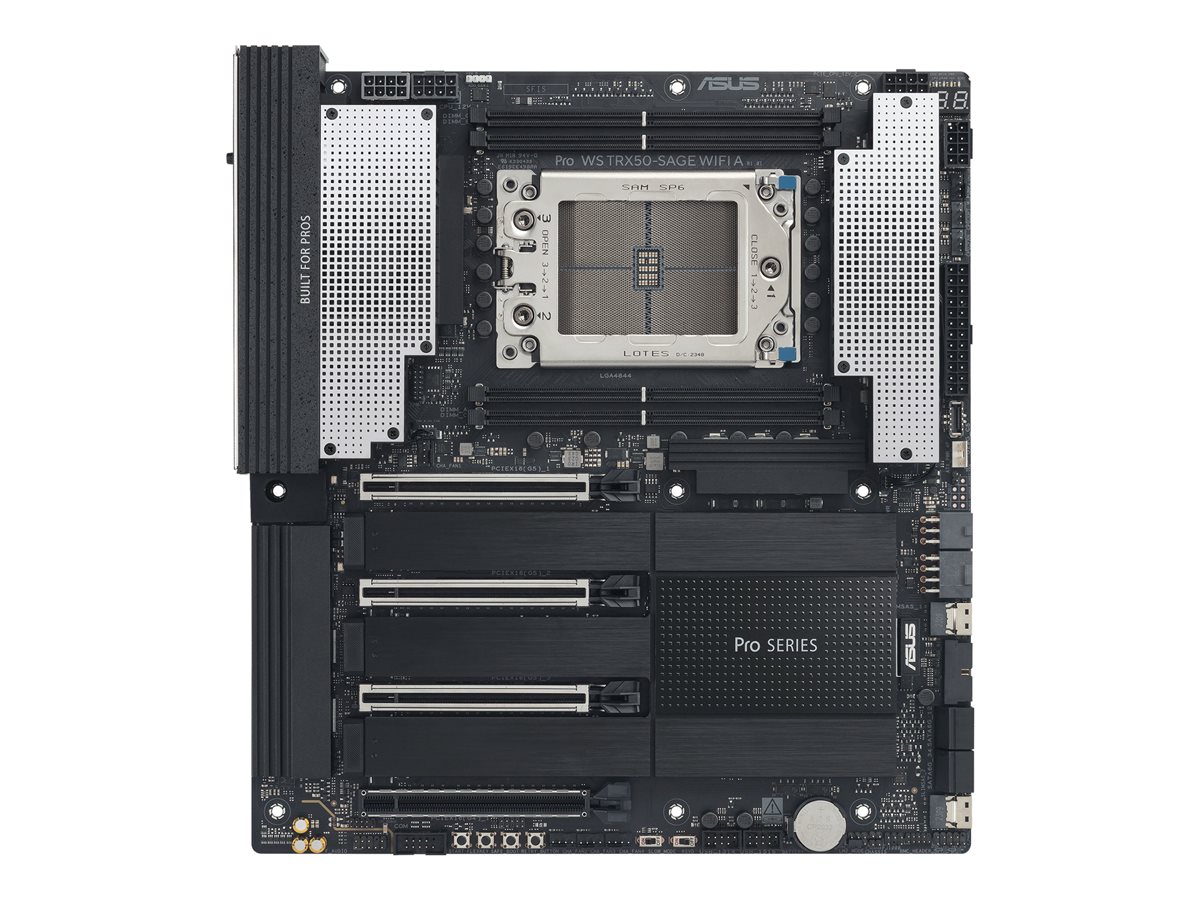

| Product Description | ASUS PRO WS TRX50-SAGE WIFI A - motherboard - SSI CEB - Socket sTR5 - AMD TRX50 |
| Product Type | Motherboard - SSI CEB |
| Chipset Type | AMD TRX50 |
| Processor Socket | 1 x Socket sTR5 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| RAM Supported | 4 DIMM slots - DDR5, ECC, registered |
| Storage Ports | 4 x SATA-600 (RAID), 4 x M.2, 2 x SlimSAS |
| USB / FireWire Ports | 2 x USB4 + 6 x USB 3.2 Gen 2 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio | HD Audio |
| LAN | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| General | |
| Product Type | Motherboard - SSI CEB |
| Chipset Type | AMD TRX50 |
| Processor Socket | Socket sTR5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x SlimSAS |
| RAID Features | AMD RAID Xpert2 Technology |
| Interfaces | 6 x USB 3.2 Gen 2 ¦ 2 x USB4 ¦ 1 x USB 2.0 ¦ 2 x antenna ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 2 x DisplayPort input |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector, 2 x 24-pin main power connectors, 8-pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories | Thermistor cable, Q-Connector, ASUS Wi-Fi Q-antenna, ACC Express Activation Key Card, 2 x M.2 Q-Latch, 2 x M.2 Q-Slide, 2 x M.2 rubber package |
| Cables Included | 2 x Serial ATA cable ¦ 1 x DisplayPort cable |
| Width | 12 in |
| Depth | 11 in |
| Package Details | Box |
| Audio | |
| Type | HD Audio |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, overcurrent protection, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ProCool II Power Connector, FlexKey button, ASUS ProCool II, M.2 Q-Latch, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, Q-Connector |
| LAN | |
| Network Controller | Marvell AQtion / Intel I226-LM |
| Network Interfaces | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Supported RAM | |
| Technology | DDR5 |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered |
| Features | Four DDR channels |
