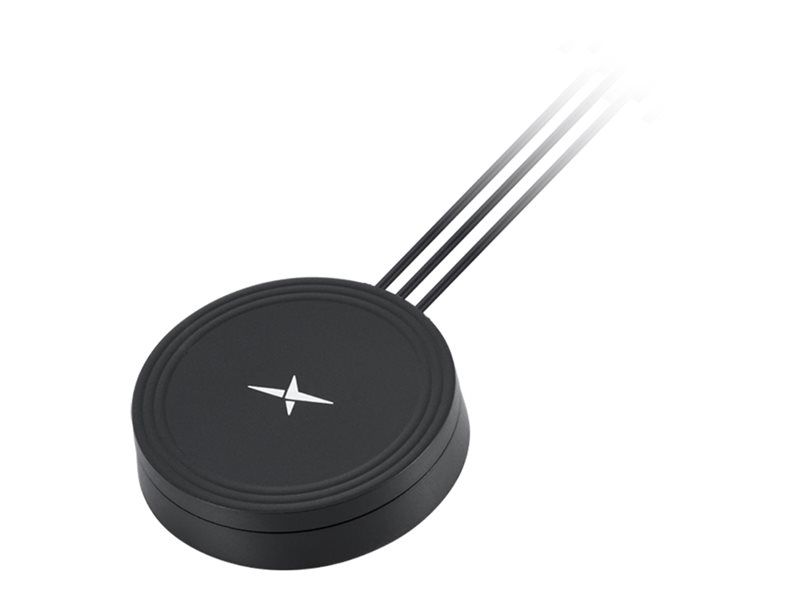

Antenna - puck - cellular - 5.17 dBi (for 600 - 7125 MHz) - magnetic mountable, adhesive mount
| Main Specifications | |
|---|---|
| Product Description | Taoglas Comet MA323 - antenna |
| Device Type | Antenna |
| Form Factor | Puck |
| Intended For | Cellular |
| Antenna Placing / Mounting | Magnetic mountable, adhesive mount |
| Dimensions (WxDxH) | 0.7 in |
| Weight | 3.99 oz |
| Frequency Range | 600 - 7125 MHz |
| Gain | 5.17 dBi (for 600 - 7125 MHz) |
| Features | RoHS, IP67, linear polarization, MIMO technology, waterproof, low profile |
| General | |
| Product Type | Antenna |
| Form Factor | Puck |
| Intended For | Cellular |
| Antenna Placing / Mounting | Magnetic mountable, adhesive mount |
| Height | 0.7 in |
| Length / Max Length | 3.1 in |
| Weight | 3.99 oz |
| Product Material | ASA plastic, 3M Adhesive |
| Miscellaneous | |
| Cables Included | Antenna cable - 6.6 ft |
| Antenna | |
| Frequency Range | 600 - 7125 MHz |
| Impedance | 50 ohm |
| Gain | 5.17 dBi (for 600 - 7125 MHz) |
| Max Power | 10 watt |
| Features | RoHS, IP67, linear polarization, MIMO technology, waterproof, low profile |
| Connector Provided | |
| Type | 2 x antenna - SMA (male) |
