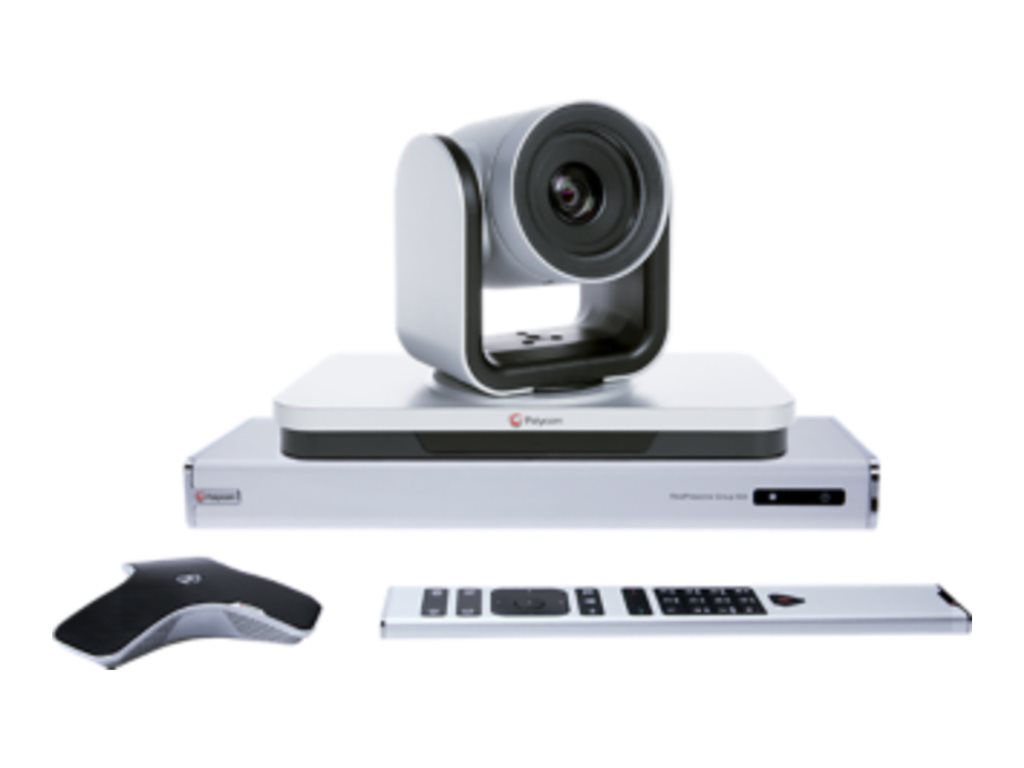

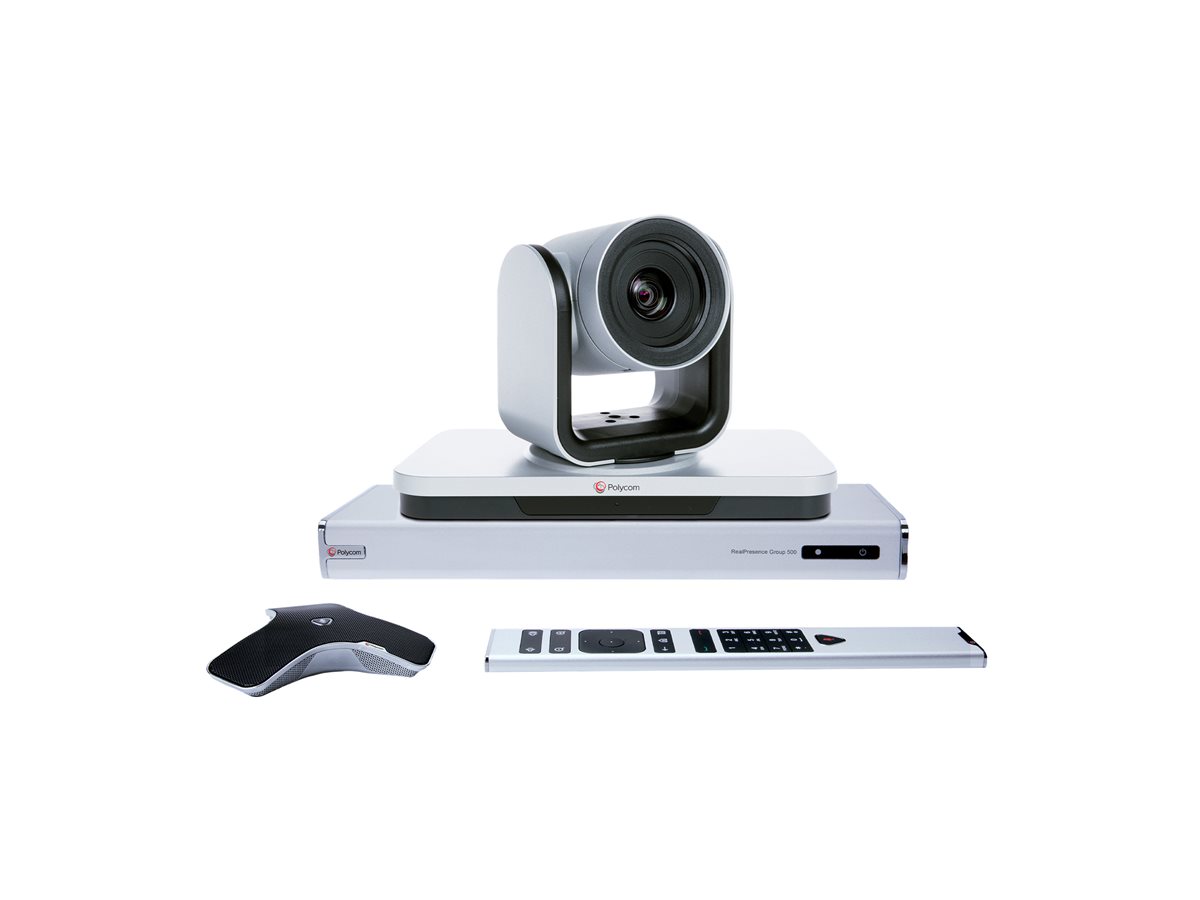

Video conferencing kit - silver - with EagleEye IV-12x camera and RealPresence Group microphone array - power adapter included
| Main Specifications | |
|---|---|
| Product Description | HP Poly RealPresence Group 500 - video conferencing kit - with EagleEye IV-12x camera and RealPresence Group microphone array - power adapter included |
| Device Type | Video conferencing kit |
| Codec | H.261, H.263, H.264, H.239 |
| Max Transfer Rate | 6 Mbps |
| Digital Signaling Protocol | H.323, H.281, SIP, H.225, H.239, H.241, H.460, H.243, H.245, H.224 |
| Data Compression Protocol | G.711, G.728, G.722, G.729.A, G.722.1 |
| Video Input | Digital video camera |
| Video Output | Codec board - 1920 x 1200 |
| Audio Input | Microphone |
| Input Device | Remote control (wireless) |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 120/230 V (50/60 Hz) |
| Manufacturer Warranty | 1-year warranty |
| Bundled with | EagleEye IV-12x camera and RealPresence Group microphone array |
| General | |
| Device Type | Video conferencing kit |
| Video Codecs | H.261, H.263, H.264, H.239 |
| Dimensions & Weight Details | Control unit - Width 11.3 in Depth 4.8 in Height 1.2 in Weight 2.4 lbs ¦ Camera - Width 8.6 in Depth 4.6 in Height 5.4 in |
| Enclosure Color | Silver |
| Bundled with | EagleEye IV-12x camera and RealPresence Group microphone array |
| Expansion / Connectivity | |
| Interfaces | 1 x camera - input - 60 pin HDCI ¦ 1 x video - HDMI input - 19 pin HDMI Type A ¦ 1 x audio - HDMI input - 19 pin HDMI Type A ¦ 1 x audio - HDMI output - 19 pin HDMI Type A ¦ 2 x video - HDMI output - 19 pin HDMI Type A ¦ 1 x audio - line-in - mini-phone stereo 3.5 mm ¦ 1 x audio - line-out - mini-phone stereo 3.5 mm ¦ 1 x microphone / audio - line-in ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x serial - RS-232 - 8 pin mini-DIN ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x video - VGA input - 15 pin D-Sub (DB-15) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Remote control, cable bundle |
| Compliant Standards | AES-128, AES-256, TLS v1.2, TLS v1.0, TLS v1.1 |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Auto-uplink (auto MDI/MDI-X), IPv6 support, IPv4 support |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Polycom RealPresence Resource Manager |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 15 - 80% |
| Audio Input | |
| Type | Microphone - external |
| Input Device | |
| Type | Remote control |
| Connectivity Technology | Wireless |
| Modem | |
| Type | Wired |
| Max Transfer Rate | 6 Mbps |
| Digital Signaling Protocol | H.323, H.281, SIP, H.225, H.239, H.241, H.460, H.243, H.245, H.224 |
| Data Compression Protocol | G.711, G.728, G.722, G.729.A, G.722.1 |
| Video Input | |
| Type | Digital video camera (color) - external |
| Digital Video Capture Resolution | 1920 x 1080 |
| Video Modes | 720/60p, 1080/60p, 1080/30p, 720/30p |
| Features | Acoustic Echo Cancellation (AEC), Poly NoiseBlockAI technology, Poly Acoustic Fence technology |
| Video Output | |
| Type | Codec board - external |
| Max External Resolution | 1920 x 1200 |
| Supported Display Graphics | VGA (640x480), XGA (1024x768), SXGA (1280x1024), SXGA+ (1400x1050), HDTV (1920x1080), HD (1280 x 720), WSXGA+ (1680 x 1050) |
| Digital Video Standard | High-Definition Multimedia Interface (HDMI) |
