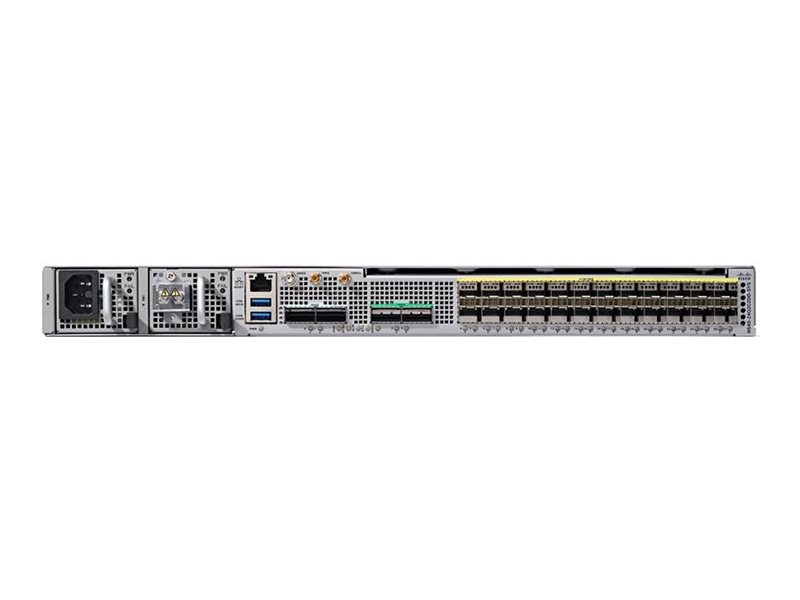

Router 25GbE, 40GbE, 50GbE, 100GbE, 200GbE, 400GbE - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Cisco Network Convergence System 540 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Performance: up to 600 Mpps |
| Network / Transport Protocol | IPv4, IPv6, RSVP, DHCP |
| Routing Protocol | OSPFv2, OSPFv3, IS-IS, IS-ISv6, MP-BGP, ECMP, Bidirectional Forwarding Detection (BFD), VRRP, GRE, MPLS, BGP, PIM-SM, PIM-SSM, IGMPv3, mLDP, MLDv2, mVPN, P2MP-TE, OSPF |
| Remote Management Protocol | ICMP, CLI, SNMP, MIB, NETCONF, gRPC, YANG, SSH, TACACS+, XML, JSON, GPB, OAM |
| Features | PTP, SyncE, layer 2 switching, layer 3 switching, BD, EFP, Q-in-Q tunneling, VLAN Tagging, LAG, STP support, Jumbo Frames support, VRF, IRB, BVI, MPLS LER support, MPLS LSR support, LDP, BGP-LU, RSVP-TE, MPLS traffic engineering, L2VPN support, T-LDP, EVPN, EVPN VPWS, VPLS, LFA, FFR, SRv6 support, SR-TE, Flex-Algo, SR-PCE, TI-LFA, SR-ODN, SR-PM, Multicast routing, QoS, VOQ, WRED, CPP, LPTS, AAA, URPF, LLDP support, IP SLAs, NetFlow, DDoS Protection, ZTP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), ITU-T G.8032, MEF 3.0, ITU-T G.8265.1, ITU-T G.8273.2, ITU-T G.8275.1, ITU-T G.8275.2, ITU-T Y.1731, IEEE 802.1ab (LLDP) |
| Dimensions (WxDxH) | 17.3 in x 11.8 in x 1.7 in |
| Weight | 12.79 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 400 Gigabit Ethernet |
| Performance | Performance: up to 600 Mpps |
| Network / Transport Protocol | IPv4, IPv6, RSVP, DHCP |
| Routing Protocol | OSPFv2, OSPFv3, IS-IS, IS-ISv6, MP-BGP, ECMP, Bidirectional Forwarding Detection (BFD), VRRP, GRE, MPLS, BGP, PIM-SM, PIM-SSM, IGMPv3, mLDP, MLDv2, mVPN, P2MP-TE, OSPF |
| Remote Management Protocol | ICMP, CLI, SNMP, MIB, NETCONF, gRPC, YANG, SSH, TACACS+, XML, JSON, GPB, OAM |
| Authentication Method | Secure Shell (SSH), TACACS+ |
| Features | PTP, SyncE, layer 2 switching, layer 3 switching, BD, EFP, Q-in-Q tunneling, VLAN Tagging, LAG, STP support, Jumbo Frames support, VRF, IRB, BVI, MPLS LER support, MPLS LSR support, LDP, BGP-LU, RSVP-TE, MPLS traffic engineering, L2VPN support, T-LDP, EVPN, EVPN VPWS, VPLS, LFA, FFR, SRv6 support, SR-TE, Flex-Algo, SR-PCE, TI-LFA, SR-ODN, SR-PM, Multicast routing, QoS, VOQ, WRED, CPP, LPTS, AAA, URPF, LLDP support, IP SLAs, NetFlow, DDoS Protection, ZTP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), ITU-T G.8032, MEF 3.0, ITU-T G.8265.1, ITU-T G.8273.2, ITU-T G.8275.1, ITU-T G.8275.2, ITU-T Y.1731, IEEE 802.1ab (LLDP), IEEE 1588-2008, ITU-T G.8265.1, ITU-T G.8273.2 Class C, ITU-T G.8275.1, ITU-T G.8275.2, 47 CFR Part 15 Class A, ANSI/UL 60950-1, ANSI/UL 62368-1, AS/NZS CISPR22 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, ETS/EN 300 019 1.2, ETS/EN 300 019 2.3, ETS/EN 300 019 3.2, ETS/EN 300 119 Part 4, ETS/EN 300 753, GR-1089-CORE, GR-63-CORE, GR-63-CORE, Issue 5, ICES-003 Class A, IEC/EN 62368-1, KN 61000-4, KN22 Class A, RoHS 6/6, VCCI Class A, WEEE |
| Processor | 1.5 GHz |
| RAM | 16 GB |
| Hard Drive | 64 GB |
| Built-in Devices | 6 x fans, GNSS receiver |
| Status Indicators | Alarm, status, line synchronization, GNSS, power, fan |
| Expansion / Connectivity | |
| Interfaces | 24 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet - SFP28 ¦ 2 x 40Gb Ethernet / 100Gb Ethernet - QSFP28 ¦ 2 x 400Gb Ethernet - QSFP56-DD ¦ Console: 1 x RS-232 - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x SuperSpeed USB 3.0 - 9 pin USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 1 year - response time: 10 days |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (max) |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 85% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 12.79 lbs |
