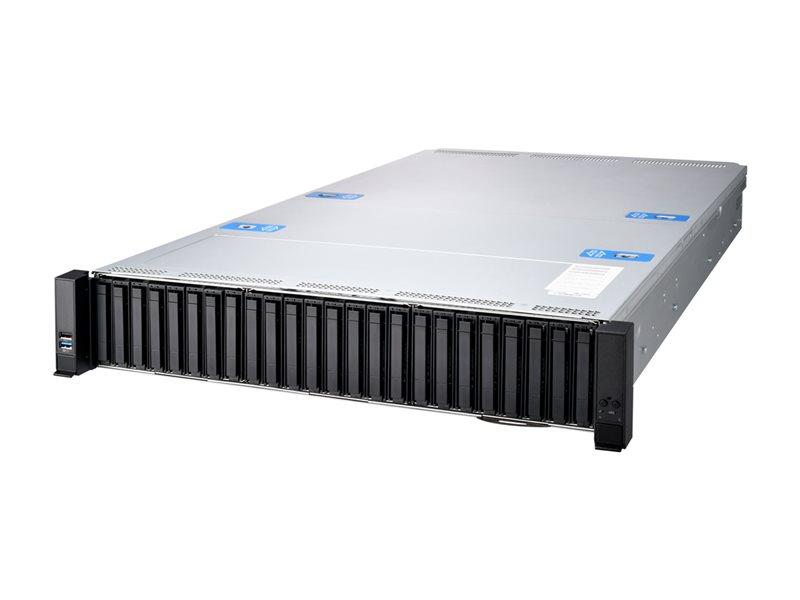

Server - rack-mountable 2U - 2-way - no CPU - SATA - hot-swap 2.5" bay(s) - SSD - AST2600 - Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|
| Product Description | MiTAC R2520G6U2XD - rack-mountable no CPU - SSD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA4710 Socket |
| RAM | 8192 GB (max) - DDR5 SDRAM |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | SSD (hot-swap) - SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe) |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Networking | 1GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.2 in x 30.3 in x 3.4 in |
| Weight | 57.87 lbs |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | 6 x fans |
| Server Scalability | 2-way |
| Internal Bays Qty | 24 |
| Front Accessible Bays Qty | 24 |
| Hot-Swap Bays Qty | 24 |
| Expansion / Connectivity | |
| Slots | 5 PCIe 5.0 x16 ¦ 2 Open Compute Project mezzanine (OCP) 3.0 (Mezzanine) |
| Interfaces | 1 x USB 3.0 ¦ 1 x Mini DisplayPort ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC SDOC Class A, DOC-A, CB, LVD, RCM, VCCI, BSMI, NRTL, IC, sDoC, RoHS 2.0, RoHS |
| RAM | |
| Installed Size | 8192 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MHz |
| Rated Memory Speed | 6400 MHz |
| Slots | 32 (total) / 32 (empty) |
| Networking | |
| Ethernet Controller | Realtek RTL8211F |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Aspeed AST2600 |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-127/200-240 V |
| Power Provided | 2000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | Mini DisplayPort |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | SSD - hot-swap |
| Interface Type | SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 30.3 in |
| Height | 3.4 in |
| Weight | 57.87 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 76.06 lbs |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA4710 Socket |
| Motherboard Name | R520G6SB |
