Switch - L3 - managed - 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ + 2 x 10Gb Ethernet SFP+ - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|

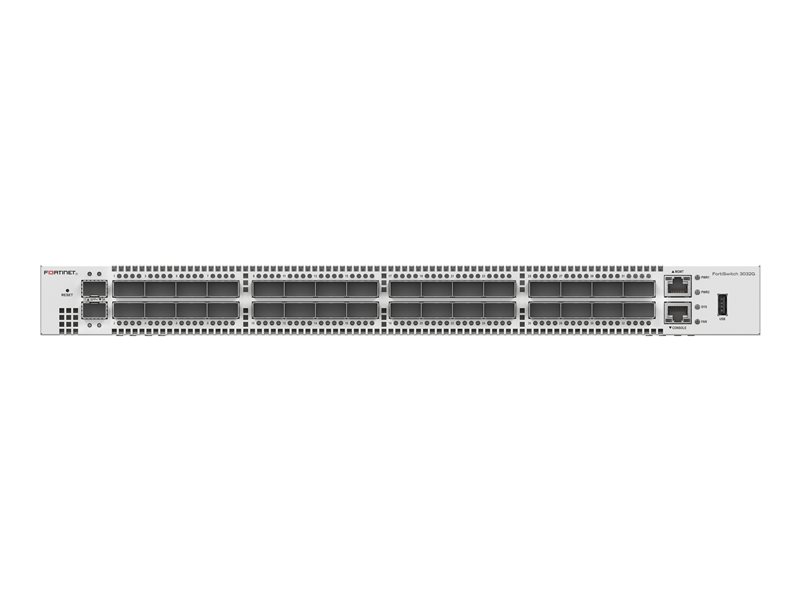

| Product Description | Fortinet FortiSwitch 3032G - switch - 32 ports - managed - rack-mountable |
| Device Type | Switch - 32 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ + 2 x 10Gb Ethernet SFP+ |
| Performance | Switching capacity: 6400 Gbps ¦ Packets per second: 4000 Mpps ¦ Latency: < 1 µs |
| Capacity | Spanning Tree Protocol instances: 64 ¦ Layer 3 IP interfaces (Ipv4): 16000 ¦ Layer 3 IP interfaces (Ipv6): 16000 ¦ Multicast routes: 16000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000 ¦ ACL entries: 2700 ¦ VLANs supported: 4000 ¦ Link aggregation groups: up to 48 ¦ Queues per port: 8 ¦ Packet buffer size: 32 MB |
| MAC Address Table Size | 65K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Static IP routing, VRRP, VRRPv3, RIPng, RIP-2, OSPF, OSPFv2, OSPFv3, PIM-SSM, RIP, BGP, IS-IS |
| Remote Management Protocol | IPv4, IPv6, HTTP, HTTPS, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SFTP, TFTP, Syslog, UDP, TCP/IP, Telnet, SSH, MIB, MIB 2 |
| Features | Automatic topology detection, auto-negotiation, edge port auto-detection, Loop Guard, Private VLAN, RPVST, Storm Control, STP BPDU Guard, STP Root Guard, VLAN mapping, BFD, DHCP relay, DHCP server, ECMP, IGMP proxy, IGMP snooping, 802.1x authentication, MLD proxy, MLD snooping, URPF, dynamic ARP protection, IP-MAC binding, port mirroring, sFlow, sticky MAC, WOL, MLAG, QoS, SNTP support, FTP support, IP multicast, MACsec support, SPAN, RSPAN, ERSPAN, MLD, IPv6 neighbor discovery, reset button |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1p, IEEE 1588 PTP |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 18.1 in x 1.7 in |
| Weight | 18.45 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 32 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet |
| Ports | 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP+ + 2 x 10Gb Ethernet SFP+ |
| Performance | Switching capacity: 6400 Gbps ¦ Packets per second: 4000 Mpps ¦ Latency: < 1 µs |
| Capacity | Spanning Tree Protocol instances: 64 ¦ Layer 3 IP interfaces (Ipv4): 16000 ¦ Layer 3 IP interfaces (Ipv6): 16000 ¦ Multicast routes: 16000 ¦ IPv4 routes: 16000 ¦ IPv6 routes: 8000 ¦ ACL entries: 2700 ¦ VLANs supported: 4000 ¦ Link aggregation groups: up to 48 ¦ Queues per port: 8 ¦ Packet buffer size: 32 MB |
| MAC Address Table Size | 65K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Static IP routing, VRRP, VRRPv3, RIPng, RIP-2, OSPF, OSPFv2, OSPFv3, PIM-SSM, RIP, BGP, IS-IS |
| Remote Management Protocol | IPv4, IPv6, HTTP, HTTPS, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SFTP, TFTP, Syslog, UDP, TCP/IP, Telnet, SSH, MIB, MIB 2 |
| Encryption Algorithm | MD5 |
| Authentication Method | RADIUS, Secure Shell (SSH) |
| Features | Automatic topology detection, auto-negotiation, edge port auto-detection, Loop Guard, Private VLAN, RPVST, Storm Control, STP BPDU Guard, STP Root Guard, VLAN mapping, BFD, DHCP relay, DHCP server, ECMP, IGMP proxy, IGMP snooping, 802.1x authentication, MLD proxy, MLD snooping, URPF, dynamic ARP protection, IP-MAC binding, port mirroring, sFlow, sticky MAC, WOL, MLAG, QoS, SNTP support, FTP support, IP multicast, MACsec support, SPAN, RSPAN, ERSPAN, MLD, IPv6 neighbor discovery, reset button |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1p, IEEE 1588 PTP |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 32 MB |
| Status Indicators | Fan, link/activity, power 1, power 2, system |
| Expansion / Connectivity | |
| Interfaces | 32 x 100Gbit/40Gbit LAN QSFP28/QSFP+ ¦ 2 x 100Gbit LAN SFP+ ¦ 1 x 10/100/1000 Base-T RJ-45 service ¦ 1 x console RJ-45 management ¦ 1 x USB 2.0 Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | 2 rack mount brackets, 2 x mounting rails, 4 rubber feet, 8 mounting screws, 8 screws |
| Cables Included | 1 x console cable ¦ 1 x network cable |
| MTBF | >10 years |
| Compliant Standards | FIPS 140-2, BSMI, RCM, VCCI, UL, CB, RoHS2, FCC |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 18.1 in |
| Height | 1.7 in |
| Weight | 18.45 lbs |
