Advanced - security appliance - with 2 years Secure Upgrade Plus - 40GbE, 100GbE - 2U - rack-mountable
| Main Specifications | |
|---|---|

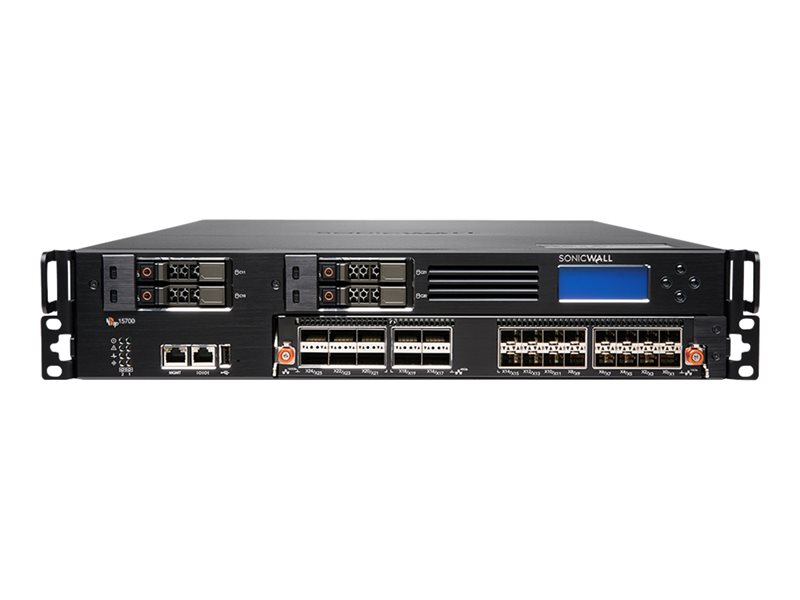

| Product Description | SonicWall Gen 7 NSsp Series 15700 - Advanced - security appliance - with 2 years Secure Upgrade Plus |
| Device Type | Security appliance |
| Bundled Services | 2 years Secure Upgrade Plus |
| Form Factor | Rack-mountable - 2U |
| Hard Drive | 480 GB x 2 |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second |
| Capacity | SPI connections: 40000000 ¦ DPI connections: 40000000 ¦ DPI SSL connections: 4000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ SSL VPN licenses: 256 (maximum 3000) ¦ Single Sign-On (SSO) users: 100000 ¦ Maximum number of access points: 512 ¦ Authenticated users (internal database): 5000 ¦ Virtual interfaces (VLANs): 1024 ¦ Maximum number of tenants: 12 |
| VoIP Protocols | SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5 |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 27 in x 3.5 in |
| Weight | 57.32 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Security appliance |
| Bundled Services | 2 years Secure Upgrade Plus |
| Height (Rack Units) | 2U |
| Built-in Devices | 10 x fans |
| Width | 17.2 in |
| Depth | 27 in |
| Height | 3.5 in |
| Weight | 57.32 lbs |
| Expansion / Connectivity | |
| Interfaces | 6 x 100Gb Ethernet - QSFP28 ¦ 4 x 40Gb Ethernet - QSFP+ ¦ 16 x 10Gb Ethernet - SFP+ ¦ 1 x management - RJ-45 ¦ 1 x console - RJ-45 ¦ 2 x USB 3.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, ICES Class A, EMC Class A, LVD, RoHS, C-Tick, VCCI Class A, MSIP, KCC Class A, UL, cUL, TUV GS, CB, WEEE, REACH, ANATEL, BSMI, ICSA Firewall certified, ICSA Antivirus, FIPS 140-2 |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, ICMP/IP, IPSec, PPPoE, L2TP, DHCP, PPTP, UDP/IP |
| Routing Protocol | BGP, OSPF, RIP-1, RIP-2, static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, CLI, SSH |
| Performance | Firewall throughput: 105 Gbps ¦ Threat prevention throughput: 82 Gbps ¦ Application throughput: 86 Gbps ¦ IPS throughput: 76.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 21 Gbps ¦ VPN throughput: 32 Gbps ¦ Connection rate: 800000 connections per second |
| Capacity | SPI connections: 40000000 ¦ DPI connections: 40000000 ¦ DPI SSL connections: 4000000 ¦ VPN tunnels (site-to-site): 25000 ¦ IPSec VPN clients: 2000 (maximum 10000) ¦ SSL VPN licenses: 256 (maximum 3000) ¦ Single Sign-On (SSO) users: 100000 ¦ Maximum number of access points: 512 ¦ Authenticated users (internal database): 5000 ¦ Virtual interfaces (VLANs): 1024 ¦ Maximum number of tenants: 12 |
| Features | Deep Packet Inspection (DPI), firewall protection, web threat protection, URL filtering, Intrusion Prevention System (IPS), VPN support, Dead Peer Detection (DPD), DHCP relay, DHCP server, DSCP Marking, IPSec NAT-Traversal (NAT-T), LDAP support, NAT support, PAT support, Quality of Service (QoS), RADIUS support, routing, Stateful Packet Inspection (SPI), DDos attack prevention, IPv6 support, IPv4 support, DNS proxy, Jumbo Frames support, VLAN trunking, port mirroring, Inbound Load Balancing, Outbound Load Balancing, bandwidth control, Syslog support, IPFIX, NetFlow, Stateful switchover (SSO), anti-malware protection, Real-Time Deep Memory Inspection (RTDMI), Zero-touch provisioning (ZTP), anti-virus protection, Common Access Card (CAC) reader support |
| Encryption Algorithm | DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES, SHA-1, MD5, ISAKMP, IKE, TLS 1.3 |
| Authentication Method | LDAP, XAUTH authentication, RADIUS, internal user database |
| Compliant Standards | IEEE 802.3, IEEE 802.11e |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 1200 Watt |
| Software / System Requirements | |
| OS Provided | SonicOSX 7.0 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Hard Drive | SSD 480 GB x 2 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 82.23 lbs |
| IP Telephony | |
| VoIP Protocols | SIP, H.323 v1, H.323 v2, H.323 v3, H.323 v4, H.323 v5 |
| IP Telephony Features | VoIP gatekeeper support |
