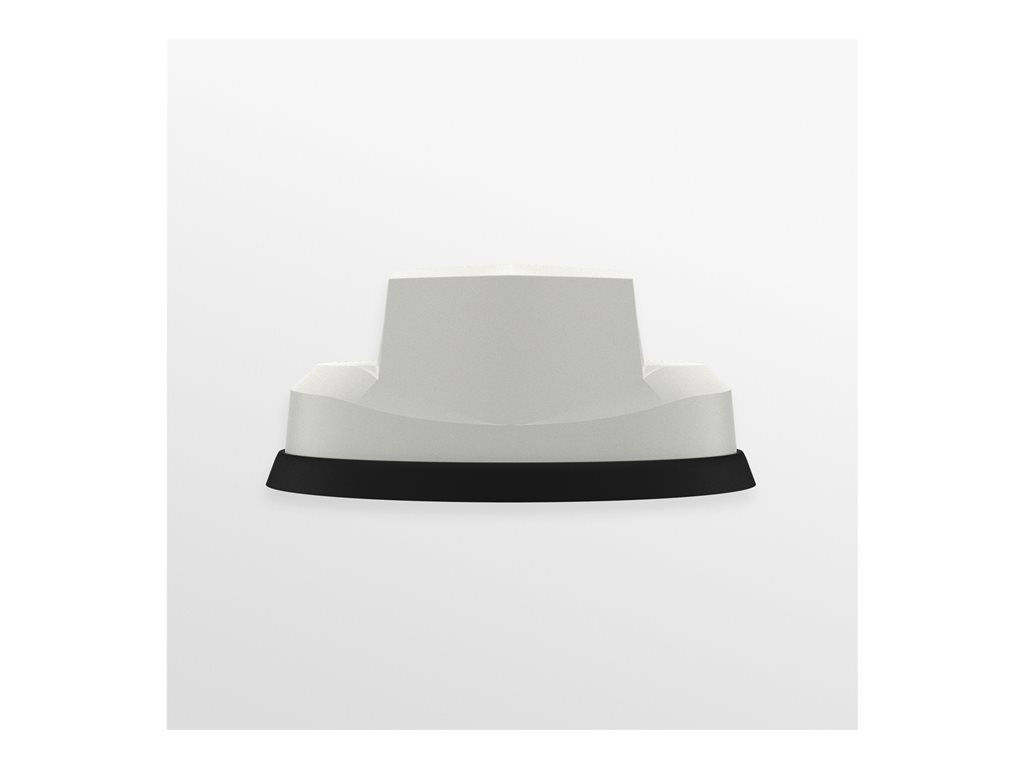

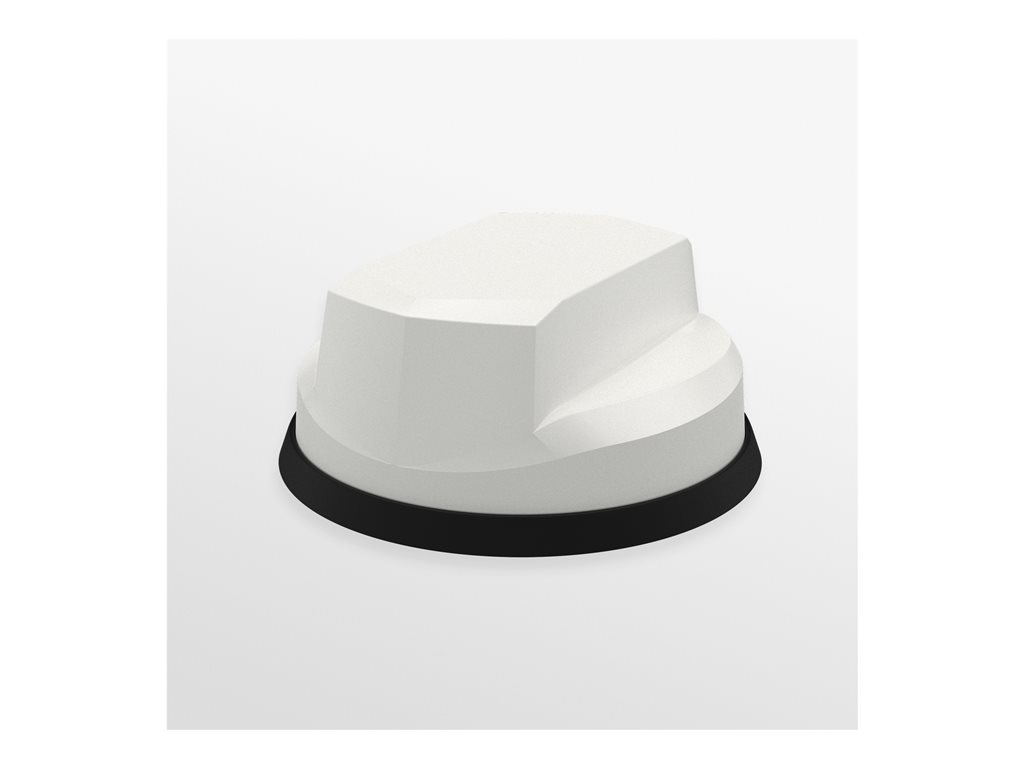

Antenna - radome - navigation, cellular - 9 dBi - omni-directional - panel mountable
| Main Specifications | |
|---|---|
| Product Description | Panorama Antennas LG-IN2456 - antenna |
| Device Type | Antenna |
| Form Factor | Radome |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Panel mountable |
| Dimensions (WxDxH) | 7.1 in x 7.1 in x 3.1 in |
| Color | Signal white |
| Compatibility | GPS, GNSS, LTE, 2G, 3G, 4G, 5G |
| Frequency Range | 617 - 960 MHz, 1.71 - 6 GHz, 1562 - 1612 MHz |
| Gain | 9 dBi |
| Directivity | Omni-directional |
| Features | 2x2 MiMo, IK10, IP69K |
| General | |
| Product Type | Antenna |
| Form Factor | Radome |
| Intended For | Navigation, cellular |
| Antenna Placing / Mounting | Panel mountable |
| Width | 7.1 in |
| Depth | 7.1 in |
| Height | 3.1 in |
| Color | Signal white |
| Miscellaneous | |
| Cables Included | 3 x coax cable - 16.4 ft |
| Antenna | |
| Compatibility | GPS, GNSS, LTE, 2G, 3G, 4G, 5G |
| Frequency Range | 617 - 960 MHz, 1.71 - 6 GHz, 1562 - 1612 MHz |
| Gain | 9 dBi |
| Max Power | 10 watt |
| Directivity | Omni-directional |
| Features | 2x2 MiMo, IK10, IP69K |
| Connector Provided | |
| Type | 2 x antenna - SMA (male) ¦ 1 x GPS antenna - FME (female) |
