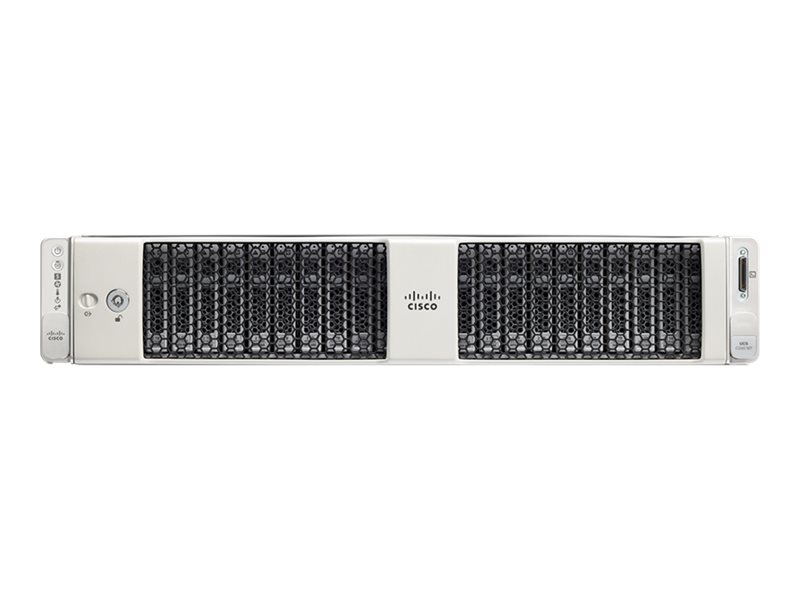

Server - rack-mountable 2U - 2-way - 2 x Xeon Gold 6526Y / up to 3.9 GHz - RAM 192 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - HDD 24 x 600 GB - AST2600 - 10 Gigabit Ethernet - monitor: none
| Main Specifications | |
|---|---|
| Product Description | Cisco Business Edition 7000H (Export Unrestricted) M7 - rack-mountable Xeon Gold 6526Y 2.8 GHz - 192 GB - HDD 24 x 600 GB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Server Scalability | 2-way |
| Processor | 2 x Intel Xeon Gold (5th Gen) 6526Y / 2.8 GHz (up to 3.9 GHz, (16-core) |
| Cache Memory | 75 MB |
| Cache Per Processor | 37.5 MB |
| RAM | 192 GB DDR5 SDRAM - ECC |
| Storage Controller | RAID (SAS 12Gb/s) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 24 x HDD 600 GB (hot-swap) - SAS 12Gb/s - 10000 rpm |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Networking | 10GbE |
| Power | (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 16.9 in x 30 in x 3.4 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | Status LED, 4 control buttons, 6 x hot-swap fans |
| Sensors | Temperature sensor |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Internal Bays Qty | 2 |
| Front Accessible Bays Qty | 24 |
| Hot-Swap Bays Qty | 28 |
| Expansion / Connectivity | |
| Bays | 28 (total) / 4 (free) x hot-swap 2.5" SFF |
| Slots | 3 (total) / 3 (free) x expansion slot (riser card only) ¦ 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 0 (free) x LAN-on-Motherboard (LOM) ¦ 2 (total) / 2 (free) x M.2 Card |
| Interfaces | 1 x VGA - DB-15 (1 rear) ¦ 1 x serial - RJ-45 (1 rear) ¦ 1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 (2 rear) ¦ 2 x USB 3.0 (2 rear) ¦ 1 x KVM (1 in front) |
| Miscellaneous | |
| Included Accessories | Riser card |
| Compliant Standards | TCG Certified, FIPS 140-2, Common Criteria EAL4+, ACPI 6.5, CISPR 24, CISPR 35, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC/EN 60950-1, AS/NZS 62368.1, GB 4943.1-2022, CNS 15598-1:2020, 47 CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR 32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR 32 Class A, EN 61000-3-2, EN61000-3-3, KS C 9832 Class A, EN 300386 Class A, EN55035, EN55024, EN 300386, KS C 9835, IEC/EN 61000-6-1, UL 62368-1, CAN/CSA 62368-1, CAN/CSA-C22.2 No. 62368-1 |
| RAM | |
| Installed Size | 192 GB |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 2800 MHz 5600 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 20 (empty) |
| Features | Registered, single rank |
| Configuration Features | 12 x 16 GB |
| Networking | |
| Ethernet Ports | 10 x Gigabit Ethernet |
| Ethernet Controller | Intel X710-T2L |
| Data Link Protocol | 10 Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 2, SNMP 3, Syslog, SMTP, KMIP, CLI |
| Remote Management Controller | Cisco Integrated Management Controller |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | (50 - 60 Hz) |
| Power Provided | 1200 watt |
| 80 PLUS Certification | 80 PLUS Titanium |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | RAID |
| Controller Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD, SRAID0 |
| Buffer Size | 4 GB |
| Cache Memory | |
| Installed Size | 75 MB |
| Cache Per Processor | 37.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 24 x 600 GB |
| Interface Type | SAS 12Gb/s |
| Spindle Speed | 10000 rpm |
| Dimensions & Weight | |
| Width | 16.9 in |
| Depth | 30 in |
| Height | 3.4 in |
| Processor / Chipset | |
| CPU | Intel Xeon Gold (5th Gen) 6526Y |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | 16-core |
| CPU Qty | 2 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C741 |
