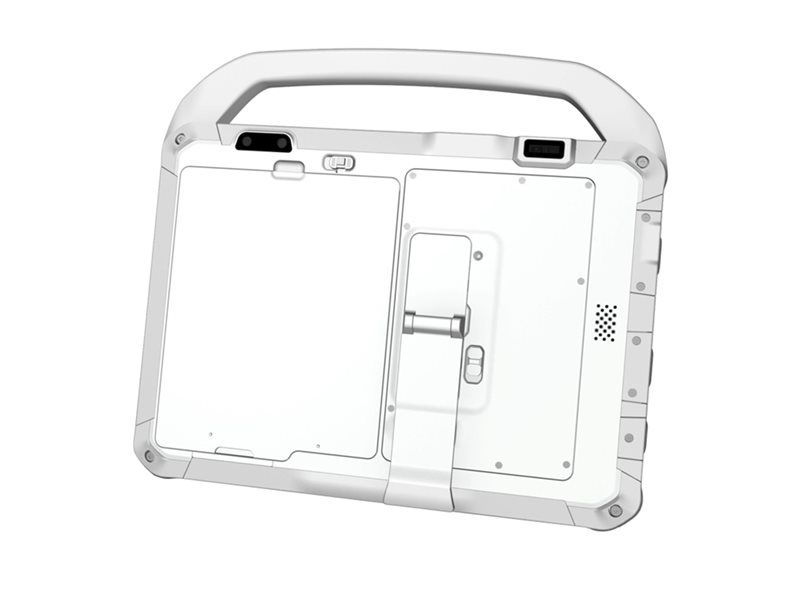

Rugged - tablet - Intel Core Ultra 5 - 225U / up to 4.8 GHz - Win 11 - Intel Graphics - 16 GB RAM - 512 GB SSD - 10.1" touchscreen 1920 x 1080 (Full HD) - Gigabit Ethernet - Wi-Fi 7, Bluetooth
| Main Specifications | |
|---|---|
| Product Description | DT Research Rugged Medical Tablet 302PA/MD - 10.1" - Intel Core Ultra 5 - 225U - 16 GB RAM - 512 GB SSD |
| Product Type | Tablet - no keyboard - rugged |
| Operating System | Win 11 |
| Processor | Intel Core Ultra 5 225U / 1.5 GHz, up to 4.8 GHz / 12 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 12 TOPS |
| Memory | 16 GB LPDDR5 |
| Storage | 512 GB SSD |
| Display | 10.1" touchscreen 1920 x 1080 / Full HD |
| Graphics | Intel Graphics |
| Input Device | 5 programmable buttons |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4, Gigabit Ethernet |
| Dockable | Yes |
| Dimensions (WxDxH) | 10.7 in x 0.8 in x 7.7 in |
| Weight | 2.91 lbs |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Product Type | Tablet - no keyboard - rugged |
| Operating System | Windows 11 |
| Memory | |
| RAM | 16 GB |
| Technology | LPDDR5 SDRAM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Case Material | Polycarbonate ABS, magnesium-aluminum alloy |
| Dockable | Yes |
| Features | Hot-swappable battery, NIST BIOS |
| Included Accessories | Power adapter |
| Compliant Standards | CB, IC, FCC, IP65, RCM, NIST, MIL-STD-810H, ANSI/AAMI ES 60601-1 |
| Storage | |
| Main Storage | 512 GB SSD |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Battery | |
| Capacity | 3800 mAh |
| Battery Details | - 43 Watt |
| Display | |
| Type | 10.1" |
| Touchscreen | Yes |
| Resolution | 1920 x 1080 (Full HD) |
| Widescreen | Yes |
| Image Brightness | 1000 cd/m² |
| Features | Sunlight readable, capacitive touch screen |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Network Interface | Gigabit Ethernet |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 10.7 in x 0.8 in x 7.7 in |
| Weight | 2.91 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 5 225U / 1.5 GHz |
| Max Turbo Speed | 4.8 GHz |
| Number of Cores | 12-core |
| Performance Cores | 2 |
| Efficient Cores | 10 |
| Cache | 12 MB |
| Audio & Video | |
| Graphics Processor | Intel Graphics |
| Camera | Yes |
| Resolution | 13 Megapixel (rear) |
| Sound | Speaker, microphone |
| Input | |
| Type | 5 programmable buttons |
| AC Adapter | |
| Input | AC 100-240 V |
| Output | 19 V, 3.42 A |
| Connections & Expansion | |
| Interfaces Details | USB 3.2 ¦ Headphone output ¦ LAN |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 12 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
