Intel Core Ultra 7 - 255H / up to 5.1 GHz - Win 11 Pro - Arc Graphics 140T - 16 GB RAM - 512 GB SSD SED, TCG Opal Encryption 2, NVMe - 16" 2560 x 1600 (WQXGA) @ 144 Hz - Gigabit Ethernet - Wi-Fi 7, Bluetooth - gentle gray
| Main Specifications | |
|---|---|
| Product Description | ASUS ExpertBook B5 B5605CCA-XS74 - 16" - Intel Core Ultra 7 - 255H - 16 GB RAM - 512 GB SSD |
| Product Type | Notebook |
| Operating System | Win 11 Pro |
| Processor | Intel Core Ultra 7 (Series 2) - 255H / 2 GHz, up to 5.1 GHz / 24 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Memory | 16 GB DDR5 (2 x 8 GB) |
| Storage | 512 GB SSD - SED, TCG Opal Encryption 2, NVMe |
| Display | 16" 2560 x 1600 / WQXGA @ 144 Hz |
| Graphics | Intel Arc Graphics 140T - up to 74 TOPS |
| Keyboard Backlight | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4, Gigabit Ethernet |
| Battery | 3-cell |
| Security | Trusted Platform Module (TPM 2.0) with Microsoft Pluton Secured-core PC (Level 2) Security Chip, fingerprint reader, smart card reader |
| Color | Gentle gray |
| Dimensions (WxDxH) | 14.1 in x 10 in x 0.7 in |
| Weight | 3.9 lbs |
| Environmental Standards | TCO Certified, generation 10, for notebooks, ENERGY STAR Qualified EPEAT Gold, EPEAT Climate+ |
| Repairability Index | 9.7 (out of 10) |
| Manufacturer Warranty | Limited warranty - 1 year - pick-up and return |
| General | |
| Product Type | Notebook |
| Operating System | Windows 11 Pro |
| Memory | |
| RAM | 16 GB (2 x 8 GB) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots Qty | 2 |
| Empty Slots | 0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - pick-up and return |
| Miscellaneous | |
| Color | Gentle gray |
| Case Material | Aluminum |
| Security | Trusted Platform Module (TPM 2.0) with Microsoft Pluton Secured-core PC (Level 2) Security Chip, fingerprint reader, smart card reader |
| Features | MIL-STD-810H tested, BIOS protection, Computrace ready from BIOS, Absolute Persistence 2.0 (Computrace) technology, CSME BIOS redundancy assistance |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington nano security slot |
| Included Accessories | USB-C power adapter |
| Compliant Standards | RoHS, REACH, FSC, Energy Star 8.0 |
| Storage | |
| Main Storage | 512 GB SSD M.2 2280 PCIe 4.0 - Self-Encrypting Drive, TCG Opal Encryption 2, NVM Express (NVMe) |
| Battery | |
| Technology | 3-cell lithium ion |
| Capacity | 63 Wh |
| Display | |
| Type | 16" |
| Resolution | 2560 x 1600 (WQXGA) |
| V-Sync Rate at Max Res. | 144 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 400 cd/m² |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Color Gamut | 139% sRGB |
| Features | Anti-glare, WideView, 85% screen-to-body ratio, 25 ms response rate (typical), 30 ms response rate (max) |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Network Interface | Gigabit Ethernet |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 14.1 in x 10 in x 0.7 in |
| Weight | 3.9 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 2) 255H / 2 GHz |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 16-core |
| Performance Cores | 6 |
| Efficient Cores | 8 |
| Cache | 24 MB |
| Features | Intel Smart Cache, Intel Boot Guard |
| Audio & Video | |
| Graphics Processor | Intel Arc Graphics 140T - up to 74 TOPS |
| Camera | Yes - 1080p |
| Camera Features | Privacy shutter, IR camera, Windows Hello |
| Sound | Dual speakers, microphone |
| Audio Features | Output: Audio by Dirac; Input: AI noise cancelling |
| Input | |
| Type | Keyboard, touchpad |
| Keyboard Backlight | Yes |
| Features | Spill-resistant, chiclet keyboard, 1.5mm travel distance |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 Watt, 20 V, 3.25 A |
| Connections & Expansion | |

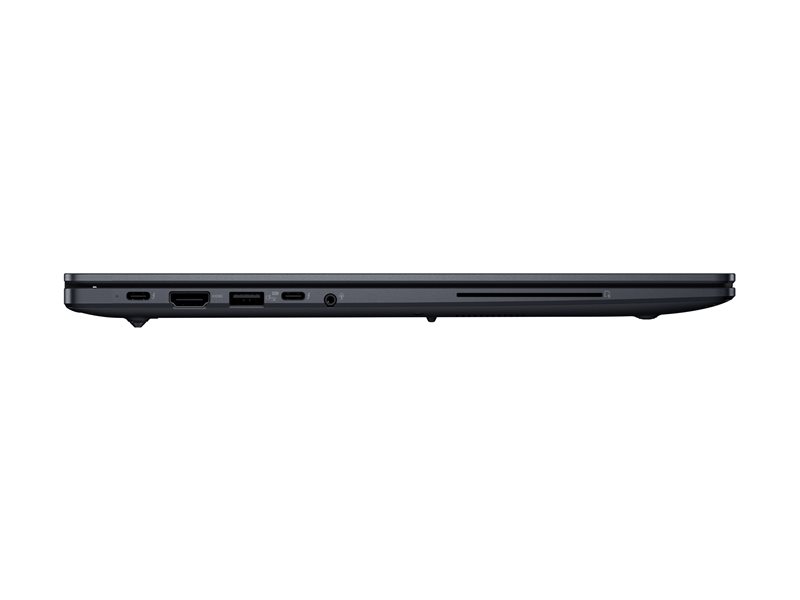

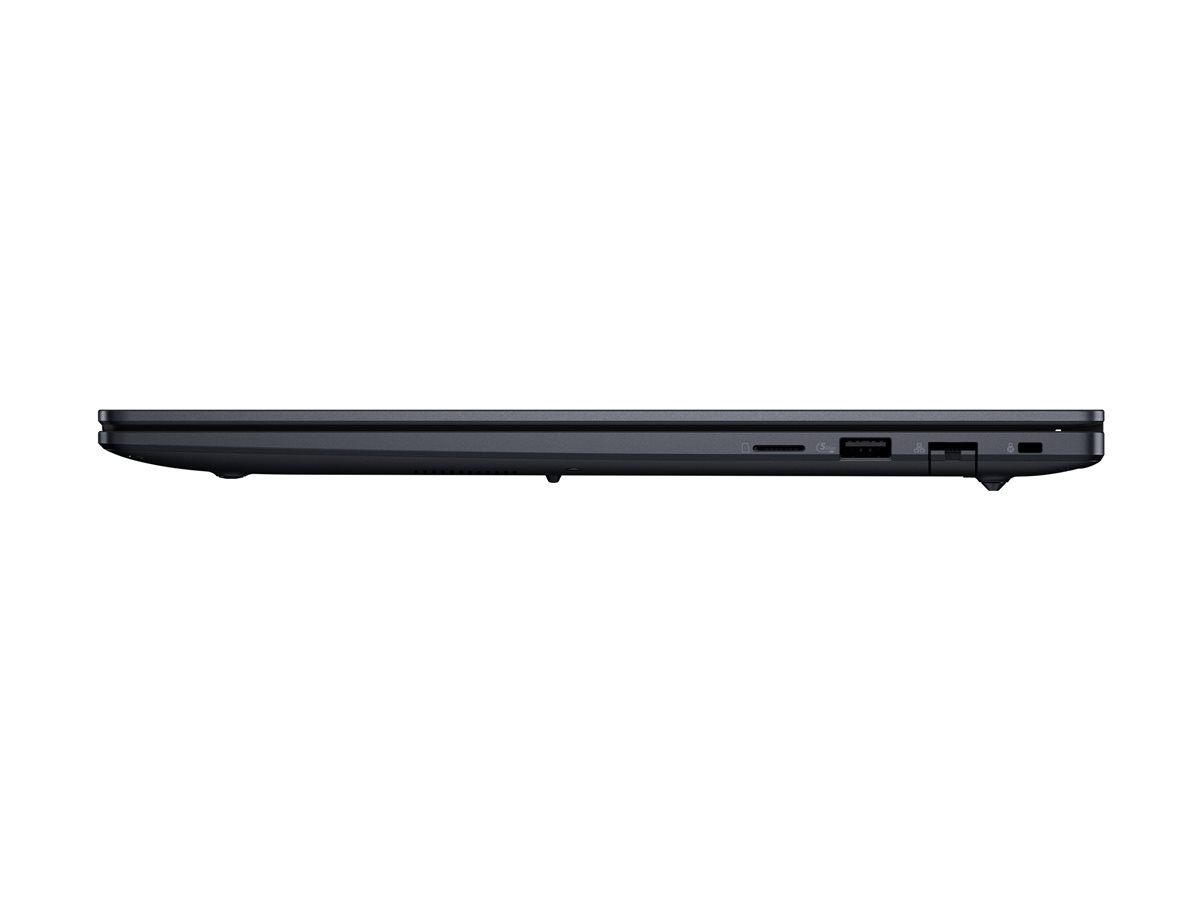

| Interfaces Details | 2 x USB 3.2 Gen 2 ¦ 2 x USB4 (supports Thunderbolt 4, DisplayPort Alt Mode) (Power Delivery) ¦ LAN ¦ Headphone/microphone combo jack ¦ HDMI |
| Memory Card Reader | Yes (microSD) |
| Sustainability Information | |
| Repairability Index | 9.7 (out of 10) |
| TCO Certified | - TCO Certified, generation 10, for notebooks |
| EPEAT Compliant | EPEAT Gold |
| EPEAT Climate+ | Yes |
| ENERGY STAR Certified | Yes |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 96 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
