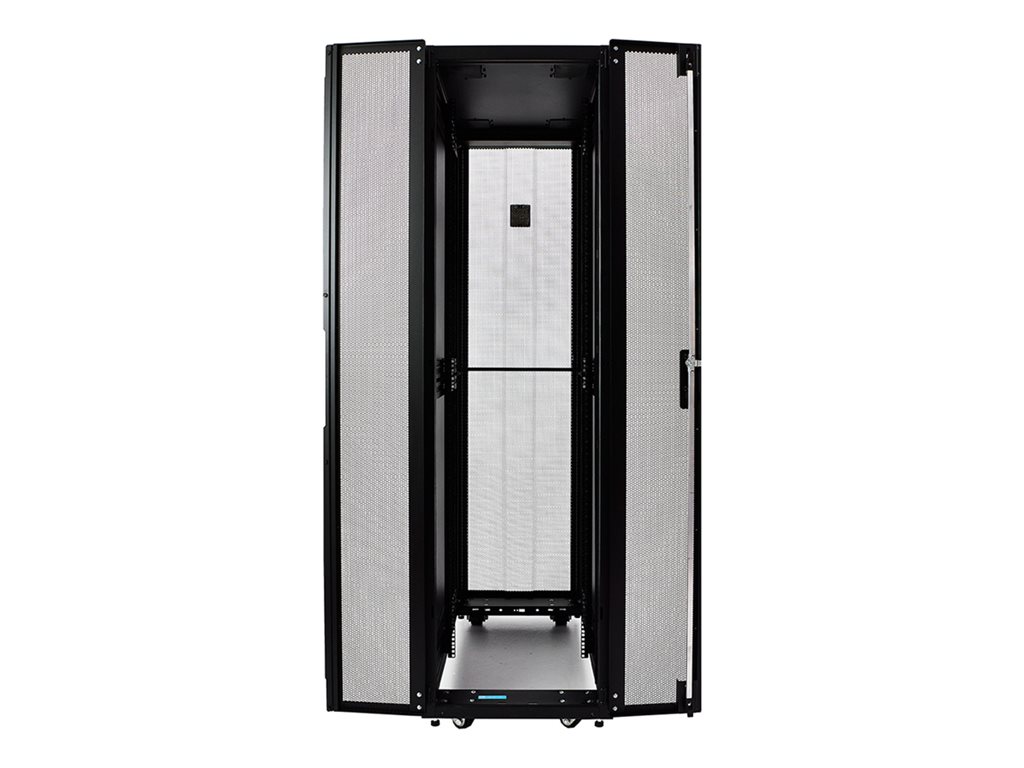

Rack cabinet - black - 42U - 19"
| Main Specifications | |
|---|---|
| Product Description | CPI ZetaFrame - rack - 42U |
| Product Type | Rack |
| Rack Type | Cabinet |
| Package Content | 2 mounting rails, leveling feet, floor attachment brackets, casters, baying kit, PDU bracket, mounting hardware, T25 drive bit, 50 M6 cage nuts, 50 M6 screws |
| Color | Black |
| Rack Size | 19" |
| Height (Rack Units) | 42U |
| Product Material | Welded steel, plastic |
| Dimensions (WxDxH) | 27.6 in x 31.5 in x 79.4 in |
| Features | Perforated front door (78%), double perforated rear doors (78%), grommet-sealed top panel, standard pallet packaging, 120° front door opening, 180° rear door opening, front latch, three-point door lock, reversible, vertical cable management, airflow adjustable, spring-loaded latches side panels, grommet-sealed openings, vertical exhaust duct system |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Product Type | Rack |
| Rack Type | Cabinet |
| Product Material | Welded steel, plastic |
| Package Content | 2 mounting rails, leveling feet, floor attachment brackets, casters, baying kit, PDU bracket, mounting hardware, T25 drive bit, 50 M6 cage nuts, 50 M6 screws |
| Rack Size | 19" |
| Height (Rack Units) | 42U |
| Width | 27.6 in |
| Depth | 31.5 in |
| Height | 79.4 in |
| Max Load Weight | 5000 lbs |
| Color | Black |
| Finish | Powder coat |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 3 years |
| Miscellaneous | |
| Features | Perforated front door (78%), double perforated rear doors (78%), grommet-sealed top panel, standard pallet packaging, 120° front door opening, 180° rear door opening, front latch, three-point door lock, reversible, vertical cable management, airflow adjustable, spring-loaded latches side panels, grommet-sealed openings, vertical exhaust duct system |
| Compliant Standards | ISTA 2B, ASTM D4169, UL 2416, EIA-310 |
