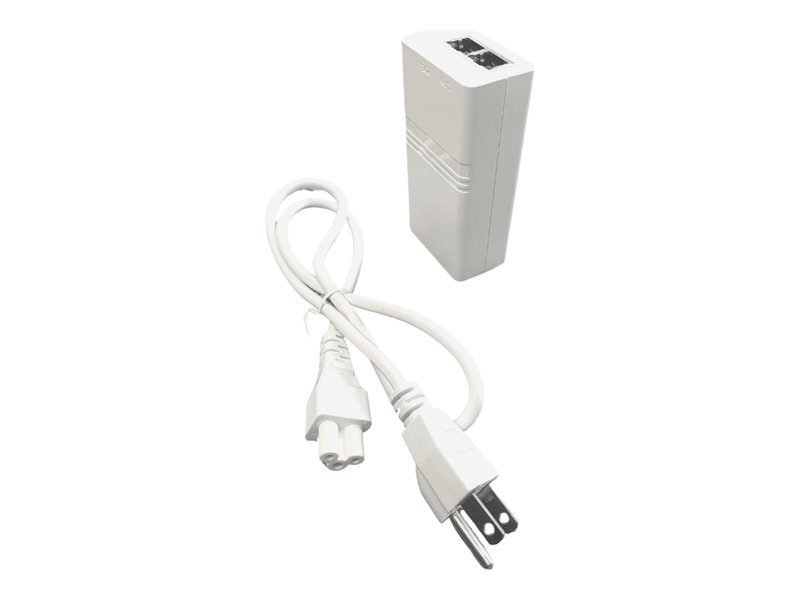

PoE injector - AC 100-240 V - 30 Watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | POE Texas AT-1-52V30W - PoE injector - 30 Watt |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 52 V |
| Power Capacity | 30 Watt |
| Input Connectors | Power IEC 60320 C6 |
| Output connectors | 1 x RJ-45 - 52 V 580 mA 30 W |
| Dimensions (WxDxH) | 4.1 in x 2.2 in x 1.3 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | PoE injector - external |
| Power Over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Power cable - detachable - 3 ft |
| Features | LED indicators, passive PoE Mode B (-7,8 +4,5 pinout) |
| Compliant Standards | IEEE 802.3at, FCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C6 |
| Power Output Connectors Details | 1 x RJ-45 - 52 V 580 mA 30 W |
| Output Voltage | DC 52 V |
| Max Electric Current | 580 mA |
| Power Capacity | 30 Watt |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 2.2 in |
| Height | 1.3 in |
