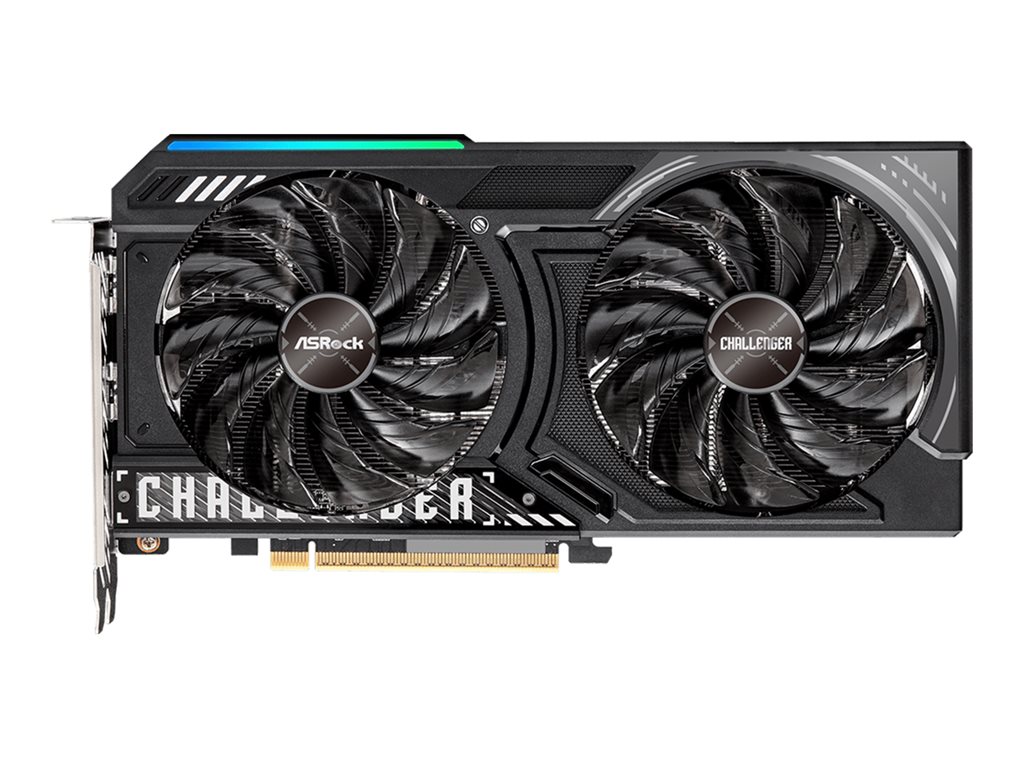

Graphics card - Radeon RX 9060 XT - 16 GB GDDR6 - PCIe 5.0 x16 - HDMI, 2 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | ASRock Challenger Radeon RX 9060 XT 16GB OC - graphics card - Radeon RX 9060 XT - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | AMD Radeon RX 9060 XT |
| Memory | 16 GB GDDR6 |
| Memory Speed | 20 Gbps |
| Boost Clock | 3290 MHz |
| Stream Processors | 2048 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |
| Interfaces Details | 2 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Dimensions (WxDxH) | 1.6 in x 9.8 in x 5.2 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 x16 |
| Graphics Engine | AMD Radeon RX 9060 XT |
| Boost Clock | 3290 MHz |
| Stream Processors | 2048 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |
| Interfaces Details | 2 x DisplayPort ¦ HDMI |
| API Supported | DirectX 12 Ultimate, OpenGL 4.6 |
| Features | AMD RDNA 4 Architecture, Dual Fan Design, 32 compute units, 3rd gen Ray Tracing Cores, 2nd gen AI Accelerators, metal backplate, LED indicator, LED on/off switch, Striped Ring Fan, 0dB Technology, Super Alloy Power technology, RGB Lighting, copper base, nano thermal paste, DrMOS, matte black PCB, Premium 90A Power Choke, High Density Glass Fabric PCB, AMD HYPR-RX technologies, AMD FidelityFX Super Resolution 4 (FSR), AMD Radiance Display Engine, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 20 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Software Included | AMD Radeon Software Adrenalin Edition |
| Compliant Standards | DisplayPort 2.1a, HDCP |
| Width | 1.6 in |
| Depth | 9.8 in |
| Height | 5.2 in |
| Weight | 22.75 oz |
| System Requirements | |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
