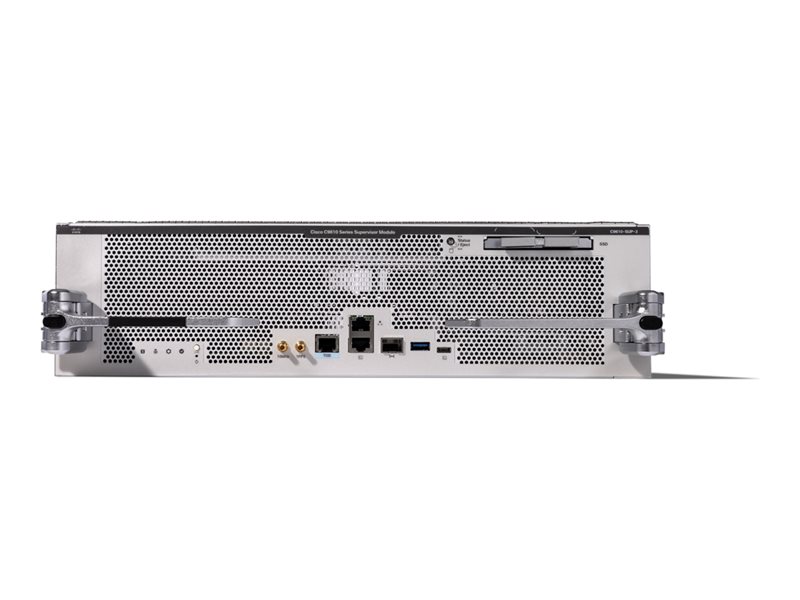

Control processor - redundant - 2.5U - plug-in module
| Main Specifications | |
|---|---|
| Product Description | Cisco Supervisor 3 - control processor - redundant |
| Device Type | Control processor |
| Form Factor | Plug-in module - 2.5U |
| Processor | Intel 2 GHz |
| RAM | 32 GB |
| Flash Memory | 16 GB |
| Performance | Switching capacity: 51.2 Tbps ¦ Switching capacity (full duplex): 25.6 Tbps ¦ Switching capacity (per slot): 6.4 Tbps ¦ Switching capacity per slot (full duplex): 3.2 Tbps ¦ Forwarding rate: 15.6 Bpps |
| Capacity | PVST instances: 4094 ¦ VLAN IDs: 4094 ¦ STP Virtual Ports for PVST: 32000 ¦ STP Virtual Ports for MST: 1000000 ¦ Jumbo frame size: 9216 ¦ ARP entries: 128000 ¦ Switched virtual interfaces (SVIs): 4000 ¦ MAC addresses: 128000 ¦ NDP entries: 128000 ¦ IGMP snooping entries: 16000 ¦ Multicast routes: 32000 ¦ IPv4 QoS ACL scale: 5000 ¦ IPv6 QoS ACL scale: 2500 ¦ IPv4 security ACL scale: 21000 ¦ IPv6 security ACL scale: 21000 ¦ GRE tunnels: 1024 ¦ IPv4 routes: 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 32000 ¦ Buffer capacity (MB): 256 |
| OS Required | Cisco IOS XE 17.18.1 or later |
| Dimensions (WxDxH) | 16.6 in x 18.8 in x 4.3 in |
| Weight | 31.08 lbs |
| General | |
| Device Type | Control processor |
| Height (Rack Units) | 2.5U |
| Width | 16.6 in |
| Depth | 18.8 in |
| Height | 4.3 in |
| Weight | 31.08 lbs |
| Miscellaneous | |
| MTBF | 223,220 hours |
| Compliant Standards | 47 CFR Part 15 Class A, CISPR 24:2010+A1:2015, CISPR 32 Second Edition Class A, CNS13438:2006 Class A, EN 300 386 V1.6.1, EN 55024:2010+A1:2015, EN 55032:2012/AC:2013 Class A, EN 55032:2015 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, ICES-003:2016 issue 6 Class A, KN32:2015 Class A, KN35:2015, TCVN 7189: 2009 Class A, TCVN 7317:2003, V-2/2015.04 Class A, V-3/2015.04 Class A |
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Network / Transport Protocol | IPv4, IPv6 |
| Routing Protocol | Static IP routing, MPLS, STP |
| Remote Management Protocol | CLI, NETCONF, RESTCONF, YANG, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, MIB |
| Performance | Switching capacity: 51.2 Tbps ¦ Switching capacity (full duplex): 25.6 Tbps ¦ Switching capacity (per slot): 6.4 Tbps ¦ Switching capacity per slot (full duplex): 3.2 Tbps ¦ Forwarding rate: 15.6 Bpps |
| Capacity | PVST instances: 4094 ¦ VLAN IDs: 4094 ¦ STP Virtual Ports for PVST: 32000 ¦ STP Virtual Ports for MST: 1000000 ¦ Jumbo frame size: 9216 ¦ ARP entries: 128000 ¦ Switched virtual interfaces (SVIs): 4000 ¦ MAC addresses: 128000 ¦ NDP entries: 128000 ¦ IGMP snooping entries: 16000 ¦ Multicast routes: 32000 ¦ IPv4 QoS ACL scale: 5000 ¦ IPv6 QoS ACL scale: 2500 ¦ IPv4 security ACL scale: 21000 ¦ IPv6 security ACL scale: 21000 ¦ GRE tunnels: 1024 ¦ IPv4 routes: 1000000 ¦ IPv6 routes: 500000 ¦ NetFlow entries: 32000 ¦ Buffer capacity (MB): 256 |
| Status Indicators | Status |
| Features | Access Control List (ACL) support, Flexible NetFlow (FNF), Quality of Service (QoS), IPv4 and IPv6 dual stack, Multicast routing, built-in ASIC (4 x Silicon One E100 and Q200L), Cisco StackWise Virtual, layer 2 switching, SD-Access support, Stateful switchover (SSO), PAT support, NAT support, Ethernet Virtual Private Network (EVPN), In-Service Software Upgrade (ISSU) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.18.1 or later |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | Intel 2 GHz |
| RAM | 32 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
