Switch - L3 - managed - 48 x 10/100/1000 - desktop, rack-mountable
| Main Specifications | |
|---|---|

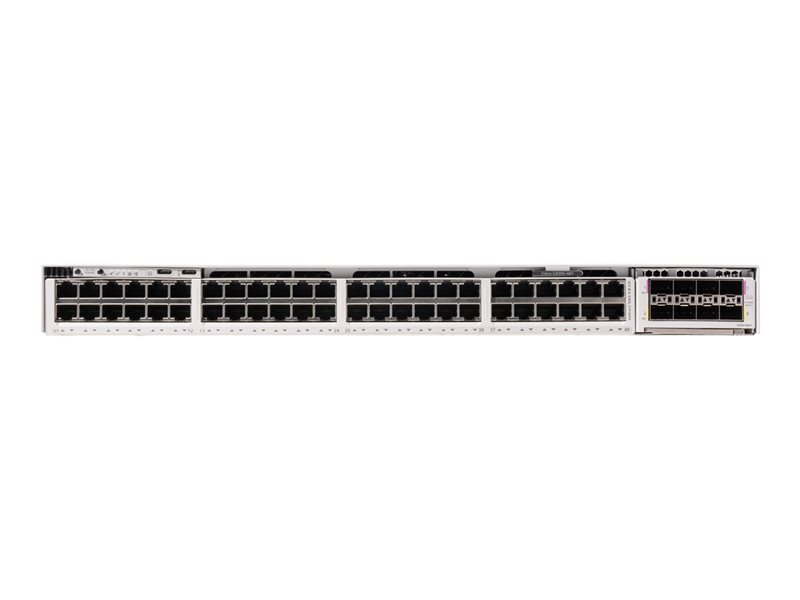

| Product Description | Cisco C9350-48T - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 |
| Performance | Switching capacity: 496 Gbps ¦ Stacking bandwidth: 2096 Gbps ¦ Forwarding rate: 369.024 Mpps ¦ Forwarding rate with stacking: 1559.424 Mpps |
| Capacity | VLAN IDs: 4094 ¦ PVST instances: up to 10000 ¦ STP Virtual Ports for PVST: 16000 ¦ STP Virtual Ports for MST: 100000 ¦ Switched virtual interfaces (SVIs): 2000 ¦ MAC addresses: 64000 ¦ IPv4 routes: 192000 ¦ IPv6 routes: 96000 ¦ ARP entries: 64000 ¦ IPv6 neighbor discovery: 4000 ¦ IGMP snooping groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 4000 ¦ IPv4 QoS ACL scale: 2000 ¦ IPv6 QoS ACL scale: 2000 ¦ IPv4 security ACL scale: 5000 ¦ IPv6 security ACL scale: 25000 ¦ NetFlow entries: 64000 ¦ Packet buffer size: 36 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 9126 bytes |
| Routing Protocol | BGP-4, BGP-6, IS-ISv4, RIP-2, RIPng, EIGRP, EIGRP for IPv6, PIM-SM, OSPFv3 |
| Remote Management Protocol | SSH, CLI, NETCONF, RESTCONF, YANG |
| Features | Cisco StackWise Technology, ARP support, VLAN support, IGMP support, Bandwidth Shaping, BGP-4, Cisco Trust Anchor module, EIGRP Stub Routing, FHS, GIR mode, HQoS, High Availability, image signing, IS-IS, IP-routing, LACP support, MQC, MLD, OSPF, PIM-SM snooping, PIM-SSM snooping, PAgP support, PIM, PVLAN support, QinQ VLAN, QoS, RSTP, secure boot, SMU, SSO, STP support, SPQ, traffic metering, VOQ, VLAN mapping, FNF, IPFIX, out-of-band management, RFID authentication, ZTP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 15.1 in x 1.7 in |
| Weight | 13.8 lbs |
| System Requirements | Cisco IOS XE 17.18.1 or later |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 |
| Performance | Switching capacity: 496 Gbps ¦ Stacking bandwidth: 2096 Gbps ¦ Forwarding rate: 369.024 Mpps ¦ Forwarding rate with stacking: 1559.424 Mpps |
| Capacity | VLAN IDs: 4094 ¦ PVST instances: up to 10000 ¦ STP Virtual Ports for PVST: 16000 ¦ STP Virtual Ports for MST: 100000 ¦ Switched virtual interfaces (SVIs): 2000 ¦ MAC addresses: 64000 ¦ IPv4 routes: 192000 ¦ IPv6 routes: 96000 ¦ ARP entries: 64000 ¦ IPv6 neighbor discovery: 4000 ¦ IGMP snooping groups: 8000 ¦ MLD groups: 4000 ¦ IPv4 routes (Multicast): 8000 ¦ IPv6 routes (Multicast): 4000 ¦ IPv4 QoS ACL scale: 2000 ¦ IPv6 QoS ACL scale: 2000 ¦ IPv4 security ACL scale: 5000 ¦ IPv6 security ACL scale: 25000 ¦ NetFlow entries: 64000 ¦ Packet buffer size: 36 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 9126 bytes |
| Routing Protocol | BGP-4, BGP-6, IS-ISv4, RIP-2, RIPng, EIGRP, EIGRP for IPv6, PIM-SM, OSPFv3 |
| Remote Management Protocol | SSH, CLI, NETCONF, RESTCONF, YANG |
| Authentication Method | Secure Shell (SSH) |
| Features | Cisco StackWise Technology, ARP support, VLAN support, IGMP support, Bandwidth Shaping, BGP-4, Cisco Trust Anchor module, EIGRP Stub Routing, FHS, GIR mode, HQoS, High Availability, image signing, IS-IS, IP-routing, LACP support, MQC, MLD, OSPF, PIM-SM snooping, PIM-SSM snooping, PAgP support, PIM, PVLAN support, QinQ VLAN, QoS, RSTP, secure boot, SMU, SSO, STP support, SPQ, traffic metering, VOQ, VLAN mapping, FNF, IPFIX, out-of-band management, RFID authentication, ZTP |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1x |
| RAM | 16 GB |
| Flash Memory | 18 GB |
| Status Indicators | System, port transmission speed, status |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 1 x USB Type C console ¦ 1 x USB Type C host ¦ 1 x 10/100/1000Base-T RJ-45 management ¦ 1 x console RJ-45 ¦ 2 x network stack device ¦ 1 x USB 3.0 |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Miscellaneous | |
| MTBF | 357,320 hours |
| Compliant Standards | 47 CFR Part 15 Class A, AS/NZS 60950-1:2011, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1-14, CISPR 24:2010+A1:2015, CISPR 32 Second Edition Class A, CNS13438:2006, EN 300 386, EN 300 386 V1.6.1, EN 55024:2010+A1:2015, EN 55032:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010:A1, GB 4943-95, ICES-003 issue 6:2016, IEC 60950-1, IEC 60950-1:2006, KN32:2015 Class A, KN35:2015, NOM-019-SCFI-1998, TCVN 7189: 2009 Class A, TCVN 7317:2003, UL 60950-1 Second Edition, UL 62368-1 Second Edition |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 3 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply) |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.18.1 or later |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
| Humidity Range Storage | 10 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 15.1 in |
| Height | 1.7 in |
| Weight | 13.8 lbs |
