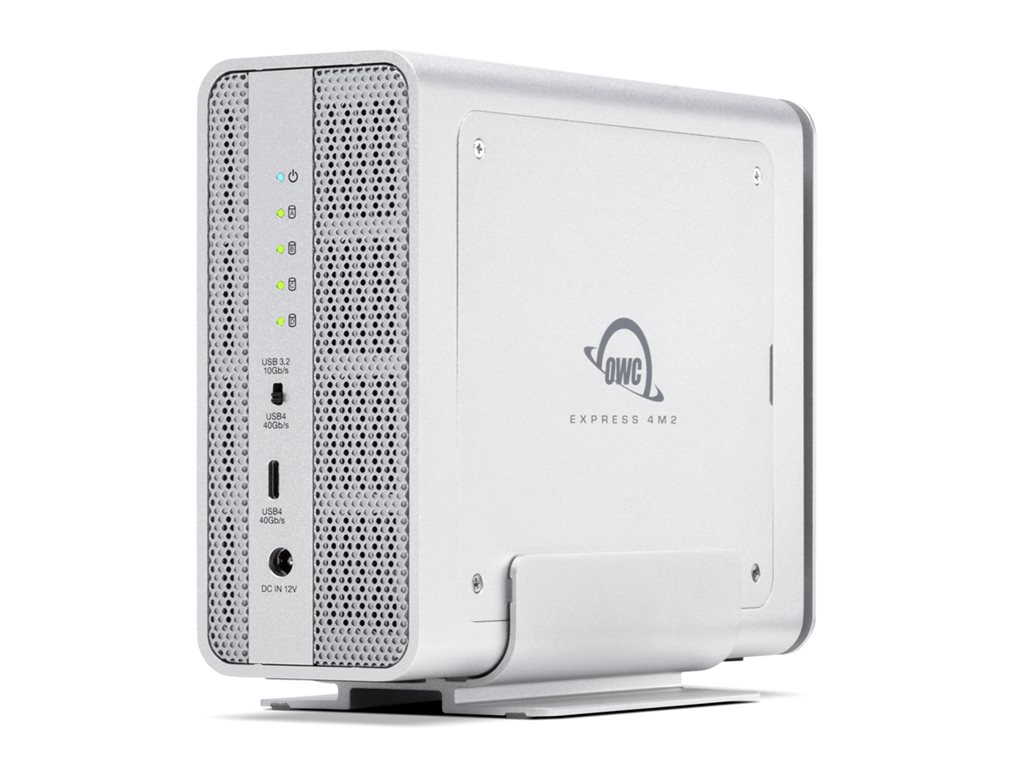

Solid state drive array - 4 bays (PCIe 4.0) - USB 4.0 (external)
| Main Specifications | |
|---|---|
| Product Description | OWC Express 4M2 - SSD array |
| Device Type | Solid state drive array |
| Color | Silver |
| Interface | USB 4.0 |
| Installed Devices / Modules Qty | 4 (max) |
| Supported Drives | PCIe 4.0 |
| Localization | United States |
| Hard Drive | No HDD |
| OS Required | Windows 10 (32/64 bits), Apple macOS Sonoma 14.x, Apple macOS Sequoia 15.x, Apple macOS Tahoe 26.x, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2022, Windows 11 |
| Power | AC 100-240 V 50 - 60 Hz |
| Dimensions (WxDxH) | 2.4 in x 7 in x 5.5 in |
| Weight | 3.97 lbs |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Solid state drive array |
| Enclosure Color | Silver |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x internal - M.2 2230/2242/2280 |
| Interfaces | 1 x USB - 24 pin USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Features | RAID support, aluminum housing, hot plug, RAID 0/1/4/5/10 support, JBOD support, LED indicator |
| Cables Included | 1 x USB-C cable - 2.3 ft ¦ Power cable |
| Compliant Standards | FCC, UKCA, ICES, RCM, VCCI |
| Processor | |
| CPU | 1 x ASMedia ASM-2464PDX |
| Storage | |
| HDD Array External Interface | USB 4.0 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V 50 - 60 Hz |
| Power Provided | 48 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| System Requirements | |
| OS Required | Windows 10 (32/64 bits), Apple macOS Sonoma 14.x, Apple macOS Sequoia 15.x, Apple macOS Tahoe 26.x, Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2022, Windows 11 |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 2.4 in |
| Depth | 7 in |
| Height | 5.5 in |
| Weight | 3.97 lbs |
| Chassis | |
| Supported Devices / Modules Qty | 4 |
| Supported Drives | PCIe 4.0 |
