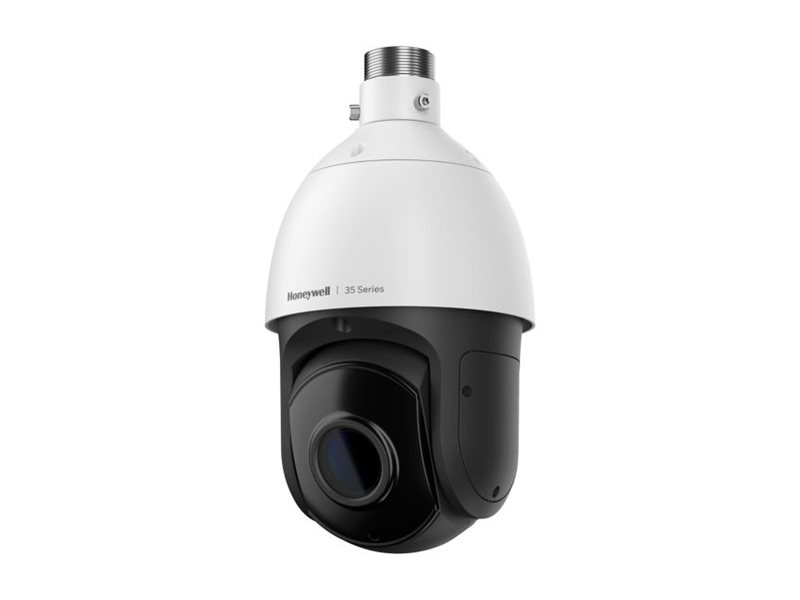

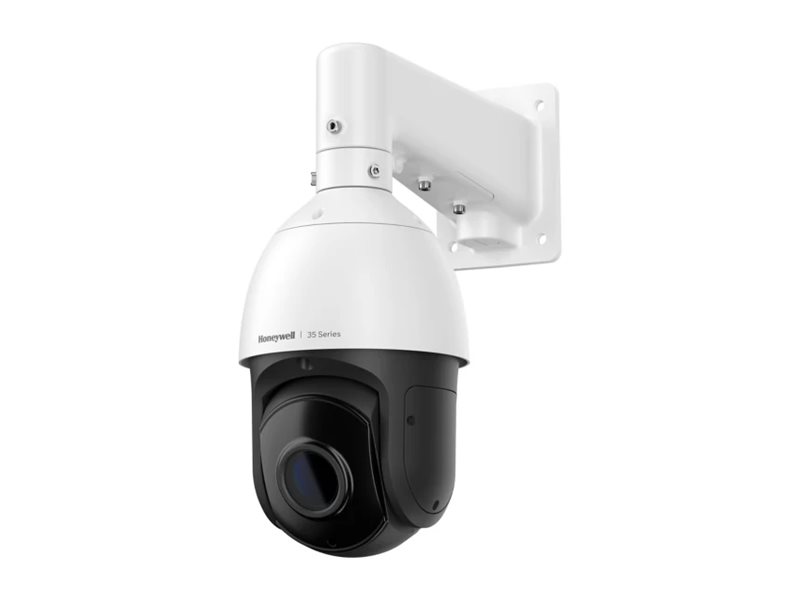

Network surveillance camera - PTZ - dome - color (Day&Night) - 5 MP - 2592 x 1944 - fixed iris - LAN 10/100 - H.265, HEVC, H.264, MJPEG - DC 12 V / PoE Class 0
| Main Specifications | |
|---|---|
| Product Description | Honeywell 35 Series - network surveillance camera - dome |
| Device Type | Network surveillance camera - pan / tilt / zoom - dome |
| Dimensions (WxDxH) | 6.8 in x 6.8 in x 11.5 in |
| Weight | 7.72 lbs |
| Color | RAL 9003, signal white, pantone black |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night - NTSC, PAL |
| Optical Zoom | 30 x |
| Max Resolution | 2592 x 1944 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | CMOS - 1/2.8" - 5 MP |
| Minimum Illumination | 0.005 lux - color - F1.6 - 30 IRE ¦ 0 lux - IR - F1.6 |
| Focal Length | 5.3 mm - 159 mm |
| Lens Iris | F/1.6-4.3 - fixed iris |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | -10 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE Class 0 |
| Features | 50 dB signal-to-noise ratio, Smart IR, auto ICR, Wide Dynamic Range (WDR), Backlight Compensation (BLC), Highlight Compensation (HLC), 2D Noise Reduction Technology, 3D Noise Reduction Technology, privacy masking (up to 4 areas), 3 video streams, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, tampering alarm, Event Notification, e-mail alerts, Region of Interest (ROI), die-cast aluminium housing |
| Manufacturer Warranty | 5-year warranty |
| Environmental Parameters (operating) | -40 °F - 140 °F; 0 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Width | 6.8 in |
| Depth | 6.8 in |
| Height | 11.5 in |
| Weight | 7.72 lbs |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | AES-128, AES-256, IP66, IP67, IK10, FCC Part 15, EN 55032, RCM, UKCA, EN 50130-4, UL, UL/CSA 62368-1, EN 62368-1, RoHS, IEEE 802.3af |
| Color | RAL 9003, signal white, pantone black |
| Power | |
| Power Requirements | DC 12 V / PoE Class 0 |
| Software / System Requirements | |
| OS Required | Windows 10 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 90% (non-condensing) |
| Camera | |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Format | NTSC, PAL |
| Digital Video Format | H.265, HEVC, H.264, MJPEG |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Digital Zoom | 16 |
| Exposure Range | 1/8 sec - 1/32000 sec |
| Minimum Illumination | 0.005 lux - color - F1.6 - 30 IRE ¦ 0 lux - IR - F1.6 |
| Infrared LEDs | 10 |
| Infrared Distance | 492 ft |
| Digital Video Capture Resolution | 2592 x 1944, 2592 x 1520, 1920 x 1080, 1280 x 720, 704 x 576, 704 x 480, 640 x 480, 352 x 288, 352 x 240, 320 x 240 |
| Frame Rate (max) | 30 frames per second |
| Features | 50 dB signal-to-noise ratio, Smart IR, auto ICR, Wide Dynamic Range (WDR), Backlight Compensation (BLC), Highlight Compensation (HLC), 2D Noise Reduction Technology, 3D Noise Reduction Technology, privacy masking (up to 4 areas), 3 video streams, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, tampering alarm, Event Notification, e-mail alerts, Region of Interest (ROI), die-cast aluminium housing |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12.68 lbs |
| Lens Construction | |
| Optical Zoom | 30 x |
| Focal Length | 5.3 mm - 159 mm |
| Lens Iris | F/1.6-4.3 fixed iris |
| Horizontal Field of View (degree) | 2.48 - 56.62 |
| Vertical Field of View (degree) | 1.91 - 42.76 |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Total Pixels | 2592 x 1944 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, SMTP, DHCP, NTP, DNS, QOS, SNMP, UDP/IP, ICMP, ARP, TLS |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | -10 to 90 |
