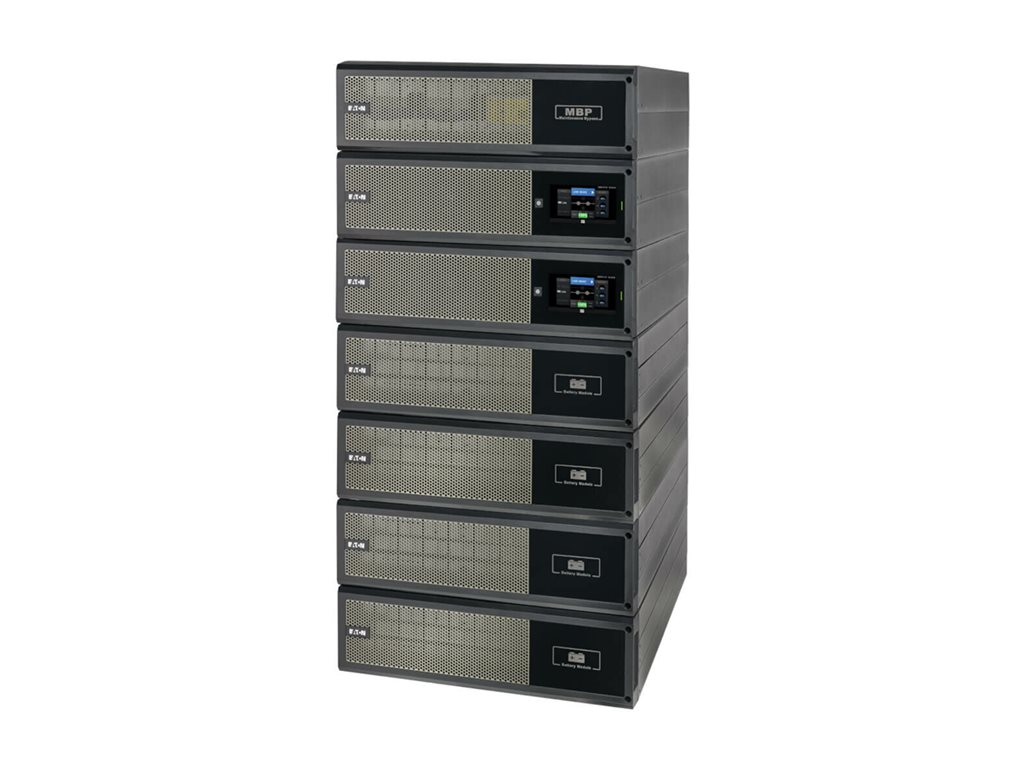

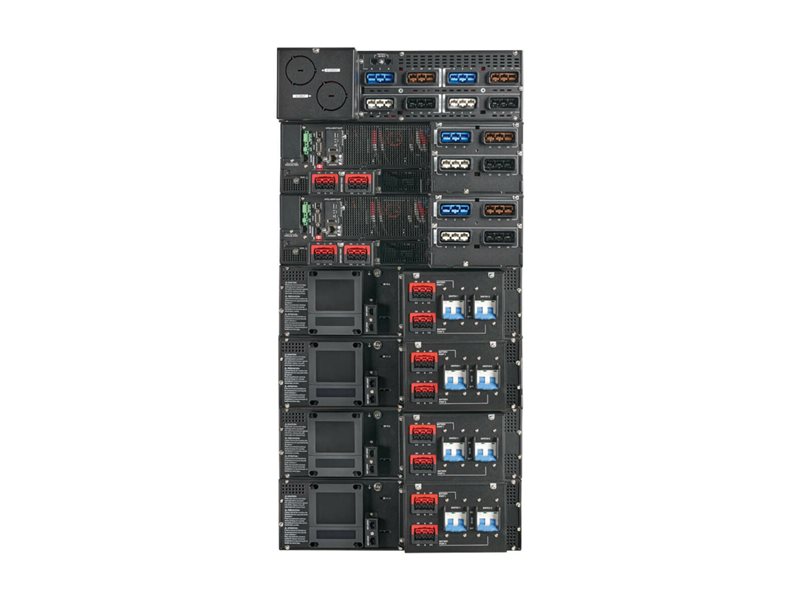

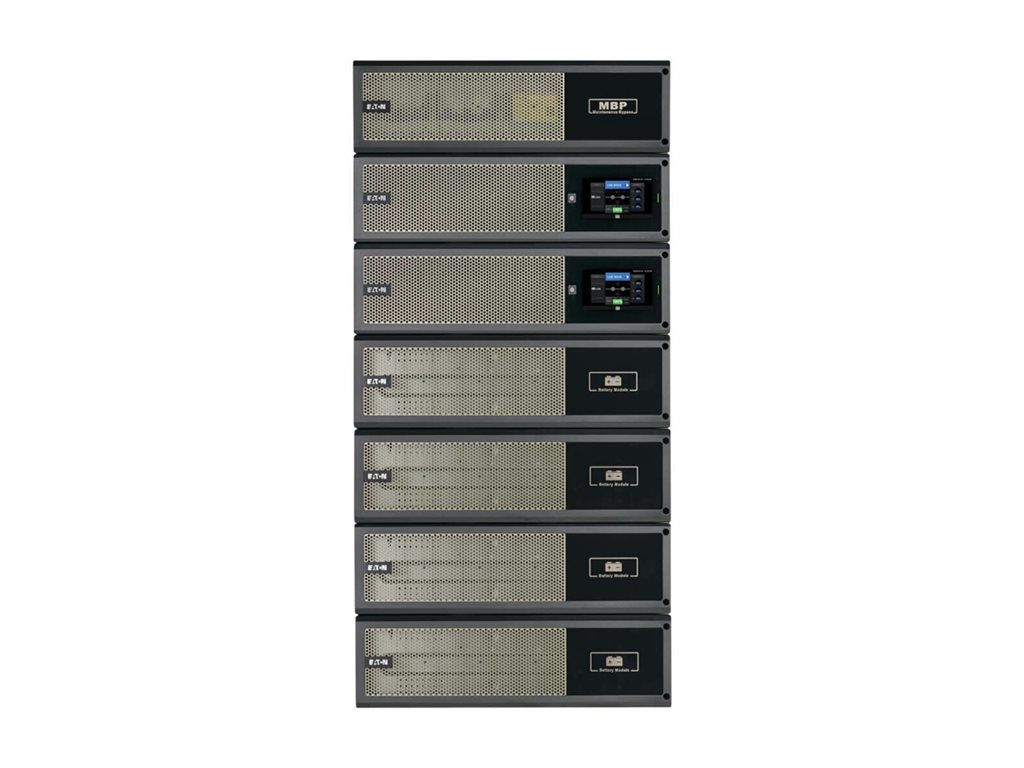

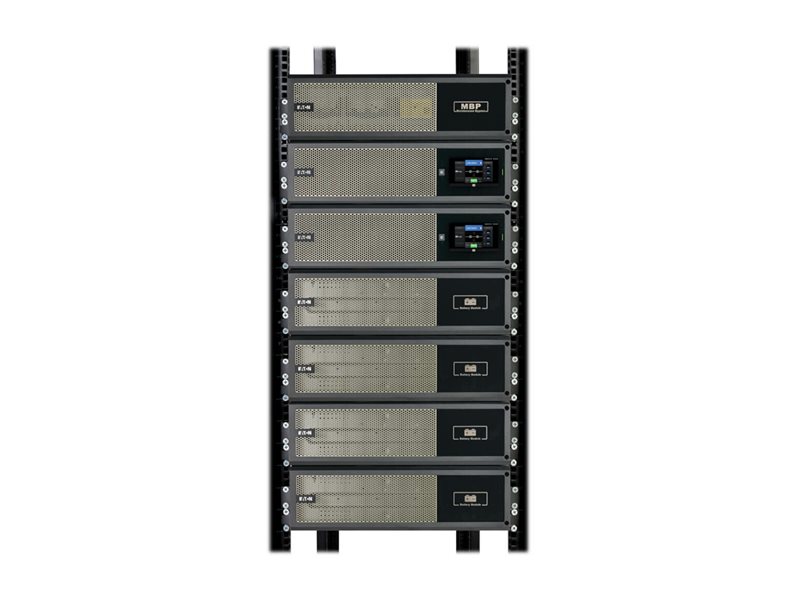

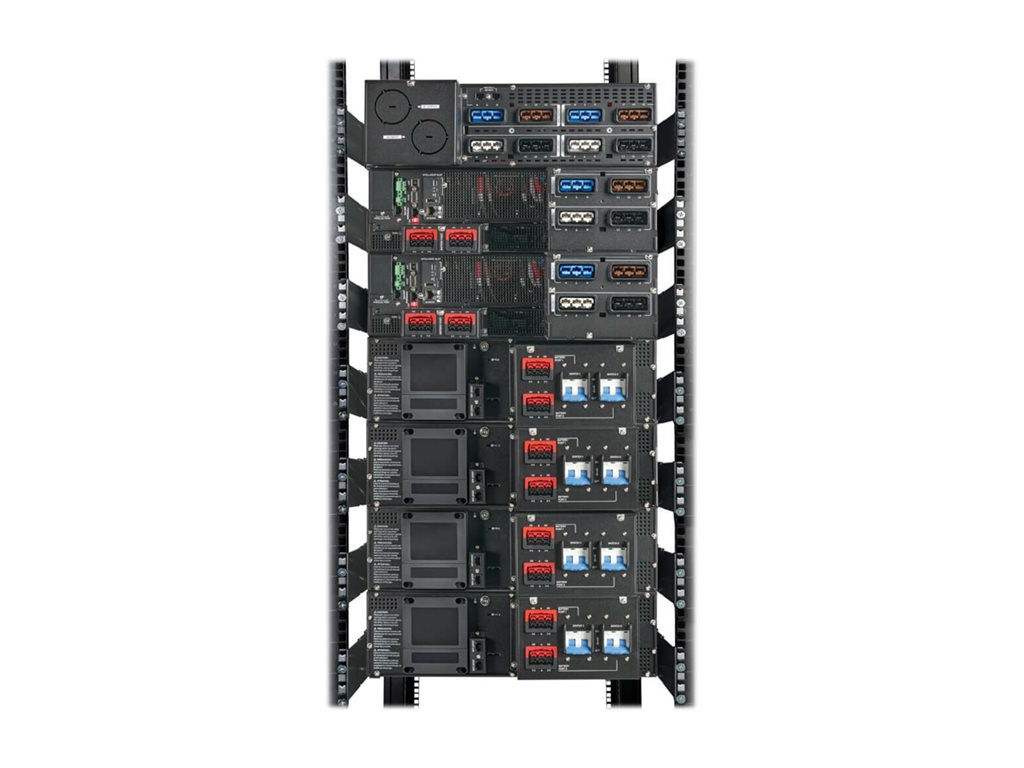

UPS (rack-mountable / external) - AC 380/400/415 V - 15 kW - 3-phase - RS-232, USB, Ethernet 10/100/1000 - output connectors: 1 - 21U
| Main Specifications | |
|---|---|
| Product Description | Eaton 93PX - UPS - 15 kW |
| Device Type | UPS - rack-mountable / external |
| Rack Size | 21U |
| Input Wiring | 3-phase |
| Input Voltage | AC 380/400/415 V |
| Output Voltage | AC 220/230/240/380/400/415 V ± 1% |
| Power Capacity | 15 kW |
| Power Redundancy | Yes |
| Input Connectors | Hardwire |
| Output connectors | 1 x terminal block |
| Battery | Expandable |
| Networking | RS-232, USB, Ethernet 10/100/1000 |
| Included Accessories | External battery pack |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 21U |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x dry contact input ¦ 1 x dry contact output ¦ 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | United States and Canada: limited warranty - 2 years |
| Miscellaneous | |
| Included Accessories | External battery pack |
| Rack Mounting Kit | Included |
| Features | LCD display, built-in maintenance bypass, Enhanced Battery Management (EBM), integrated backfeed protection, pure sinewave output |
| Compliant Standards | EN 61000-4-5, EN 62040-2:2006, EN IEC 62040-1:2019, FCC, ICES-003 issue 7, IEC 61000-4-5, IEC 62040-1:2017, IEC 62040-2:2016, IEC 62040-2-2018, ISTA, RoHS, UL 1778 4th edition |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Sound Emission | 65 dB |
| Battery | |
| Type | Expandable |
| Transfer Time | 0 ms |
| Power Device | |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Input Voltage | AC 380/400/415 V |
| Input Voltage Range | AC 173 - 520 V |
| Frequency Provided | 50/60 Hz |
| Input Wiring | 3-phase |
| Frequency Required | 45 - 55 Hz |
| Input Connectors | Hardwire |
| Power Output Connectors Details | 1 x terminal block |
| Output Voltage | AC 220/230/240/380/400/415 V ± 1% - 50/60 Hz |
| Power Capacity | 15 kW |
| Efficiency | 96% online mode, 98.8% Eco mode |
| Power Factor (PF) | 1.0 |
