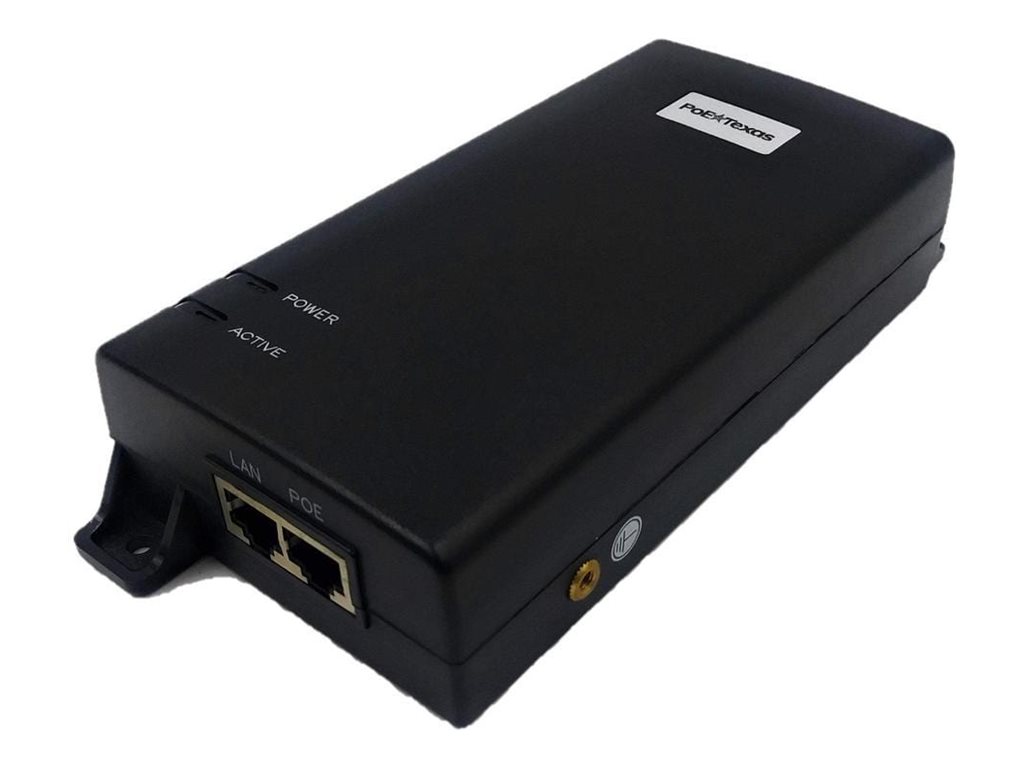

PoE injector (wall mountable) - 55V, dual signature, Gigabit PoE++ (802.3bt), with surge protection - AC 100-240 V - 60 Watt - output connectors: 1
| Main Specifications | |
|---|---|
| Product Description | POE Texas BT-1-55V60W - PoE injector - 55V, dual signature, Gigabit PoE++ (802.3bt), with surge protection - 60 Watt |
| Device Type | PoE injector - wall mountable |
| Power Over Ethernet (PoE) | PoE++ |
| Input Voltage | AC 100-240 V |
| Output Voltage | DC 55 V |
| Power Capacity | 60 Watt |
| Input Connectors | 1 x power IEC C14 |
| Output connectors | 1 x RJ-45 (surge) - 55 V 1.1 A 60 W |
| Dimensions (WxDxH) | 3.3 in x 7.6 in x 1.6 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | PoE injector - wall mountable |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Features | Indoor use, active PoE Mode A (-1,2 +3,6 pinout), passive PoE Mode B (-7,8 +4,5 pinout), 6 kV surge protection |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IP40, UL, FCC |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC C14 |
| Power Output Connectors Details | 1 x RJ-45 (surge) - 55 V 1.1 A 60 W |
| Output Voltage | DC 55 V |
| Max Electric Current | 1.1 A |
| Power Capacity | 60 Watt |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 7.6 in |
| Height | 1.6 in |
