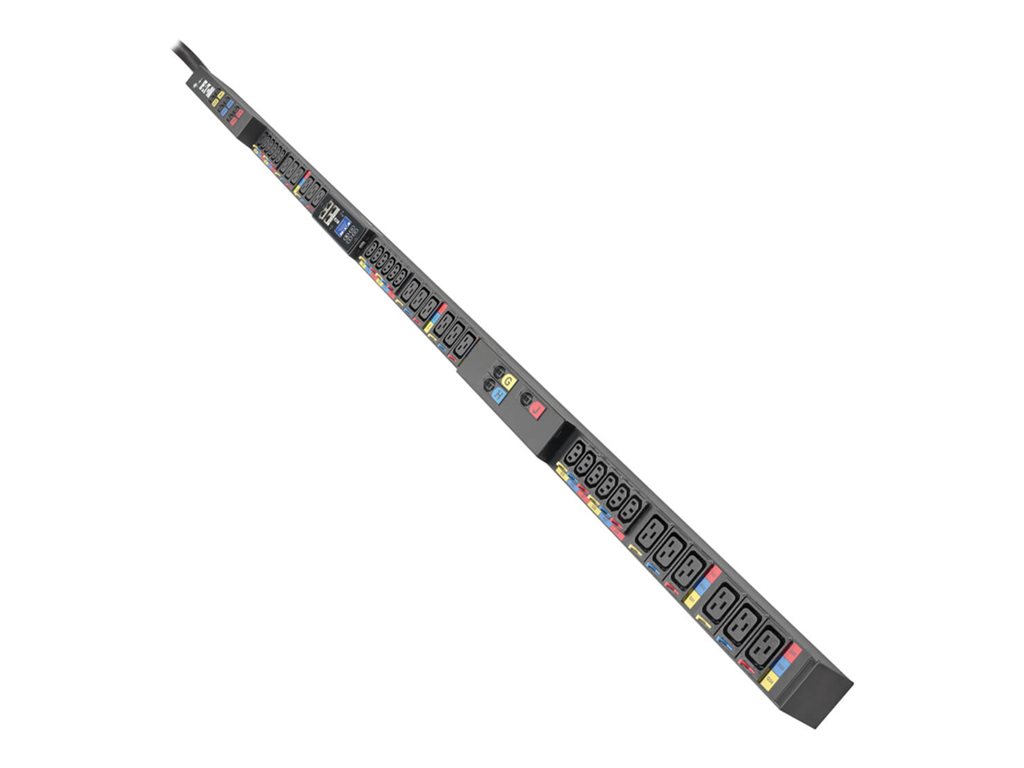

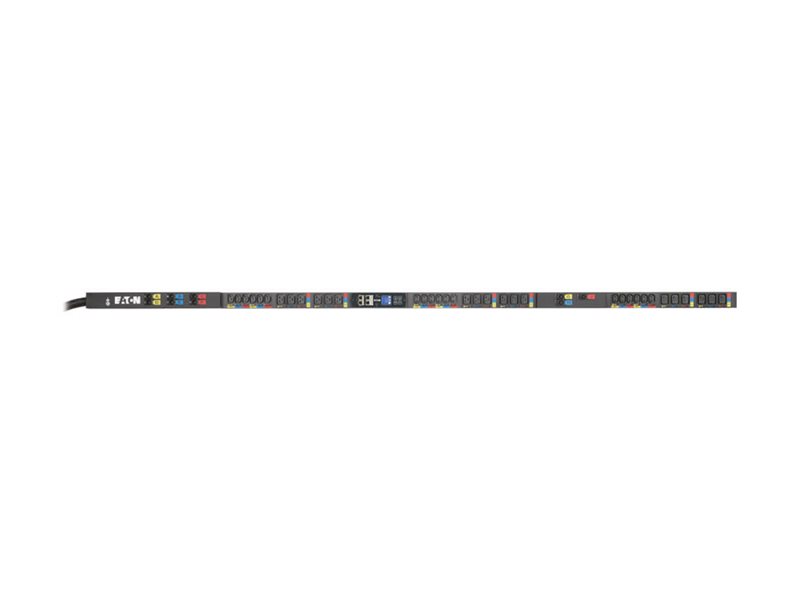

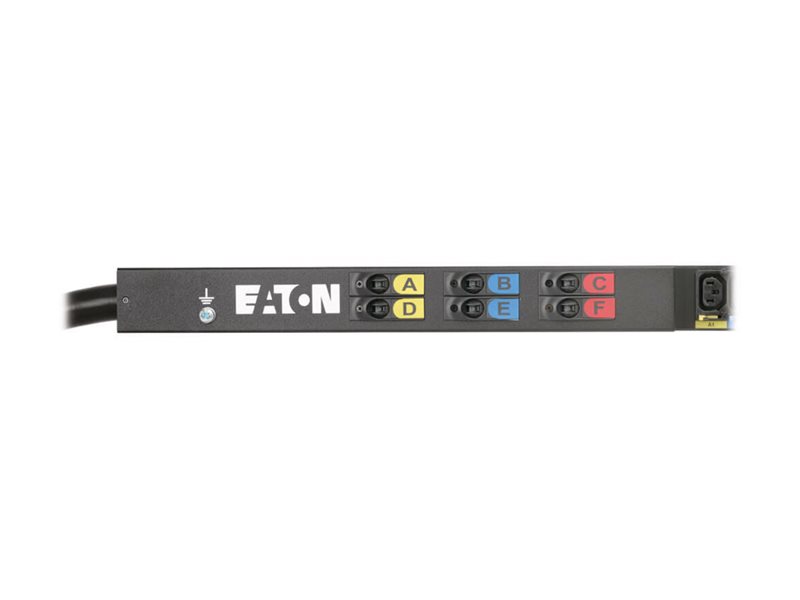

Power distribution unit (rack-mountable) - managed - AC 240/415 V - 20 kW - 3-phase - Ethernet 10/100/1000, USB - input: IEC 60309 560P6W - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 C19) - 0U - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton HDX G4 - power distribution unit - managed - 20 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Input Wiring | 3-phase |
| Input Voltage | AC 240/415 V |
| Power Capacity | 20 kW |
| Input Connectors | 1 x power IEC 60309 560P6W |
| Output connectors | 18 x power IEC 60320 C13 ¦ 18 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP, MQTT, BACnet, HTTP, HTTPS, Modbus TCP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 2.2 in x 83.9 in x 2 in |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable 10 ft |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP, MQTT, BACnet, HTTP, HTTPS, Modbus TCP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Power Device | |
| Input Voltage | AC 240/415 V |
| Input Wiring | 3-phase |
| Input Connectors | 1 x power IEC 60309 560P6W |
| Power Output Connectors Details | 18 x power IEC 60320 C13 ¦ 18 x power IEC 60320 C19 |
| Max Electric Current | 60 A |
| Power Capacity | 20 kW |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 83.9 in |
| Height | 2 in |
