Power distribution unit (rack-mountable) - managed - AC 200-240 V - 36 kW - 3-phase - Ethernet 10/100/1000, USB - input: hardwire - output connectors: 48 (24 x IEC 60320 C13, 24 x IEC 60320 C19) - 0U - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Eaton HDX G4 - power distribution unit - managed - 36 kW - TAA Compliant |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Input Wiring | 3-phase |
| Input Voltage | AC 200-240 V |
| Power Capacity | 36 kW |
| Input Connectors | 1 x hardwire |

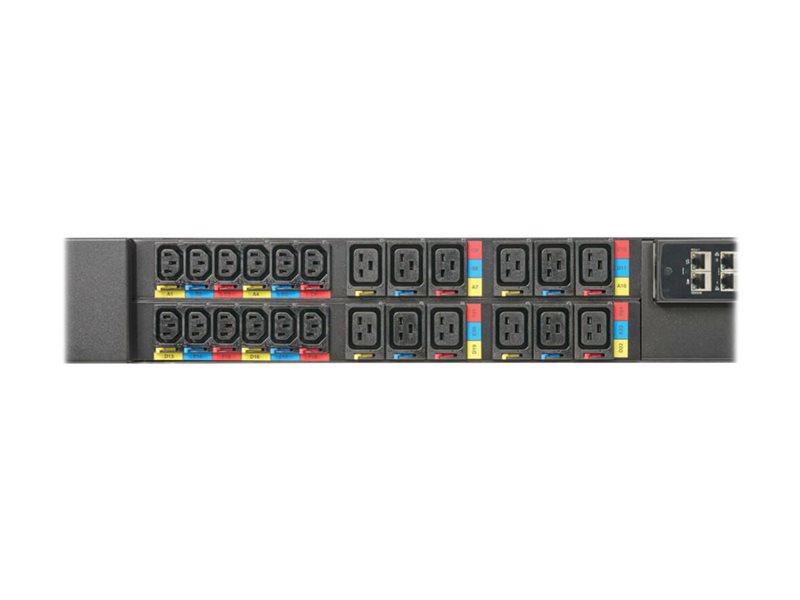

| Output connectors | 24 x power IEC 60320 C13 ¦ 24 x power IEC 60320 C19 |
| Networking | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP, SNMP 1, SNMP 3, Modbus, HTTPS, SSH, MQTT |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 4.1 in x 76 in x 2.5 in |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 |
| Miscellaneous | |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB |
| Remote Management Protocol | SNMP, SNMP 1, SNMP 3, Modbus, HTTPS, SSH, MQTT |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 24 x power IEC 60320 C13 ¦ 24 x power IEC 60320 C19 |
| Max Electric Current | 100 A |
| Power Capacity | 36 kW |
| Dimensions & Weight | |
| Width | 4.1 in |
| Depth | 76 in |
| Height | 2.5 in |
