Hard drive - Enterprise - 12 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 256 MB
| Main Specifications | |
|---|---|

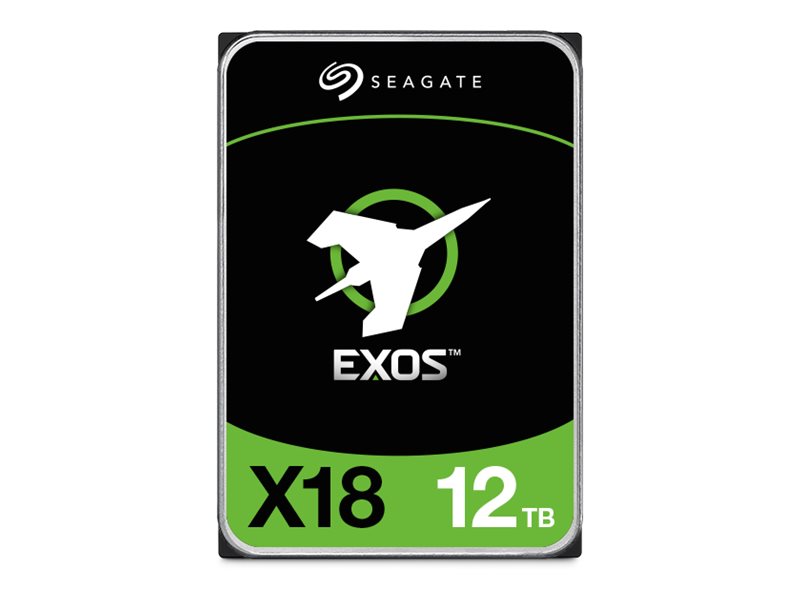

| Product Description | Seagate Exos X18 ST12000NM006J - hard drive - Enterprise - 12 TB - SAS 12Gb/s |
| Type | Hard drive - internal |
| Capacity | 12 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Data Transfer Rate | 1.2 GBps |
| Buffer Size | 256 MB |
| Spindle Speed | 7200 rpm |
| Drive Class | Enterprise |
| Features | PowerChoice, Super Parity, Hot-Plug Support, PowerBalance, advanced format 512e, advanced format 4Kn, Organic Solderability Preservative, Seagate Fast Format, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, Low Halogen |
| Dimensions (WxDxH) | 4 in x 5.8 in x 1 in |
| Weight | 24.16 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Hard drive - internal |
| Capacity | 12 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Buffer Size | 256 MB |
| Features | PowerChoice, Super Parity, Hot-Plug Support, PowerBalance, advanced format 512e, advanced format 4Kn, Organic Solderability Preservative, Seagate Fast Format, Conventional magnetic recording (CMR), Helium Sealed-Drive Design, Low Halogen |
| Width | 4 in |
| Depth | 5.8 in |
| Height | 1 in |
| Weight | 24.16 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RSA 3072 Firmware |
| Power | |
| Voltage Required | 5 - 12 V |
| Power Consumption | 5 Watt (idle) ¦ 9.1 Watt (maximum) ¦ 6.2 Watt (random read/write) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Shock Tolerance (operating) | 50 g @ 2 ms |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (non-operating) | 2.27 g @ 2-500 Hz |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 270 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" |
