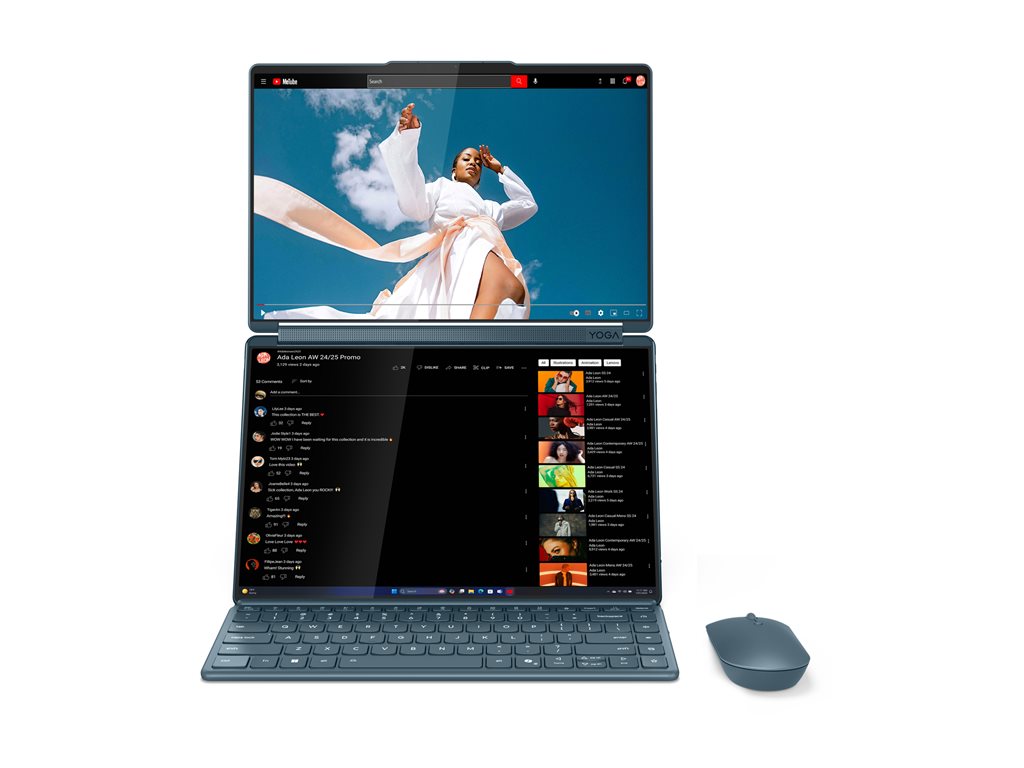

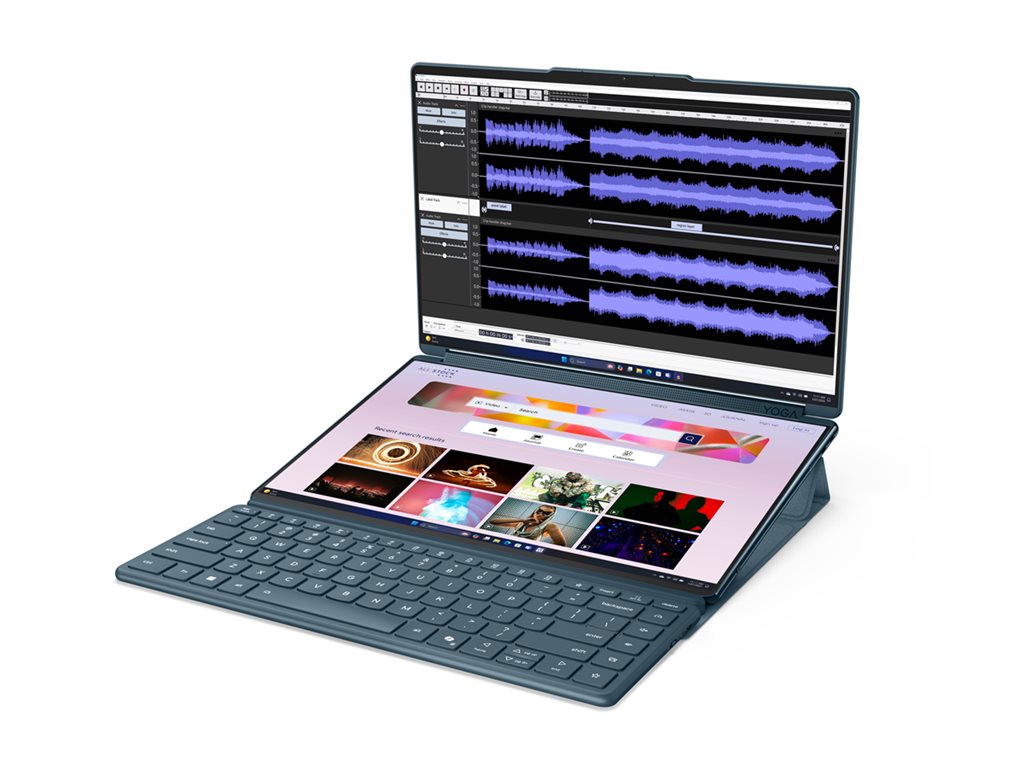

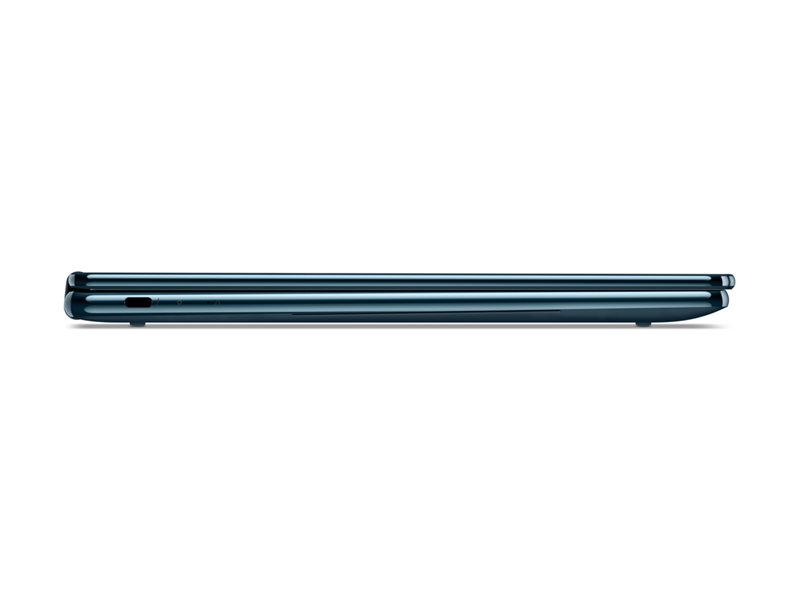

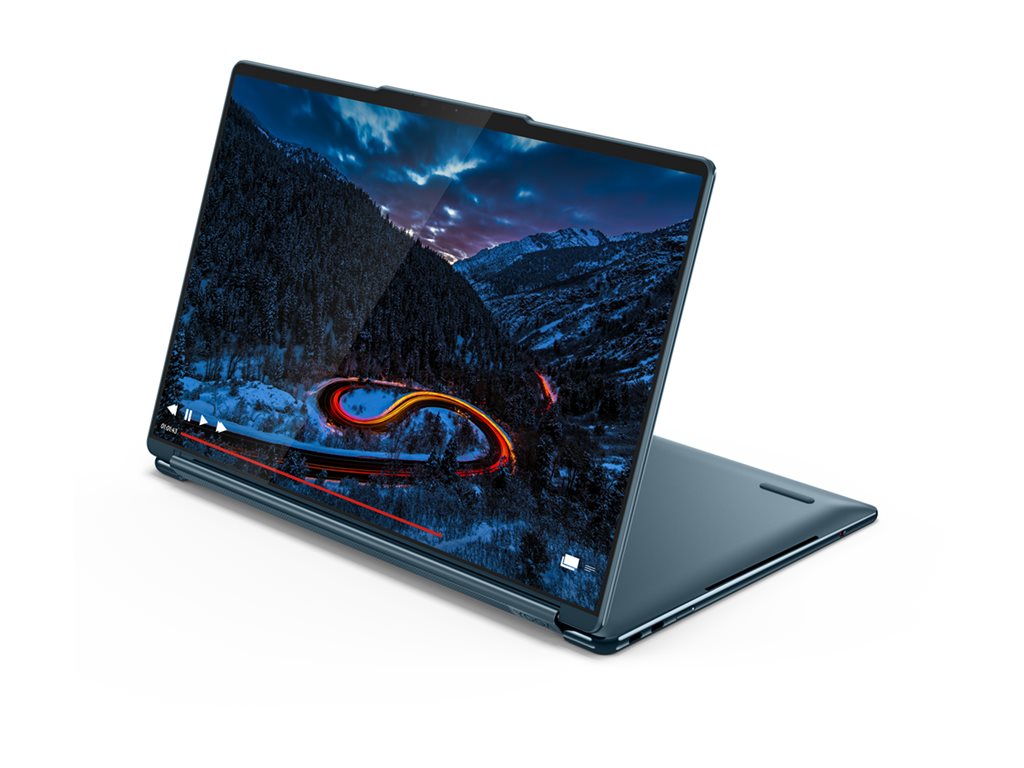

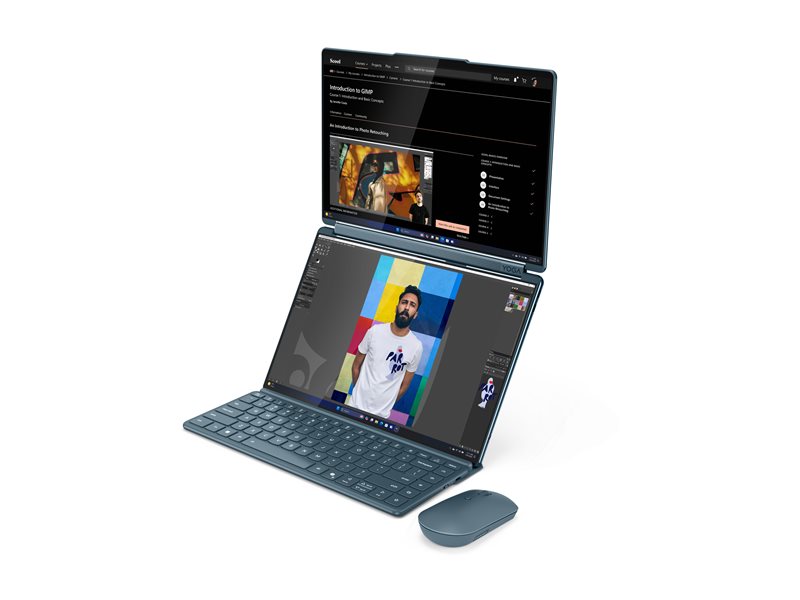

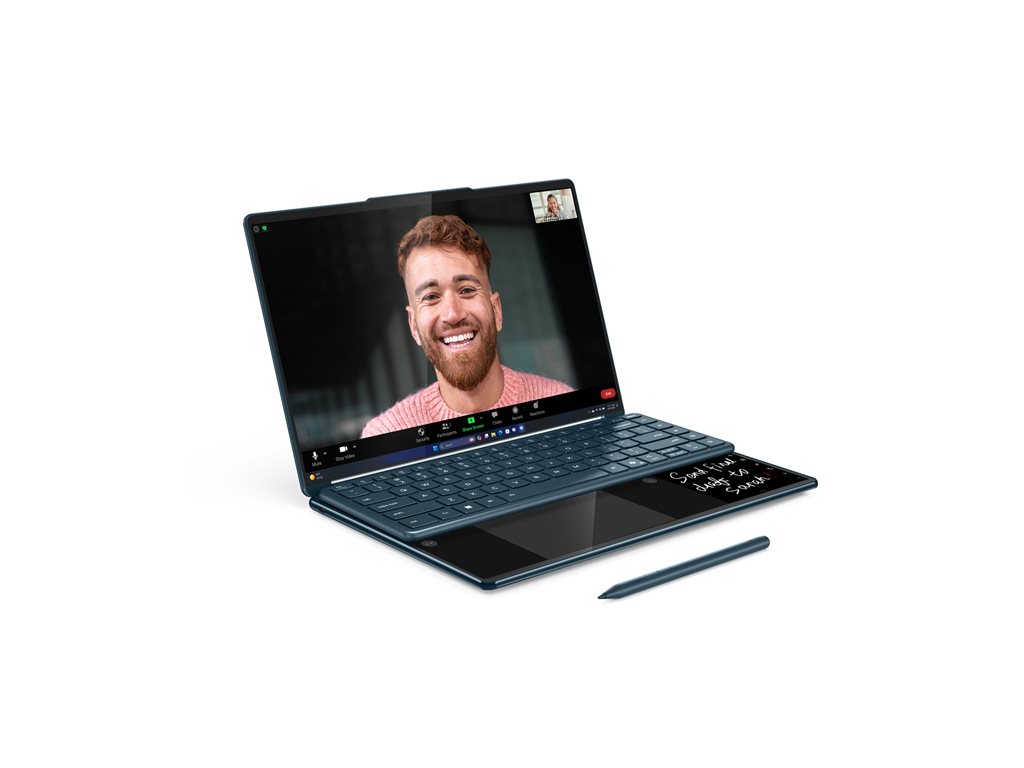

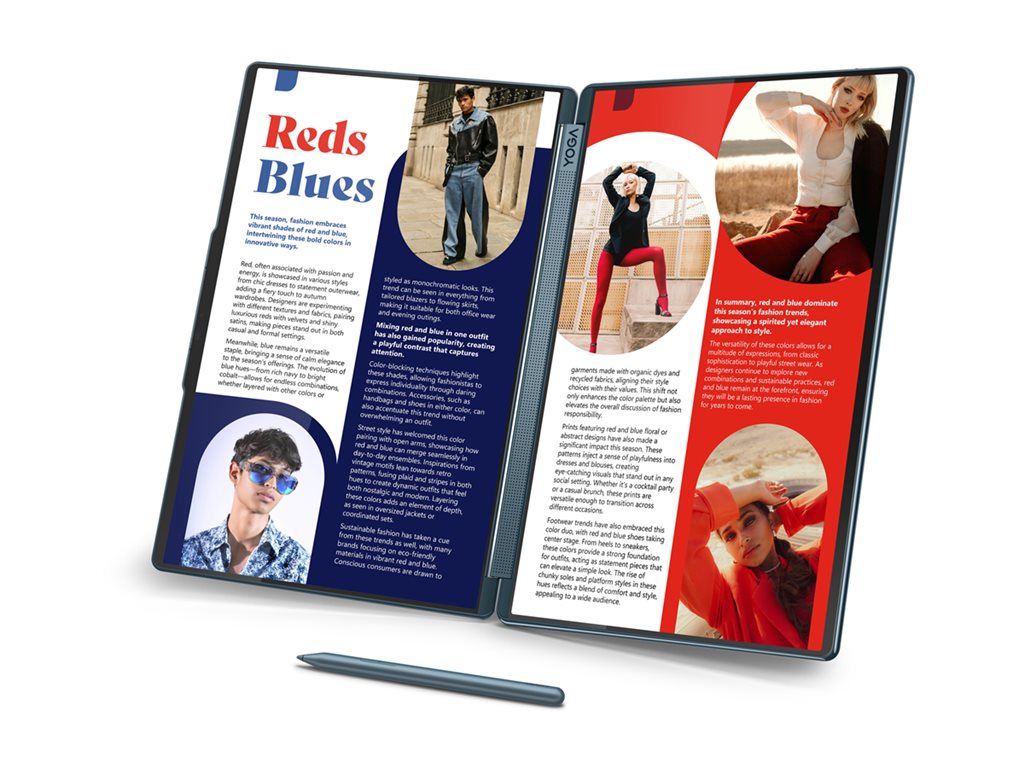

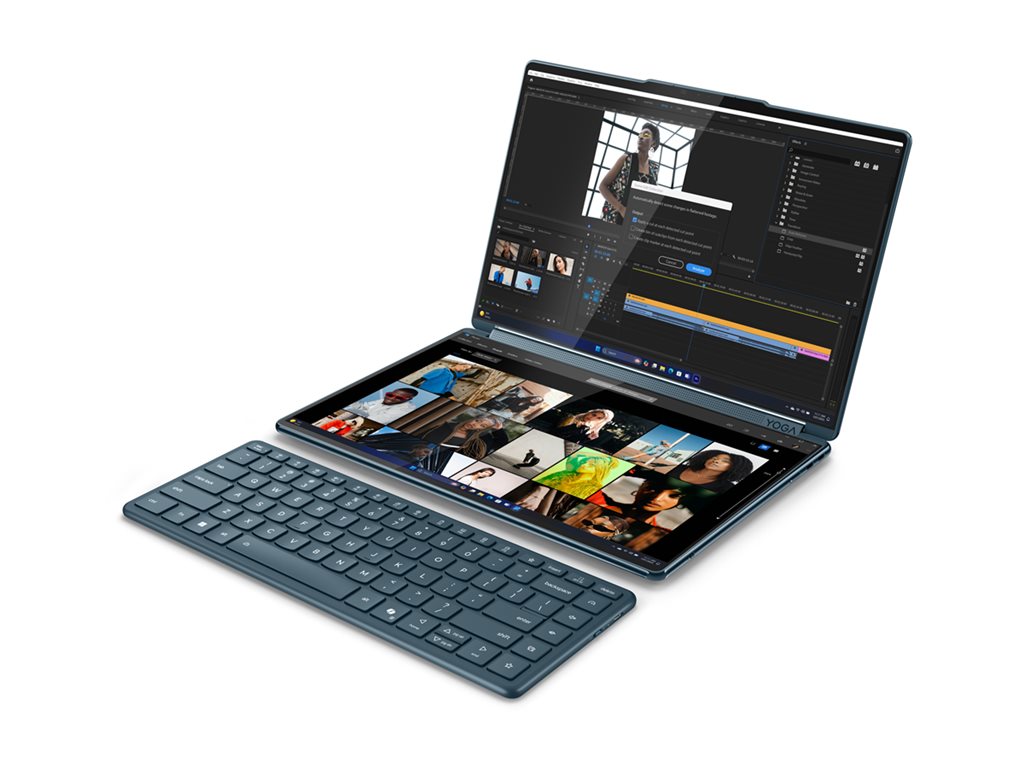

AI PC - tablet - flip design - Intel Core Ultra 7 - 255H / up to 5.1 GHz - Evo - Win 11 Home - Arc Graphics 140T - 32 GB RAM - 1 TB SSD NVMe - 14" OLED touchscreen 2880 x 1800 (WQXGA+) @ 120 Hz - Wi-Fi 7, Bluetooth - tidal teal - kbd: English - with Yoga Slim Mouse, Lenovo YOGA 14-inch Sleeve (Tidal Teal)
| Main Specifications | |
|---|---|
| Product Description | Lenovo Yoga Book 9 14IAH10 - AI PC - 14" - Intel Core Ultra 7 - 255H - Evo - 32 GB RAM - 1 TB SSD - English - with Yoga Slim Mouse, Lenovo YOGA 14-inch Sleeve (Tidal Teal) |
| Product Type | Tablet - AI PC - 2-in-1 - flip design |
| Operating System | Win 11 Home - English |
| Platform Technology | Intel Evo |
| Processor | Intel Core Ultra 7 (Series 2) - 255H up to 5.1 GHz / 24 MB Cache |
| Neural Processor Unit (NPU) | Intel AI Boost - up to 13 TOPS |
| Memory | 32 GB LPDDR5X SDRAM (provided memory is soldered) |
| Storage | 1 TB SSD - NVMe |
| Display | 14" OLED touchscreen 2880 x 1800 / WQXGA+ @ 120 Hz |
| Graphics | Intel Arc Graphics 140T - up to 74 TOPS |
| Input Device | Keyboard, digitizer, digital pen |
| Keyboard | English |
| Keyboard Backlight | Yes |
| Integrated Webcam | Yes |
| Networking | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Tidal teal |
| Dimensions (WxDxH) | 12.4 in x 8.2 in x 0.6 in |
| Weight | 2.69 lbs |
| Localization | Language: English / region: United States |
| Environmental Standards | ENERGY STAR Qualified EPEAT Gold |
| Manufacturer Warranty | Limited warranty - 1 year - pick-up and return |
| Bundled with | Yoga Slim Mouse, Lenovo YOGA 14-inch Sleeve (Tidal Teal) |
| General | |
| Product Type | Tablet - Yes - flip design |
| AI Level | AI PC |
| Operating System | Windows 11 Home - English |
| Bundled with | Yoga Slim Mouse, Lenovo YOGA 14-inch Sleeve (Tidal Teal) |
| Memory | |
| RAM | 32 GB (provided memory is soldered) |
| Technology | LPDDR5X SDRAM |
| Speed | 8400 MT/s |
| Rated Speed | 8400 MT/s |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - pick-up and return |
| Miscellaneous | |
| Color | Tidal teal |
| Case Material | Stainless magnesium |
| Surface Finish | Die casting, painting |
| Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Features | Intel Active Management Technology (iAMT), MIL-STD-810H tested, vibration motor |
| Included Accessories | USB-C slim wall mount power adapter, folio stand, Lenovo Yoga Pen |
| Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 6, CarbonNeutral, Energy-Related Products (ErP) Lot 26, TUV Rheinland Low Blue Light (Hardware Solution), Eyesafe Certified 2.0 |
| Localization | Language: English / region: United States |
| Storage | |
| Main Storage | 1 TB SSD M.2 2242 PCIe 4.0 x4 - NVM Express (NVMe) |
| Software | |
| Software Included | Microsoft Office (Trial), Lenovo AI Now |
| Battery | |
| Technology | Lithium polymer |
| Capacity | 88 Wh |
| Display | |
| Type | 14" OLED |
| Touchscreen | Yes (10-point multi-touch) |
| Resolution | 2880 x 1800 (WQXGA+) |
| V-Sync Rate at Max Res. | 120 Hz |
| Widescreen | Yes |
| Image Aspect Ratio | 16:10 |
| Image Brightness | 750 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Features | Glossy, anti-fingerprint, Low Blue Light technology, Glass Panel, Eyesafe technology, one glass metal mesh (OGM), Dolby Vision, HDR 600 True Black, PureSight display |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4 |
| Features | Dual stream (2x2) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 12.4 in x 8.2 in x 0.6 in |
| Weight | 2.69 lbs |
| Processor / Chipset | |
| CPU | Intel Core Ultra 7 (Series 2) 255H |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 16-core |
| Performance Cores | 6 |
| Efficient Cores | 10 |
| Cache | 24 MB |
| Platform Technology | Intel Evo |
| Features | Integrated memory controller |
| Audio & Video | |
| Graphics Processor | Intel Arc Graphics 140T - up to 74 TOPS |
| Camera | Yes |
| Resolution | 5 Megapixel |
| Camera Features | IR camera, Windows Hello, fixed focus, e-camera shutter |
| Sound | Two woofers, two user-facing tweeters, dual array microphone |
| Codec | Realtek ALC3306 |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Audio Features | Output: Smart Amplifier (AMP) |
| Input | |
| Type | Keyboard, digitizer, digital pen |
| Keyboard Backlight | Yes |
| Keyboard Layout | English |
| AC Adapter | |
| Input | AC 100-240 V (50/60 Hz) |
| Output | 65 watt |
| Connections & Expansion | |
| Interfaces Details | 3 x USB4 (supports Thunderbolt 4, DisplayPort 2.1 Alt Mode) (Power Delivery 3.0, Always On) |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Neural Processor Unit (NPU) | |
| Neural Processor Unit (NPU) | Intel AI Boost |
| NPU Performance Up To (TOPS) | 13 TOPS |
| Total Processor Performance Up To (TOPS) | 96 TOPS |
| AI Datatype Support on NPU | INT8 |
| Sparsity Support | Yes |
| AI Software Frameworks Supported by NPU | DirectML, OpenVINO, WebNN, WindowsML, ONNX RT |
| Windows Studio Effects Support | Yes |
