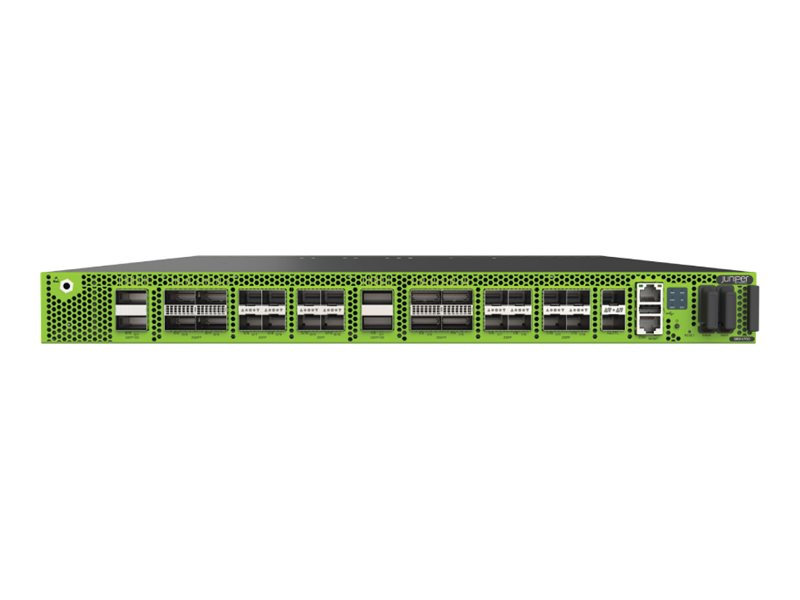

Security appliance - 24 ports - 2.5GbE, 5GbE, 25GbE, 40GbE, 100GbE - front to back airflow - 1U - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks SRX4700 - security appliance - TAA Compliant |
| Device Type | Security appliance |
| Form Factor | Front to back airflow rack-mountable - 1U |
| Ports Qty | 24 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Firewall throughput (1518-byte packet size): 700 Gbps ¦ Firewall throughput (IMIX): 500 Gbps ¦ VPN throughput (1400 B IPSec): 114 Gbps ¦ VPN throughput (IMIX): 91 Gbps ¦ Security performance (CPS): 100 Gbps ¦ Next-generation firewall performance (CPS): 40 Gbps ¦ Advanced threat protection throughput: 13 Gbps ¦ IPsec throughput: 250 Gbps |
| Capacity | Connections per second (64B): 1000000 ¦ SSL connections per second: 21000 ¦ Maximum concurrent sessions IPv4: 40000000 ¦ Maximum concurrent sessions IPv6: 70000000 ¦ IPSec VPN tunnels: 10000 ¦ IPSec VPN tunnels: 1000 |
| Power | DC 48 V |
| Power Redundancy | Yes |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 17.4 in x 26.5 in x 1.7 in |
| Weight | 40.12 lbs |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 17.4 in |
| Depth | 26.5 in |
| Height | 1.7 in |
| Weight | 40.12 lbs |
| Expansion / Connectivity | |
| Interfaces | 10 x 100Gb Ethernet - QSFP28 ¦ 16 x 50Gb Ethernet - SFP56 ¦ 2 x 400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD ¦ 2 x 1Gb Ethernet (HA) - SFP (mini-GBIC) ¦ 1 x 100/1000Base-T (out-of-band, management) - RJ-45 ¦ 1 x USB 3.0 - Type A |
| Miscellaneous | |
| MTBF | 133,440 hours |
| Compliant Standards | RoHS, FCC Class A certified |
| TAA Compliant | Yes |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Ports Qty | 24 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 400 Gbps |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network / Transport Protocol | IPSec, IPv4, IPv6, IGMPv2, IGMP, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | VXLAN, GRE, MPLS, VRRP, DVMRP, MSDP, ECMP, RIP-1, RIP-2, OSPF, OSPFv3, BGP, IS-IS, IGMP, IGMPv2 |
| Remote Management Protocol | SSH, Telnet, SNMP, MIB, CLI, RMON, NETCONF, XML |
| Performance | Firewall throughput (1518-byte packet size): 700 Gbps ¦ Firewall throughput (IMIX): 500 Gbps ¦ VPN throughput (1400 B IPSec): 114 Gbps ¦ VPN throughput (IMIX): 91 Gbps ¦ Security performance (CPS): 100 Gbps ¦ Next-generation firewall performance (CPS): 40 Gbps ¦ Advanced threat protection throughput: 13 Gbps ¦ IPsec throughput: 250 Gbps |
| Capacity | Connections per second (64B): 1000000 ¦ SSL connections per second: 21000 ¦ Maximum concurrent sessions IPv4: 40000000 ¦ Maximum concurrent sessions IPv6: 70000000 ¦ IPSec VPN tunnels: 10000 ¦ IPSec VPN tunnels: 1000 |
| Status Indicators | Link/activity, status |
| Features | Reset button, ground points, Ethernet Virtual Private Network (EVPN), Advanced Threat Protection (ATP), anti-spam protection, antivirus analysis, hardware encryption, Intrusion Prevention System (IPS), sandboxing, Web Filtering, zero-day malware detection, VPN support, Quality of Service (QoS), NAT support, Trusted Platform Module 2.0 (TPM 2.0), Secure Zero-touch provisioning (SZTP), DDos attack prevention, firewall protection, Carrier Grade NAT (CGN/CGNAT), PAT support, Dead Peer Detection (DPD), High Availability, Protocol Independent Multicast (PIM), Source-Specific Multicast (SSM), policy based routing, source based routing, DiffServ Code Point (DSCP) support, Weighted Random Early Detection (WRED), real-time performance monitoring (RPM), J-Flow, SNMP trap, SD-WAN support |
| Encryption Algorithm | SSL, IKEv1, IKEv2, 3DES, AES-GCM, AEC-CBC, PKI, ESP, MD5, SHA-196, SHA-256, DES |
| Authentication Method | X.509 certificates |
| Compliant Standards | IEEE 802.1p, X.509 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | DC 48 V |
| Power Provided | 2200 watt |
| Software / System Requirements | |
| OS Provided | JUNOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | Up to 85% (non-condensing) |
