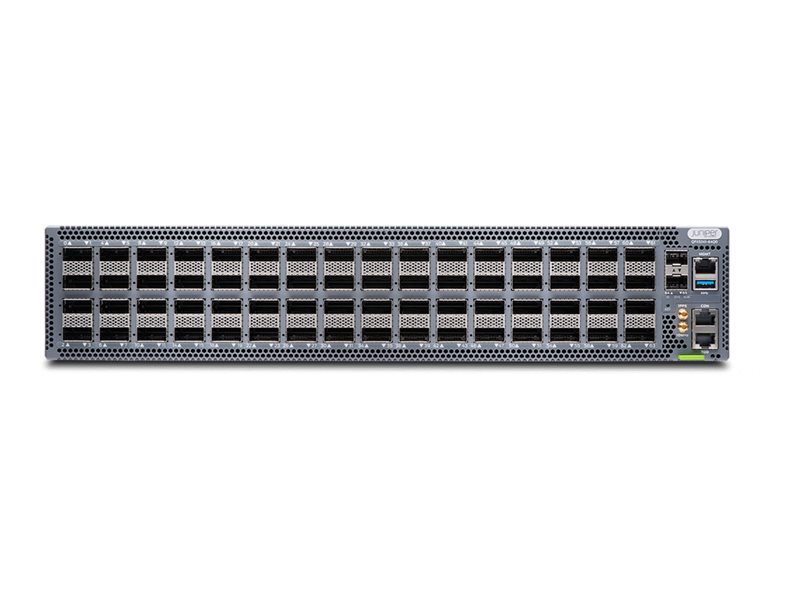

Switch - L3 - managed - 64 x 800 Gigabit QSFP-DD - front to back airflow - rack-mountable - for P/N: QFX5240-PWR-AC-AO, QFX5241-1U-PWR-AO, QFX5241-1U-PWR-DO
| Main Specifications | |
|---|---|
| Product Description | Juniper Networks QFX Series QFX5241-64QD - switch - 64 ports - managed - rack-mountable |
| Device Type | Switch - 64 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | 800 Gigabit Ethernet |
| Ports | 64 x 800 Gigabit QSFP-DD |
| Performance | Unidirectional throughput: 51.2 Tbps ¦ Bidirectional throughput: 102.4 Tbps ¦ Forwarding rate: 21.2 Bpps |
| Capacity | Packet buffer size: 165 MB |
| Routing Protocol | Static IP routing, OSPFv2, OSPFv3, VRRP, VRRPv3, BGP, IS-IS, DHCP, GRE, IGMP, IGMPv2, IGMPv3, MLDv2, PIM-SM, PIM-SSM, PIM-DM, PIM-Bidir |
| Remote Management Protocol | IPv6, IPv4, SNMP 1, SNMP 2, SNMP 3 |
| Features | Quad-core CPU, STP support, RSTP support, BPDU, loop protection, root protection, VLAN trunking, RVI, Static MAC, FBF, LFA, DHCPv4 relay, DHCPv6 relay, IGMP proxy, IGMP querier, IGMP snooping, IGMP snooping v2, IGMP snooping v3, MLD snooping, MSDP, QoS, BFD, SPAN, RSPAN, ERSPAN, sFlow v5, JTI, image rollback, Orchestration Integration & Automation, SZTP, secure boot, RoCE v2, PFC, ECN, DLB |
| Compliant Standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Qbb |
| Power | AC 200-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 25.5 in x 3.5 in |
| Weight | 48.5 lbs |
| Manufacturer Warranty | 1-year warranty |
| Designed For | P/N: QFX5240-PWR-AC-AO, QFX5241-1U-PWR-AO, QFX5241-1U-PWR-DO |
| General | |
| Device Type | Switch - 64 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 2U |
| Subtype | 800 Gigabit Ethernet |
| Ports | 64 x 800 Gigabit QSFP-DD |
| Performance | Unidirectional throughput: 51.2 Tbps ¦ Bidirectional throughput: 102.4 Tbps ¦ Forwarding rate: 21.2 Bpps |
| Capacity | Packet buffer size: 165 MB |
| Routing Protocol | Static IP routing, OSPFv2, OSPFv3, VRRP, VRRPv3, BGP, IS-IS, DHCP, GRE, IGMP, IGMPv2, IGMPv3, MLDv2, PIM-SM, PIM-SSM, PIM-DM, PIM-Bidir |
| Remote Management Protocol | IPv6, IPv4, SNMP 1, SNMP 2, SNMP 3 |
| Features | Quad-core CPU, STP support, RSTP support, BPDU, loop protection, root protection, VLAN trunking, RVI, Static MAC, FBF, LFA, DHCPv4 relay, DHCPv6 relay, IGMP proxy, IGMP querier, IGMP snooping, IGMP snooping v2, IGMP snooping v3, MLD snooping, MSDP, QoS, BFD, SPAN, RSPAN, ERSPAN, sFlow v5, JTI, image rollback, Orchestration Integration & Automation, SZTP, secure boot, RoCE v2, PFC, ECN, DLB |
| Compliant Standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Qbb |
| Processor | 1 x Intel Ice Lake |
| RAM | 32 GB DDR4 SDRAM |
| Built-in Devices | 2 x 480 GB SSD OS Drive, 4 hot-swap fans |
| Expansion / Connectivity | |
| Interfaces | 64 x 800Gbit LAN QSFP-DD ¦ 2 x 10Gbit LAN SFP+ ¦ 1 x USB Type A ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC 47 CFR Part 15, ICES-003, BS EN 55032, BS EN 55035, EN 300 386 V1.6.1, EN 300 386 V2.2.1, EN 300 386, EN 55032, CISPR 32, EN 55035, CISPR 35, IEC/EN 61000, EN IEC 61000-3-2, IEC/EN 61000-3-3, AS/NZS CISPR 32, VCCI-CISPR 32, BSMI CNS 15936, KS C 9835, KS C 9832, KS C 9610, EN 61000, ICES-GEN, RoHS, TSCA, POPs, WEEE, REACH, SCIP, UL 60950-1:2007, CAN/CSA-C22.2 No. 60950-1-07, IEC 62368-1: 2014 Second Edition, IEC 62368-1:2018 Third Edition, EN 62368-1:2014+A11:2017, UL/CSA 62368-1:2019 Third Edition, IEC/EN 60825-1 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 3000 watt |
| Voltage Required | AC 200-240 V |
| Power Consumption Operational | 616 watt |
| Software / System Requirements | |
| Software Included | Junos OS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 25.5 in |
| Height | 3.5 in |
| Weight | 48.5 lbs |
| Compatibility Information | |
| Designed For | P/N: QFX5240-PWR-AC-AO, QFX5241-1U-PWR-AO, QFX5241-1U-PWR-DO |
