Expansion module - 2.5GBase-T (4PPoE) x 4
| Main Specifications | |
|---|---|

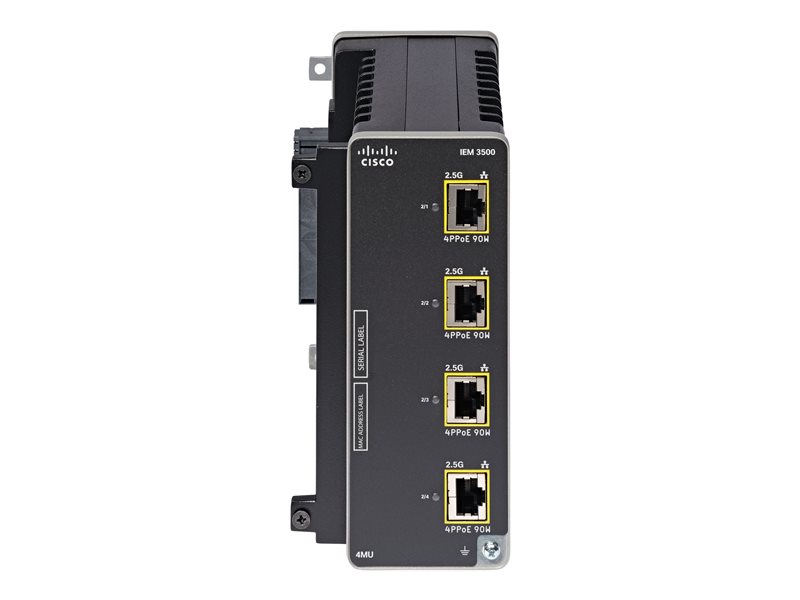

| Product Description | Cisco IE3500 Rugged Series IEM-3500-4MU - expansion module - 2.5GBase-T (4PPoE) x 4 |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Ports | 2.5GBase-T (4PPoE) x 4 |
| Dimensions (WxDxH) | 3.3 in x 5.3 in x 6 in |
| Weight | 34.56 oz |
| Cabling Type | Ethernet 2.5GBase-T, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Compliant Standards | IEEE 802.3bt Type 4 |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 4 x 100/1/2.5GBase-T (4PPoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 2,199,022 hours |
| Networking | |
| Ports | 2.5GBase-T (4PPoE) x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 2.5GBase-T, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Features | Fanless |
| Compliant Standards | IEEE 802.3bt Type 4 |
| Power | |
| Power Consumption Operational | 20 Watt |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 34.56 oz |
