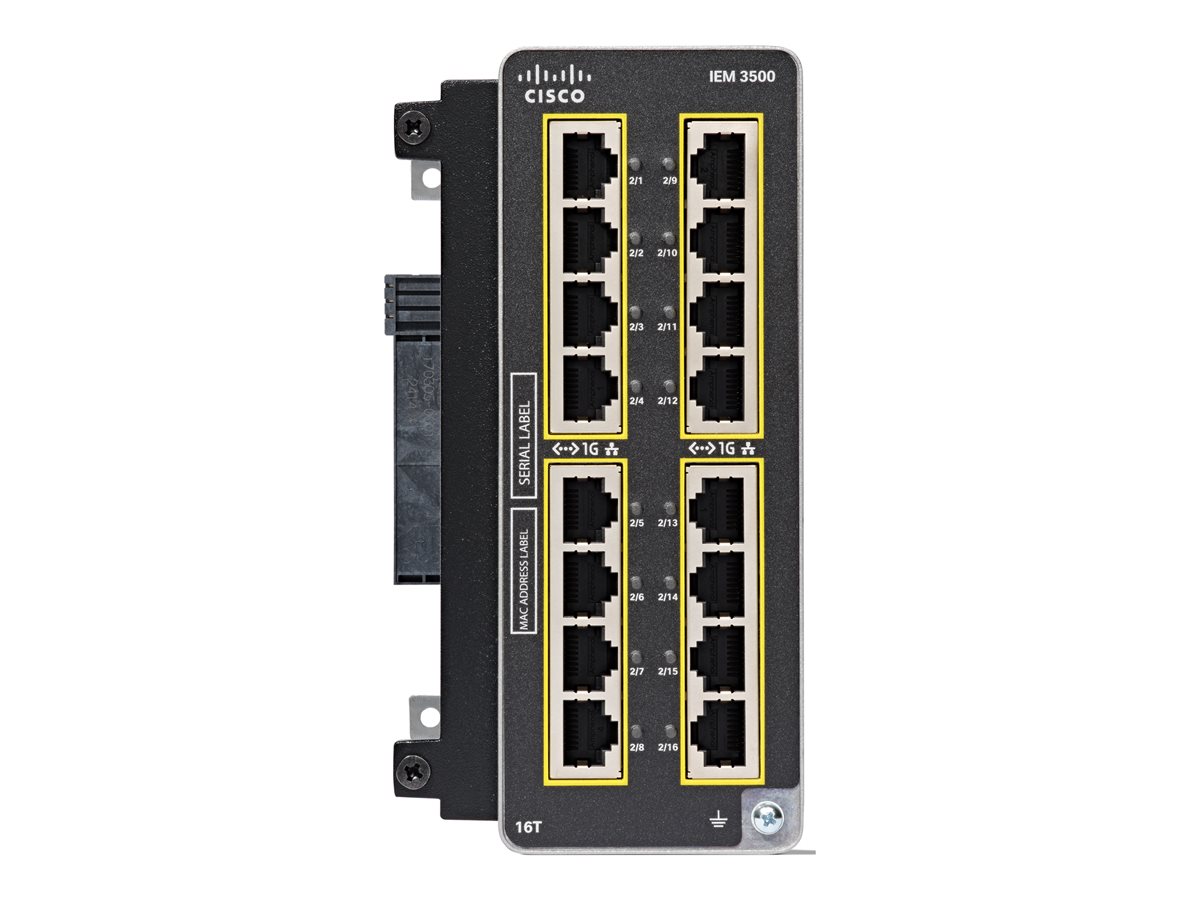

Expansion module - Gigabit Ethernet x 16
| Main Specifications | |
|---|---|
| Product Description | Cisco IE3500 Rugged Series IEM-3500-16T - expansion module - Gigabit Ethernet x 16 |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Ports | Gigabit Ethernet x 16 |
| Dimensions (WxDxH) | 3.3 in x 5.3 in x 6 in |
| Weight | 2.45 lbs |
| Cabling Type | Ethernet 10/100/1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 16 x 1000Base-T - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 1.649.967 hours |
| Networking | |
| Ports | Gigabit Ethernet x 16 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10/100/1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Fanless |
| Power | |
| Power Consumption Operational | 11 watt |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 2.45 lbs |
