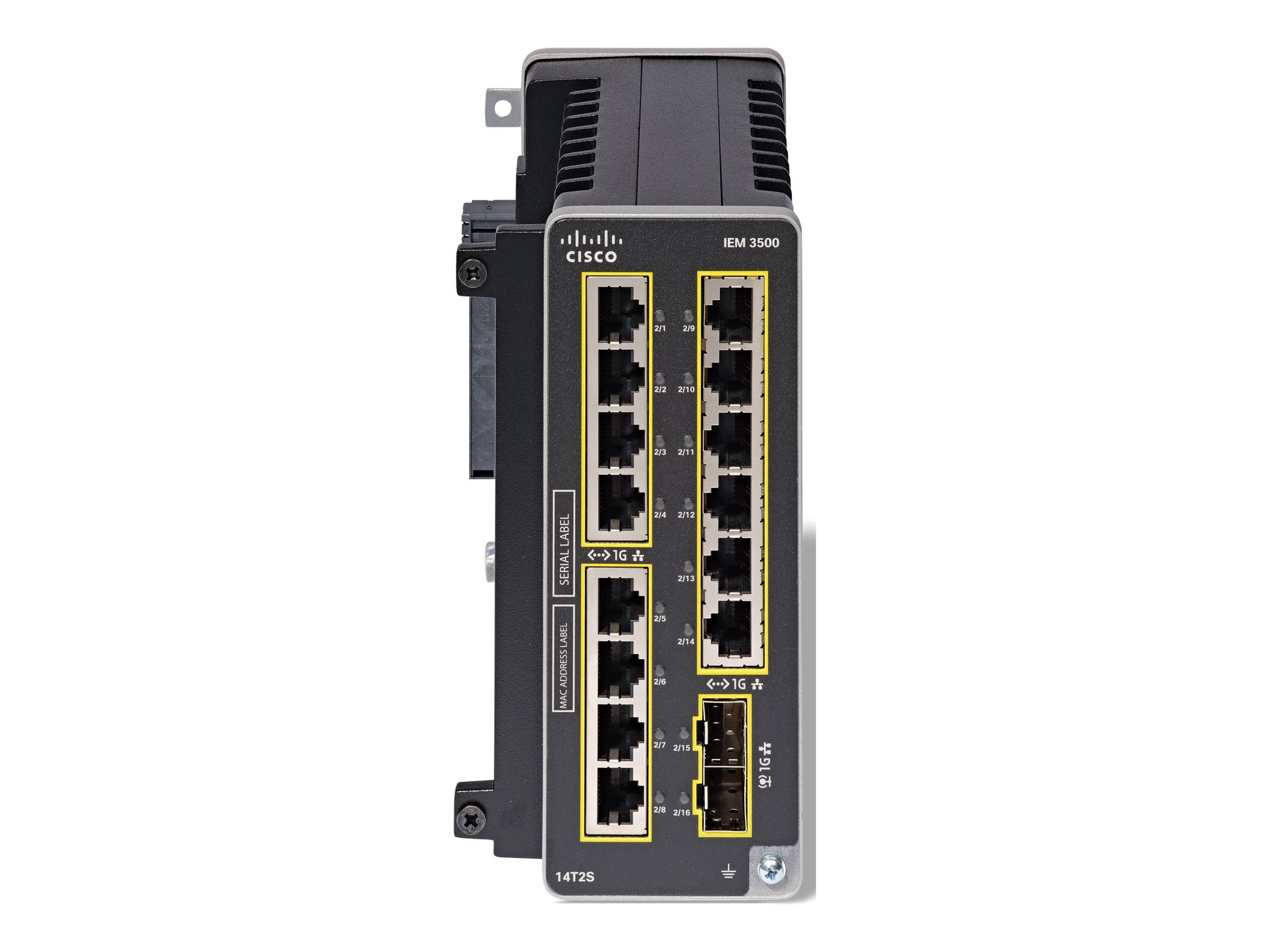

Expansion module - Gigabit Ethernet x 14 + Gigabit SFP x 2
| Main Specifications | |
|---|---|
| Product Description | Cisco IE3500 Rugged Series IEM-3500-14T2S - expansion module - Gigabit Ethernet x 14 + Gigabit SFP x 2 |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Ports | Gigabit Ethernet x 14 + Gigabit SFP x 2 |
| Dimensions (WxDxH) | 3.3 in x 5.3 in x 6 in |
| Weight | 2.49 lbs |
| Cabling Type | Ethernet 10/100/1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Expansion module |
| Form Factor | DIN rail mountable |
| Expansion / Connectivity | |
| Interfaces | 14 x 1000Base-T - RJ-45 ¦ 2 x 100/1000Base-T - SFP (mini-GBIC) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 1,590,095 hours |
| Compliant Standards | FCC 47 CFR Part 15 Subpart B Class A, EN 55032/CISPR 32 Class A, VCCI Class A, AS/NZS CISPR 32 Class A, CISPR 11 class A, ICES-003 Class A, CNS 15936 Class A, KS C 9832 Class A, EN 300 386, CISPR 35, EN55035, KS C 9835, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-29, EN 61000-6-2, EN 61000-6-4, EN 61000-6-1, EN 61326-1, IEEE 1613, IEC 61850-3, ODVA, IP30, EN 61850-3, CSA 213, IEC 60079-0, IEC 62368-1, UL 121201, UL 60079-0, UL/CSA 61010-2-201, UL/CSA 62368-1, ATEX Class 1 Zone 2, EN 60079-0, EN 50121-3-2, EN 50121-4, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-78, REACH, RoHS, WEEE |
| Networking | |
| Ports | Gigabit Ethernet x 14 + Gigabit SFP x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10/100/1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Fanless |
| Power | |
| Power Consumption Operational | 16 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 2.49 lbs |
