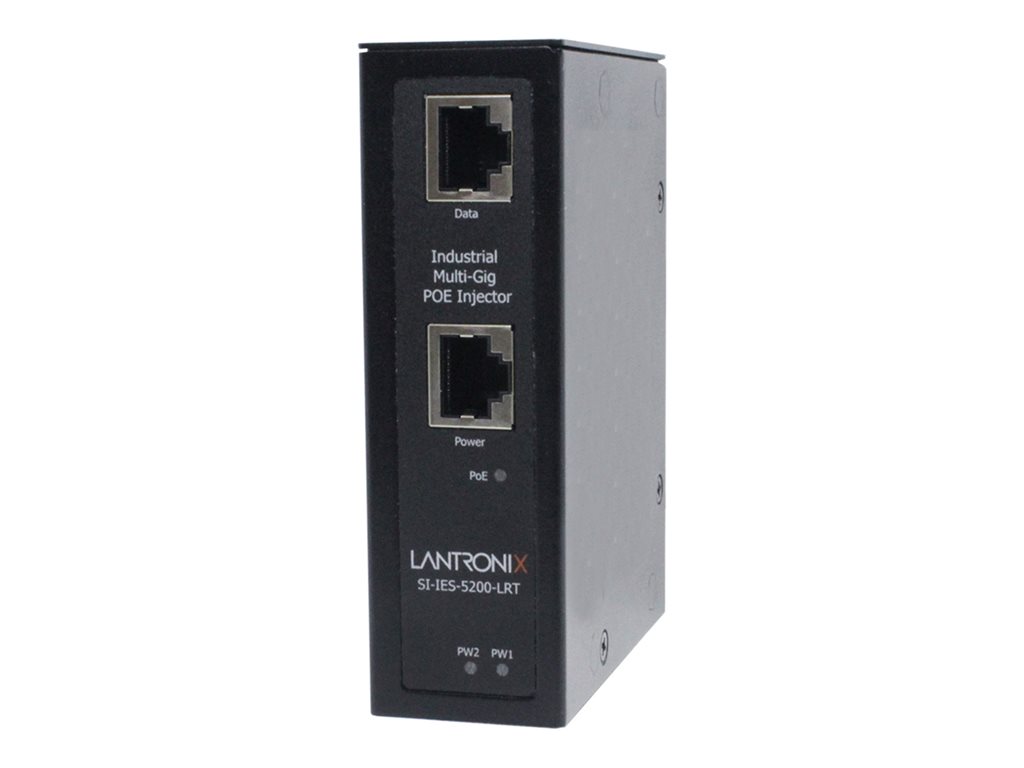

PoE injector (DIN rail mountable) - 54 - 56 V - 90 Watt - output connectors: 1 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Lantronix - PoE injector - 90 Watt - TAA Compliant |
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE++ |
| Weight | 6.35 oz |
| Input Voltage | 54 - 56 V |
| Power Capacity | 90 Watt |
| Input Connectors | 4 pin terminal block |
| Output connectors | 1 x RJ-45 |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 1.3 in x 3.2 in x 4.1 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | PoE injector - DIN rail mountable |
| Power Over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Expansion / Connectivity | |
| Interfaces | 1 x 10 Gigabit LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| MTBF | 594,472 hours |
| Features | Hardened, overcurrent protection, overload protection, redundant power connector, reverse polarity protection, LED indicators, 2 kV surge protection |
| Compliant Standards | IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3, NDAA, IP31, Telcordia, EN62368-1, UL 62368-1, FCC, UKCA, CISPR 32, EN 55032/35, FCC Part 15 B Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 50058-2-6, EN 60068-2-27, EN 60068-2-32 |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | 54 - 56 V |
| Input Connectors | 4 pin terminal block |
| Power Consumption Operational | 101.4 Watt |
| Power Output Connectors Details | 1 x RJ-45 |
| Power Capacity | 90 Watt |
| Dimensions & Weight | |
| Width | 1.3 in |
| Depth | 3.2 in |
| Height | 4.1 in |
| Weight | 6.35 oz |
