36" multifunction printer - color - ink-jet - 37.99 in width (original) - Roll (36.1 in) (media) - Gigabit LAN, Wi-Fi(n), USB 3.0
| Main Specifications | |
|---|---|

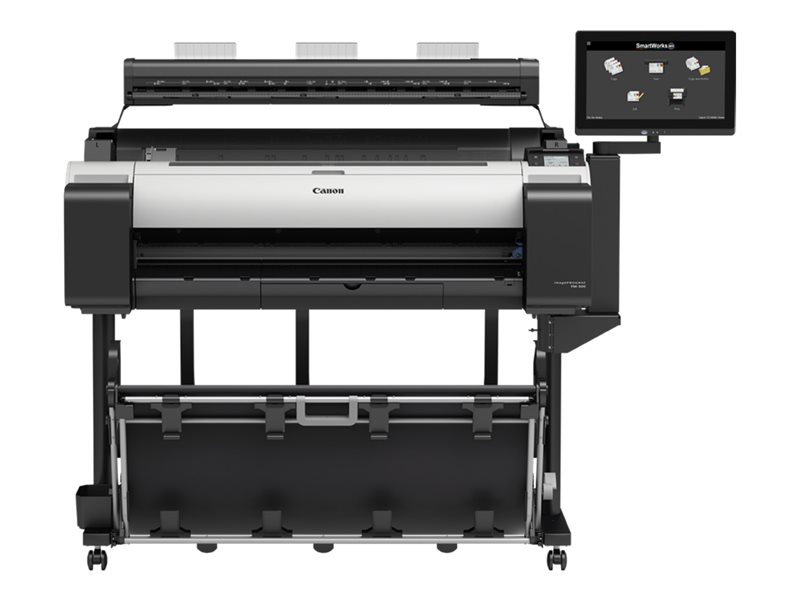

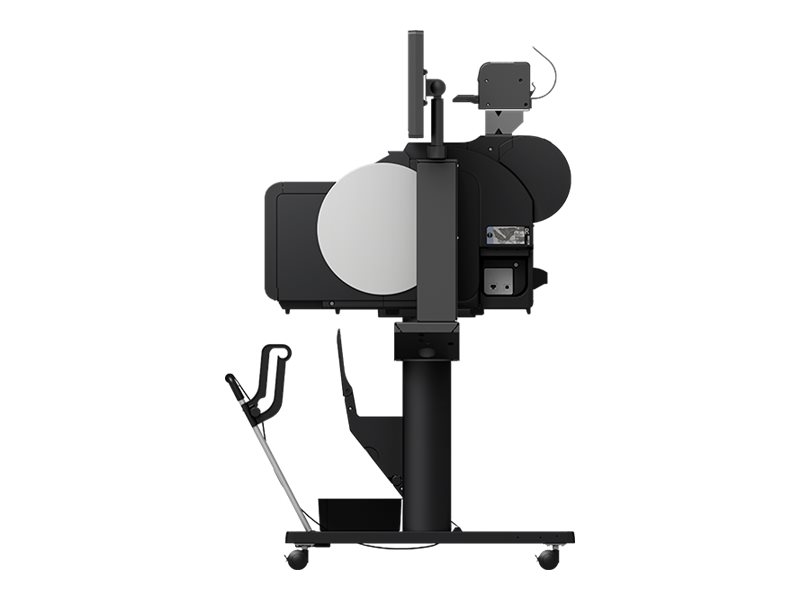

| Product Description | Canon imagePROGRAF TM-300 MFP Z36 - multifunction printer - color |
| Device Type | 36" multifunction printer |
| EU Data Act | Https://www.canon-europe.com/about_us/legal-compliance/eu-data-act-compliance/ |
| Printing Technology | Ink-jet (color) |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) - 5-ink |
| Max Printing Speed | 0.7 min/page (color) |
| Max Printing Resolution | 2400 x 1200 dpi (color) |
| Scanning | 1200 dpi |
| Display | 15.6" |
| Original Size | 37.99 in width (max) |
| Original Type | Sheets |
| Media Size | Roll (36.1 in) (max) |
| Media Type | Plain paper, coated paper, tracing paper, matte film |
| Connection Availability | Yes |
| Interface | Gigabit LAN, Wi-Fi(n), USB 3.0 |
| AirPrint Enabled | Yes |
| Office Machine Features | SingleSensor Technology Assembly |
| Power | AC 120/230 V (50/60Hz) |
| Dimensions (WxDxH) | 50.7 in x 29.8 in x 41.7 in |
| Weight | 132.28 lbs |
| General | |
| Device Type | 36" multifunction printer |
| EU Data Act | Https://www.canon-europe.com/about_us/legal-compliance/eu-data-act-compliance/ |
| Printing Technology | Ink-jet - color |
| Display Diagonal Size | 15.6" |
| Display Color Support | Color |
| Display Features | Touch screen |
| Connection Availability | Yes |
| Interface | Gigabit LAN, Wi-Fi(n), USB 3.0 |
| AirPrint Enabled | Yes |
| Office Machine Features | SingleSensor Technology Assembly |
| Memory | |
| Standard Memory | 2 GB |
| Miscellaneous | |
| Included Accessories | Stand, mounting kit, calibration target, all-in-one touch screen computer, 2 paper edge guides, 3 document return guides, 3-inch core adapter, USB 3.0 cable (2 m) |
| Consumables Included | 1 x ink tank (cyan) ¦ 1 x ink tank (magenta) ¦ 1 x ink tank (yellow) ¦ 1 x ink tank (black) ¦ 1 x ink tank (matte black) ¦ 1 x printhead |
| Compliant Standards | TUV, CB, EAC |
| Power | |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Power Consumption Operational | 69 watt |
| Power Consumption Sleep | 3.6 watt |
| Environmental Parameters | |
| Sound Emission | 35 dBA (idle) / 44 dBA (operating) |
| Min Operating Temperature | 59 °F |
| Max Operating Temperature | 86 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Connections | |
| Interfaces | 1 x USB 3.0 - 9 pin USB Type A ¦ 1 x Gigabit LAN - RJ-45 |
| Operating System Support | MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2012 x64 Edition, MS Windows Server 2012 R2 x64 Edition, MS Windows 7 (32/64 bits), Windows 8.1 (32/64-bits), Windows 10 (32/64-bits), Apple Mac OS X 10.10.5 - 10.11, macOS 10.13, MS Windows Server 2016 x64 Edition |
| Software Included | Drivers & utilities, PosterArtist Lite, Canon SmartWorks MFP V6 |
| Printing | |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Nozzle Configuration | 15360 nozzles |
| Max Printing Resolution | 2400 x 1200 dpi (color) |
| Max Printing Speed | 0.7 min/page (color) |
| Ink Cartridge Configuration | 5 individual ink tanks |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, black, matte black |
| Color | 5-ink |
| Minimum Ink Droplet Size | 5 pl |
| Printer Drivers / Emulations | HPGL/2, HP-RTL, JPEG, Swift Graphic Raster (SGRaster) |
| Ink Type | Canon LUCIA TD pigment ink |
| Scanning | |
| Optical Resolution | 1200 dpi |
| Document & Media Handling | |
| Max Original Size | 37.99 in width |
| Original Type | Sheets |
| Max Media Size | Other |
| Media Thickness Range | 0.0028 in - 0.0315 in |
| Supported Media Type | Plain paper, coated paper, tracing paper, matte film |
| Supported Media Sizes | Roll A2 (16.5 in), Roll (10 in), Roll (16 in), Roll (17 in), Roll (11.8 in), Roll (36 in), Roll (30.0 in), Roll (14 in), Roll A1 (24 in), Roll (24 in), Roll JIS B2 (20.3 in), Roll (28.66 in), Roll A3 (11.69 in), Roll JIS B4 (10.12 in), Roll (20 in), Roll (8 in), Roll (19.69 in), Roll (23.62 in), Roll (31.5 in), Roll (12 in), Roll A3 Plus (32.9 cm), Roll (36.1 in), Roll A0 (81.4 cm) |
| Document & Media Handling Details | Input tray - 1 roll |
| Speed Details | Printing: up to 0.7 min/page (A0) - photo fast economy ¦ Printing: up to 0.8 min/page (A0) - photo fast ¦ Printing: up to 1.2 min/page (A0) - photo normal |
| Dimensions & Weight | |
| Width | 50.7 in |
| Depth | 29.8 in |
| Height | 41.7 in |
| Weight | 132.28 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 57.2 in |
| Shipping Depth | 35.9 in |
| Shipping Height | 37.8 in |
| Shipping Weight | 231.48 lbs |
