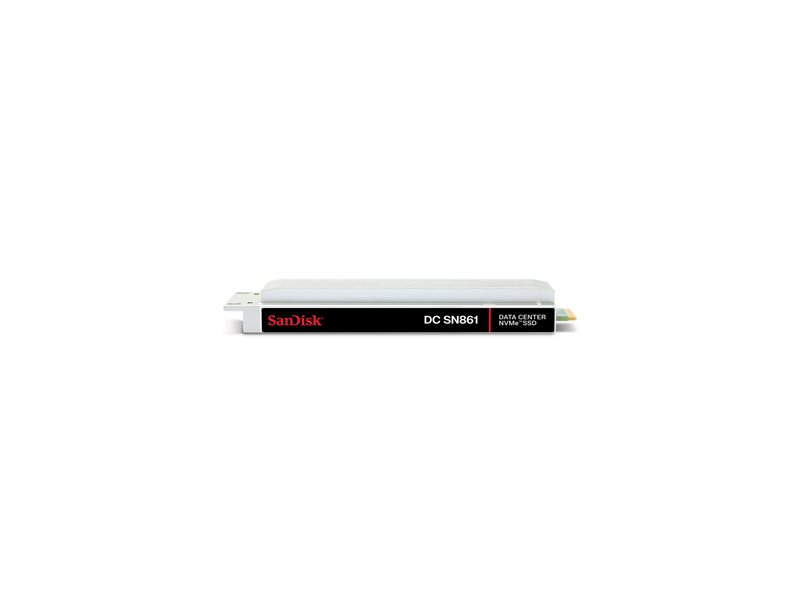

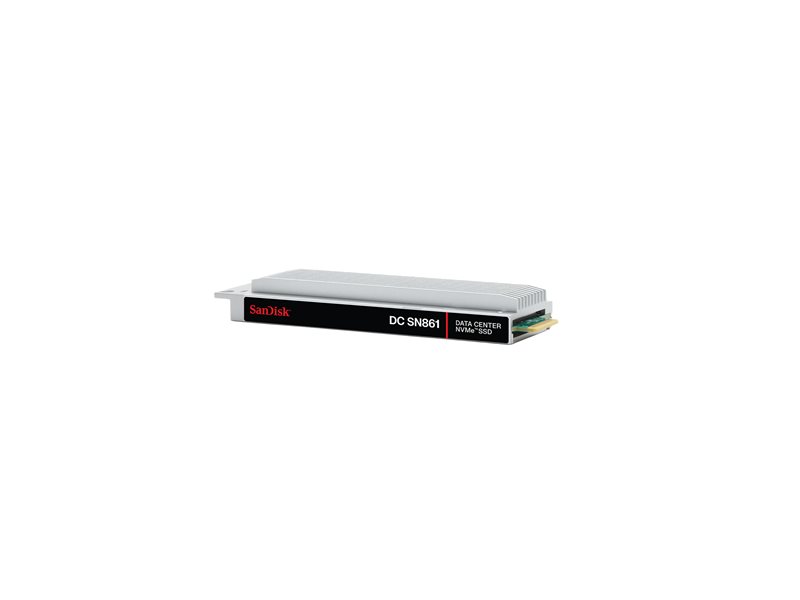

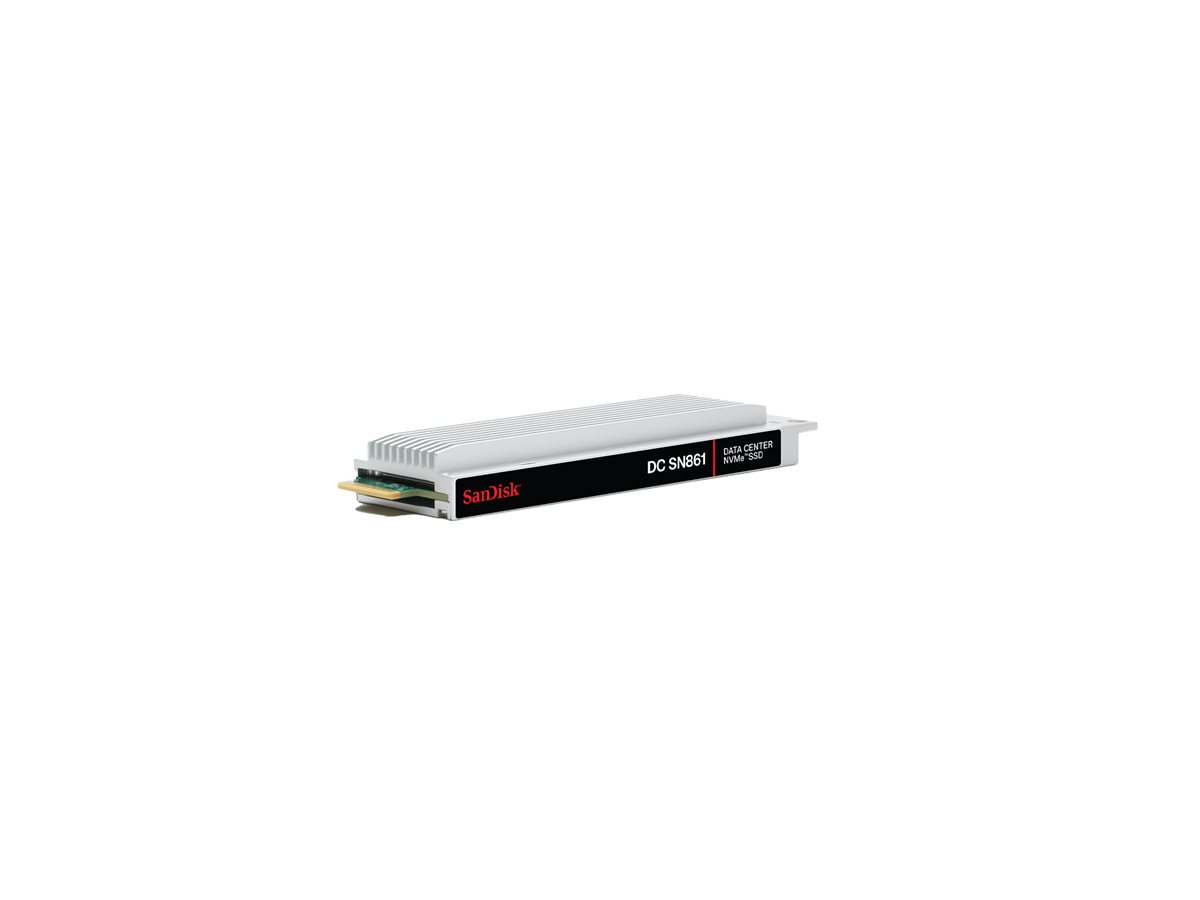

SSD - Data Center - encrypted - 3.84 TB - internal - E1.S 15mm - PCI Express 5.0 x4 (NVMe) - TCG Opal Encryption 2.01
| Main Specifications | |
|---|---|
| Product Description | SanDisk DC SN861 - SSD - Data Center - 3.84 TB - PCI Express 5.0 x4 (NVMe) |
| Type | Solid state drive - internal |
| Capacity | 3.84 TB |
| Hardware Encryption | Yes |
| Form Factor | E1.S 15mm |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Drive Class | Data Center |
| Features | NVM Express (NVMe) 1.4b, high Quality of Service (QoS), Power Loss Protection (PLP), End-to-end data path protection |
| Dimensions (WxDxH) | 1.3 in x 4.7 in x 0.6 in |
| Weight | 3.35 oz |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Solid state drive - internal |
| Capacity | 3.84 TB |
| Hardware Encryption | Yes |
| Form Factor | E1.S 15mm |
| Interface | PCI Express 5.0 x4 (NVMe) |
| Features | NVM Express (NVMe) 1.4b, high Quality of Service (QoS), Power Loss Protection (PLP), End-to-end data path protection |
| Width | 1.3 in |
| Depth | 4.7 in |
| Height | 0.6 in |
| Weight | 3.35 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 5 Watt (average idle) ¦ 21 Watt (active) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| Drive Class | Data Center |
| Internal Data Rate | 13700 MBps (read) / 6500 MBps (write) |
| Maximum 4KB Random Write | 210000 IOPS |
| Maximum 4KB Random Read | 2850000 IOPS |
| Reliability | |
| MTBF | 2.500.000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 5.0 x4 (NVMe) |
| Compatible Bay | E1.S 15mm |
