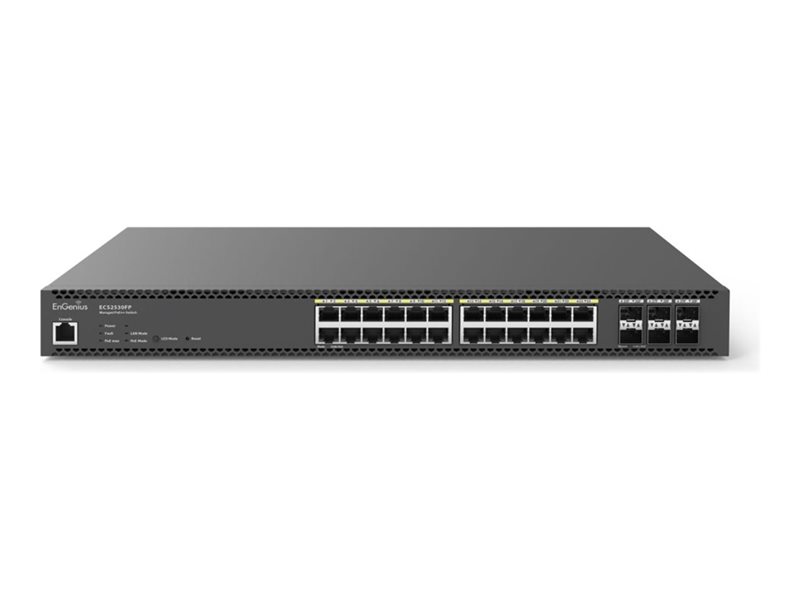

Switch - cloud managed, multi-Gigabit - L2+ - managed - 24 x 100/1000/2.5G (PoE++) + 6 x 10 Gigabit SFP+ - rack-mountable - PoE++ (740 W)
| Main Specifications | |
|---|---|
| Product Description | EnGenius Cloud ECS2530FP - switch - cloud managed, multi-Gigabit - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L2+ - managed |
| Enclosure Type | Rack-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G (PoE++) + 6 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 740 W |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Remote Management Protocol | RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 3, SNMP 2c, HTTPS, HTTP |
| Features | Port-based VLAN, Voice VLAN, ARP support, DHCP snooping, DHCP relay, Link Aggregation, flow control, VLAN Tagging, IGMP snooping, Multicast filtering function, loopback detection, RSTP support, FCAP, SSH server, Telnet server, TFTP client, SNTP, Syslog support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x |
| Power | AC 100-240 V (50 - 60 Hz) |
| Dimensions (WxDxH) | 10.2 in x 17.3 in x 1.7 in |
| Weight | 8.82 lbs |
| General | |
| Device Type | Switch - 24 ports - L2+ - managed |
| Enclosure Type | Rack-mountable |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G (PoE++) + 6 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 740 W |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 10KB |
| Remote Management Protocol | RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 1, SNMP 3, SNMP 2c, HTTPS, HTTP |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS |
| Features | Port-based VLAN, Voice VLAN, ARP support, DHCP snooping, DHCP relay, Link Aggregation, flow control, VLAN Tagging, IGMP snooping, Multicast filtering function, loopback detection, RSTP support, FCAP, SSH server, Telnet server, TFTP client, SNTP, Syslog support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x |
| RAM | 512 MB SDRAM |
| Flash Memory | 128 MB |
| Status Indicators | Power, fault, PoE max, LAN, PoE, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 24 x 100/1000/2.5G RJ-45 ¦ 6 x 10Gbit LAN SFP+ |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 10.2 in |
| Depth | 17.3 in |
| Height | 1.7 in |
| Weight | 8.82 lbs |
