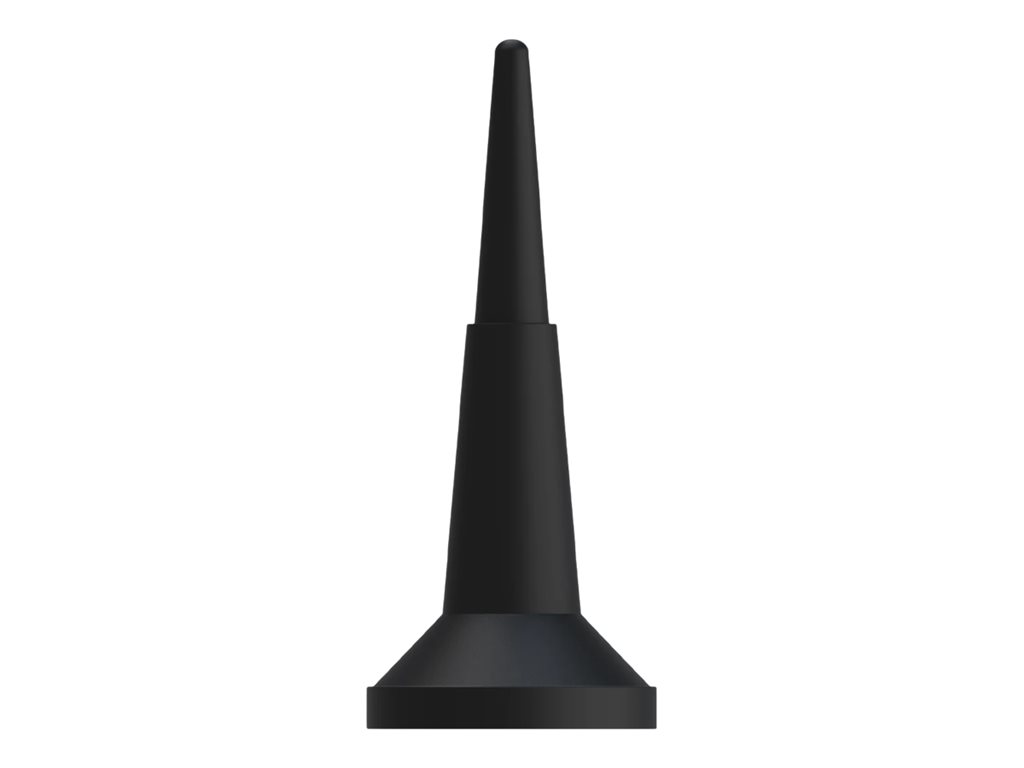

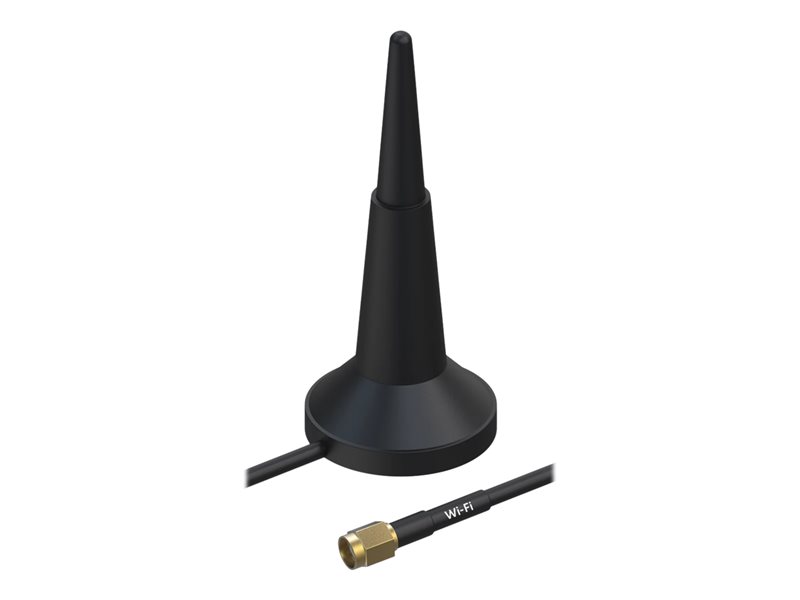

Antenna - Wi-Fi - 3 dBi - magnetic mountable
| Main Specifications | |
|---|---|
| Product Description | Teltonika antenna |
| Product Type | Antenna |
| Dimensions (WxDxH) | 1.2 in x 1.2 in x 3.5 in |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Magnetic mountable |
| Compatibility | Wi-Fi |
| Frequency Range | 2.4 - 2.4835 GHz, 5.15 - 5.905 GHz |
| Gain | 3 dBi |
| Compliant Standards | RoHS, IP50 |
| General | |
| Product Type | Antenna |
| Width | 1.2 in |
| Depth | 1.2 in |
| Height | 3.5 in |
| Cable Length | 5 ft |
| Miscellaneous | |
| Compliant Standards | RoHS, IP50 |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 167 °F |
| Cabling & Wiring | |
| Connector Provided | 1 x RP-SMA male |
| Antenna | |
| Intended For | Wi-Fi |
| Antenna Placing / Mounting | Magnetic mountable |
| Compatibility | Wi-Fi |
| Frequency Range | 2.4 - 2.4835 GHz, 5.15 - 5.905 GHz |
| Gain | 3 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Impedance | 50 ohm |
