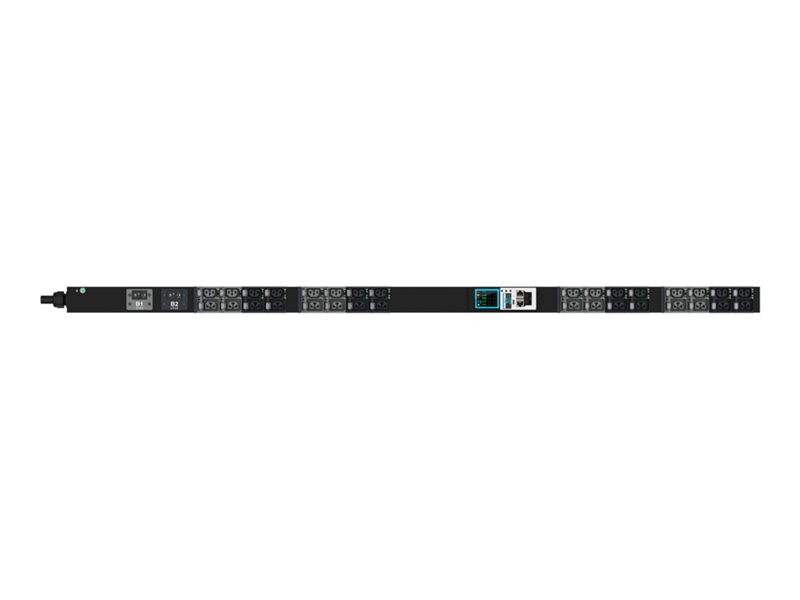

Power distribution unit (rack-mountable) - switched and monitored - AC 200-240 V - 3-phase - Ethernet 10/100/1000 - input: IEC 60309 (18 x IEC 60320 C13/C15, 18 x IEC 60320 C13/C15/C19) - 0U - for P/N: 4X97A93183, 4XF7A93184, 4XF7A93901
| Main Specifications | |
|---|---|
| Product Description | Lenovo - power distribution unit - switched and monitored |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Input Wiring | 3-phase |
| Input Voltage | AC 200-240 V |
| Input Connectors | 1 x power IEC 60309 |
| Output connectors | 18 x power IEC 60320 C13/C15 ¦ 18 x power IEC 60320 C13/C15/C19 |
| Networking | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, IPv4, IPv6, LDAP, RADIUS, SSH, JSON-RPC |
| Dimensions (WxDxH) | 2.2 in x 3 in x 67.7 in |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: 4X97A93183, 4XF7A93184, 4XF7A93901 |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Expansion / Connectivity | |
| Interfaces | 2 x management (Ethernet) - RJ-45 ¦ 2 x serial - RJ-12 ¦ 1 x USB-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable - external - 10 ft |
| Features | LED display, color-coded, alarm |
| Compliant Standards | RoHS, REACH |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, IPv4, IPv6, LDAP, RADIUS, SSH, JSON-RPC |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 200-240 V |
| Frequency Provided | 50 - 60 Hz |
| Input Wiring | 3-phase |
| Input Connectors | 1 x power IEC 60309 |
| Power Output Connectors Details | 18 x power IEC 60320 C13/C15 ¦ 18 x power IEC 60320 C13/C15/C19 |
| Output Voltage | 50 - 60 Hz |
| Max Electric Current | 63 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 3 in |
| Height | 67.7 in |
| Compatibility Information | |
| Designed For | P/N: 4X97A93183, 4XF7A93184, 4XF7A93901 |
