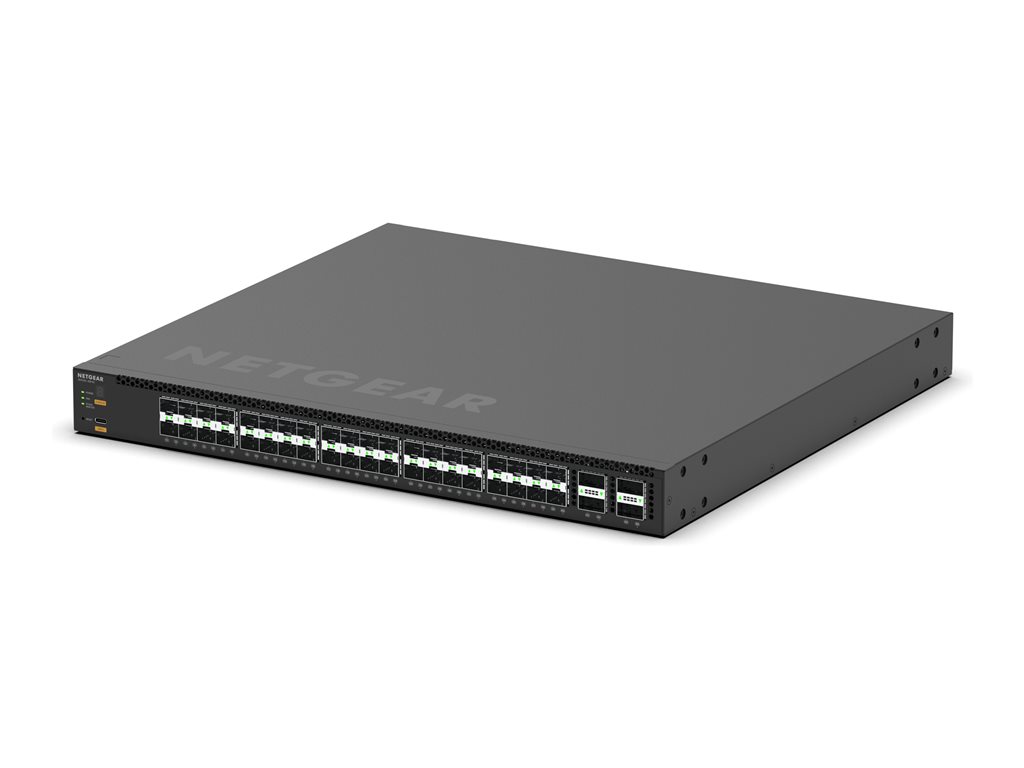

Switch - L3 - managed - 40 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 (uplink) - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | NETGEAR M4350 Series M4350-40F4C - switch - 40 ports - managed - rack-mountable |
| Device Type | Switch - 40 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet / 10 Gigabit Ethernet |
| Ports | 40 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 (uplink) |
| Performance | Switch fabric speed: 1.6 Tbps ¦ Throughput (64-byte packet size): 1190.4 Mpps ¦ Latency (10 Gbps): < 1.20 µs ¦ Latency (1 Gbps): < 1.83 µs ¦ Latency (100 Gbps): < 1.30 µs |
| Capacity | Packet buffer size: 256 MB ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 256 ¦ IGMP multicast groups: 2000 ¦ Jumbo frame size: up to 12000 ¦ VLANs supported: 4000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512 ¦ DHCP pool (IPv4): 256 ¦ DHCP pool (IPv6): 16 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | MIB, HTTPS, SNMP, CLI, Telnet, SSH, RSTP, RMON, DHCP |
| Features | Reset button, 6 fans, RGB backlight, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, Quad-core CPU, LACP |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak |
| Power | AC 110-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 15.7 in x 1.7 in |
| Weight | 16.27 lbs |
| Localization | Europe, North America, United Kingdom |
| Manufacturer Warranty | ProSAFE lifetime warranty |
| General | |
| Device Type | Switch - 40 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 100 Gigabit Ethernet / 10 Gigabit Ethernet |
| Ports | 40 x 10 Gigabit SFP+ + 4 x 100 Gigabit QSFP28 (uplink) |
| Performance | Switch fabric speed: 1.6 Tbps ¦ Throughput (64-byte packet size): 1190.4 Mpps ¦ Latency (10 Gbps): < 1.20 µs ¦ Latency (1 Gbps): < 1.83 µs ¦ Latency (100 Gbps): < 1.30 µs |
| Capacity | Packet buffer size: 256 MB ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 256 ¦ IGMP multicast groups: 2000 ¦ Jumbo frame size: up to 12000 ¦ VLANs supported: 4000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512 ¦ DHCP pool (IPv4): 256 ¦ DHCP pool (IPv6): 16 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | Yes |
| Max Units In A Stack | 8 |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | MIB, HTTPS, SNMP, CLI, Telnet, SSH, RSTP, RMON, DHCP |
| Encryption Algorithm | SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method | TACACS+, RADIUS, Secure Shell (SSH) |
| Features | Reset button, 6 fans, RGB backlight, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, Quad-core CPU, LACP |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak |
| Processor | X ARM Cortex-A57: 1.8 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Status Indicators | Power, fan, stack |
| Expansion / Connectivity | |
| Interfaces | 40 x 10GBase-X SFP+ ¦ 4 x 100GBase-X QSFP28 ¦ 1 x console (USB) USB Type-C management ¦ 2 x USB 3.0 Type A ¦ 1 x 10/100/1000Base-T RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | Rack mounting brackets, power cord, foot pad set, mounting brackets |
| Cables Included | 1 x USB-C cable |
| Rack Mounting Kit | Included |
| MTBF | 380,163 hours |
| Compliant Standards | SCCP, IEEE 1588, AAA, EN 55032:2012/AC:2013, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, AS/NZS CISPR32:2013 Class A, RCM, CCC, GB 4943.1-2011, YD/T993-1998, GB/T9254-2008 Class A, FCC CFR 47 Part 15 Class A, ANSI C63.4:2014, ISED, ICES-003:2016 issue 6 Class A, BSMI, CNS 13438 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, UL 1950, cUL, IEC 950, EN 60950, LVD, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, AS/NZS 60950-1:2015, CNS 14336-1 |
| Localization | Europe, North America, United Kingdom |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 420 Watt |
| Voltage Required | AC 110-240 V |
| Power Consumption Operational | 213.6 Watt |
| Power Consumption Stand by | 65 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Weight | 16.27 lbs |
