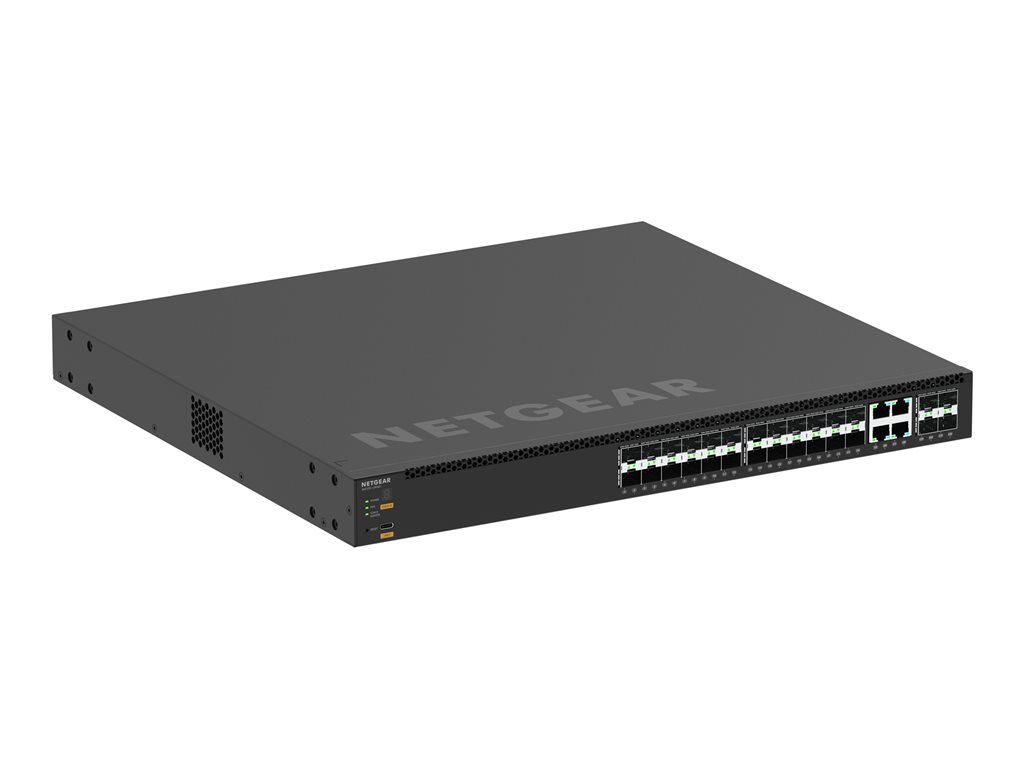

Switch - full width - L3 - managed - 24 x 1/2.5 Gigabit SFP + 4 x combo 10 Gigabit SFP+ - front to back airflow - rack-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | NETGEAR M4350 Series M4350-24F4X - switch - full width - 28 ports - managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 28 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet |
| Ports | 24 x 1/2.5 Gigabit SFP + 4 x combo 10 Gigabit SFP+ |
| Performance | Switch fabric speed: 200 Gbps ¦ Throughput (64-byte packet size): 148.8 Mpps ¦ 10 Gbps fiber latency (64-byte packets): < 0.98 µs ¦ Latency (1 Gbps): < 1.25 µs ¦ 10 Gbps copper latency (64-byte packets): 2.27 µs |
| Capacity | Packet buffer size: 32 MB ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 256 ¦ IGMP multicast groups: 2000 ¦ Jumbo frame size: up to 12000 ¦ VLANs supported: 4000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512 ¦ DHCP pool (IPv4): 256 ¦ DHCP pool (IPv6): 16 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12000 bytes |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | MIB, HTTPS, SNMP, CLI, Telnet, SSH, RSTP, RMON, DHCP |
| Features | NETGEAR IGMP Plus, reset button, 4 fans, RGB backlight, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, Quad-core CPU, LACP |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak, IEEE 1588 PTP, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP) |
| Power | AC 110-240 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.3 in x 15.7 in x 1.7 in |
| Weight | 16.27 lbs |
| Localization | Europe, North America, United Kingdom |
| TAA Compliant | Yes |
| Manufacturer Warranty | NETGEAR ProSAFE lifetime warranty |
| General | |
| Device Type | Switch - 28 ports - L3 - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 2.5 Gigabit Ethernet / Gigabit Ethernet |
| Ports | 24 x 1/2.5 Gigabit SFP + 4 x combo 10 Gigabit SFP+ |
| Performance | Switch fabric speed: 200 Gbps ¦ Throughput (64-byte packet size): 148.8 Mpps ¦ 10 Gbps fiber latency (64-byte packets): < 0.98 µs ¦ Latency (1 Gbps): < 1.25 µs ¦ 10 Gbps copper latency (64-byte packets): 2.27 µs |
| Capacity | Packet buffer size: 32 MB ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 256 ¦ IGMP multicast groups: 2000 ¦ Jumbo frame size: up to 12000 ¦ VLANs supported: 4000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512 ¦ DHCP pool (IPv4): 256 ¦ DHCP pool (IPv6): 16 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12000 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | MIB, HTTPS, SNMP, CLI, Telnet, SSH, RSTP, RMON, DHCP |
| Encryption Algorithm | SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method | TACACS+, RADIUS, Secure Shell v.2 (SSH2) |
| Features | NETGEAR IGMP Plus, reset button, 4 fans, RGB backlight, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, Quad-core CPU, LACP |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak, IEEE 1588 PTP, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP) |
| Processor | 1 x ARM Cortex-A57: 1.8 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Built-in Devices | 6 x fans |
| Status Indicators | Power, fan, stack |
| Expansion / Connectivity | |
| Interfaces | 24 x 1/2.5GBase-X SFP ¦ 4 x 10GBase-T/10GBase-X SFP+ ¦ 1 x 1000Base-T RJ-45 out-of-band network management ¦ 1 x console USB Type-C ¦ 2 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime ¦ Hardware replacement - lifetime - response time: next business day ¦ Phone or chat support - 90 days |
| Miscellaneous | |
| Included Accessories | Rack mounting brackets, power cord, rubber feet, mounting brackets, rubber caps |
| Cables Included | 1 x USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, AS/NZS CISPR32:2013 Class A, VCCI-CISPR 32:2016 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, YD/T993-1998, FCC CFR 47 Part 15 Class A, ANSI C63.4:2014, BSMI CNS 13438 Class A, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, AN/NZS 60950.1:2015, CCC, CNS 14336-1, BSMI, RCM, UL, CB |
| TAA Compliant | Yes |
| Localization | Europe, North America, United Kingdom |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 240 watt |
| Voltage Required | AC 110-240 V |
| Power Consumption Operational | 115.5 watt |
| Power Consumption Stand by | 39 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 90% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 15.7 in |
| Height | 1.7 in |
| Weight | 16.27 lbs |
