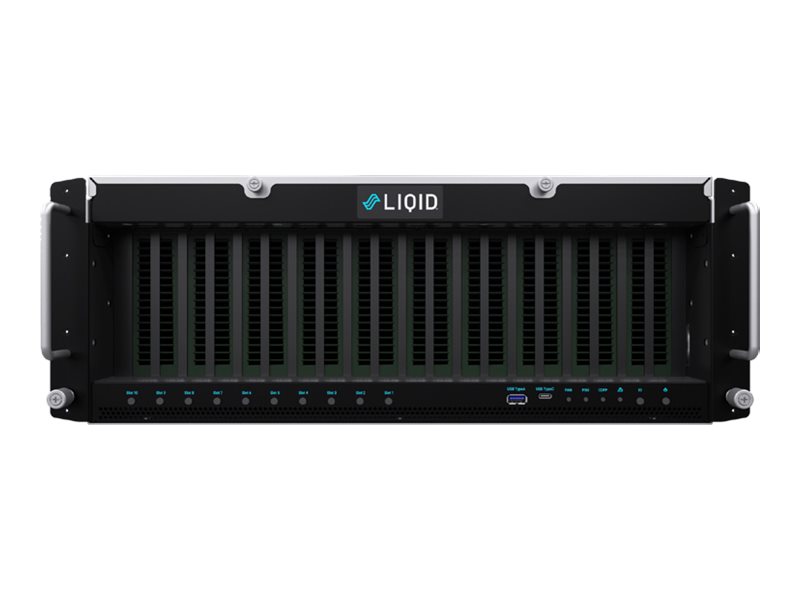

System bus extender - for server
| Main Specifications | |
|---|---|
| Product Description | Liqid EX-5410P - system bus extender |
| Product Type | System bus extender - for server |
| Dimensions (WxDxH) | 18.5 in x 17.2 in x 7 in |
| Weight | 38.49 lbs |
| Power | AC 100-277 V |
| General | |
| Product Type | System bus extender - for server |
| Width | 18.5 in |
| Depth | 17.2 in |
| Height | 7 in |
| Weight | 38.49 lbs |
| Expansion / Connectivity | |
| Expansion Slots | 10 (total) / 10 (free) x PCI Express 5.0 x16 - full-length, full-height |
| Interfaces | 4 x PCIe host - PCI Express 5.0 x16 |
| Miscellaneous | |
| Features | 4U height, 4 x 120 mm hot-swappable cooling fan |
| Compliant Standards | FCC Class A certified, UL, cUL, RoHS3 |
| Power | |
| Voltage Required | AC 100-277 V |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 95 °F |
