Router 40GbE, 100GbE - rack-mountable
| Main Specifications | |
|---|---|

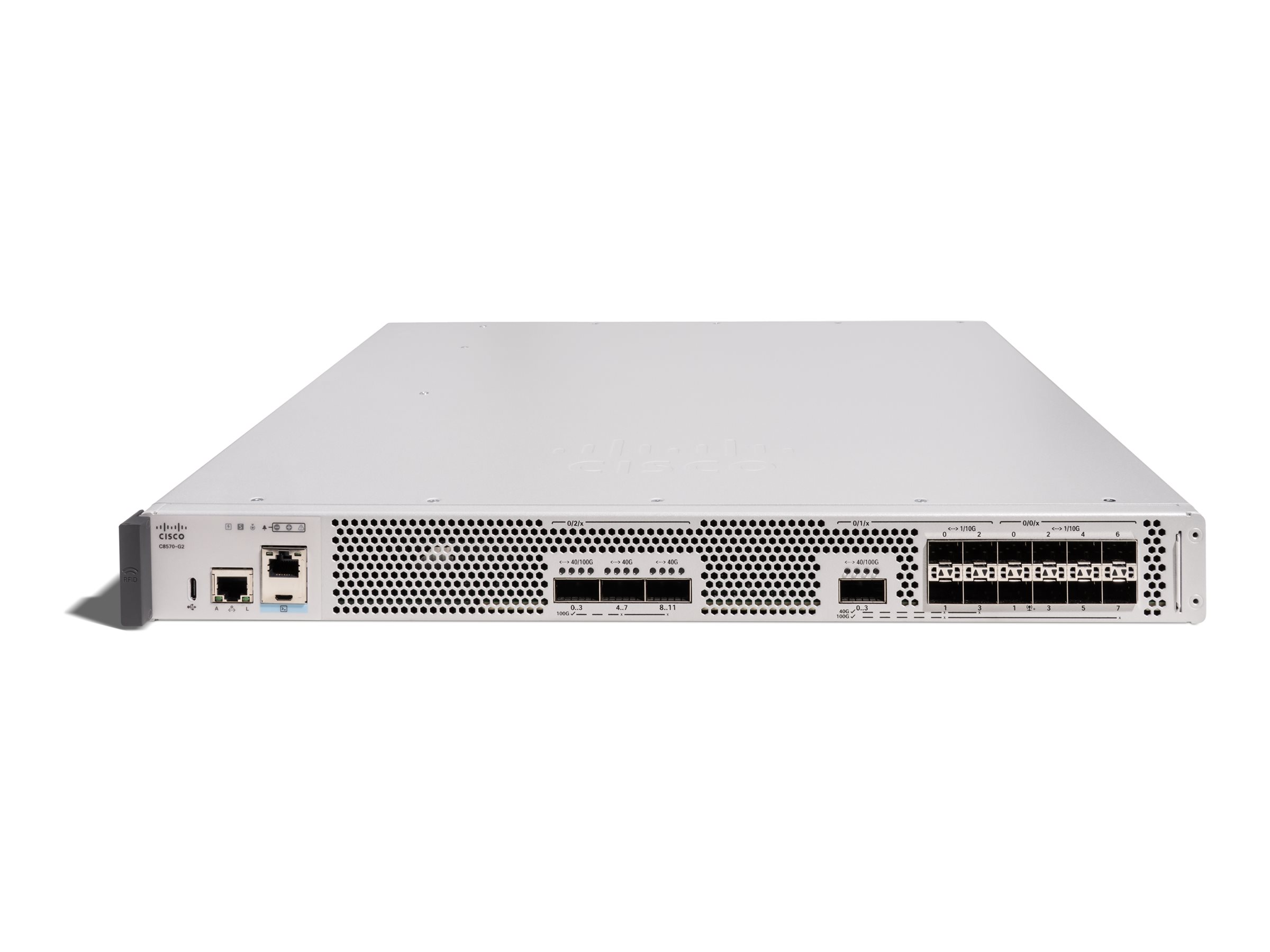

| Product Description | Cisco C8570-G2 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 190 Gbps ¦ IPsec throughput: 63 Gbps ¦ SD-WAN throughput: 21 Gbps |
| Capacity | IPv4 routes: 8000000 ¦ IPv6 routes: 8000000 ¦ IPSec tunnels: 10000 |
| Features | SD-WAN support, built-in Quantum Flow Processor (QFP) ASIC, DMVPN, GETVPN, FlexVPN technology, MACsec support |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 17.5 in x 18.5 in x 1.7 in |
| Weight | 21.01 lbs |
| System Requirements | Cisco IOS XE 17.15.3 or later |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 190 Gbps ¦ IPsec throughput: 63 Gbps ¦ SD-WAN throughput: 21 Gbps |
| Capacity | IPv4 routes: 8000000 ¦ IPv6 routes: 8000000 ¦ IPSec tunnels: 10000 |
| Features | SD-WAN support, built-in Quantum Flow Processor (QFP) ASIC, DMVPN, GETVPN, FlexVPN technology, MACsec support |
| Compliant Standards | GR-1089-CORE, GR-63-CORE, NEBS, RoHS, REACH, WEEE, 47 CFR Part 15 Class A, AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22, CISPR 32 Class A, EMC, EN 300 386, EN 55032, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-6-1, EN IEC 61000-3-2, EN50082-1, EN55022, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1, IEC/EN 61000-3-3, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, KN32 Class A, KN35, UL 60950-1, VCCI Class A |
| RAM | 32 GB |
| Hard Drive | 480 GB |
| Built-in Devices | RFID tag |
| Expansion / Connectivity | |
| Interfaces | WAN: 12 x 10Gb Ethernet - SFP+ ¦ WAN: 2 x 40Gb Ethernet - QSFP+ ¦ WAN: 2 x 40Gb Ethernet / 100Gb Ethernet - QSFP28 ¦ USB 3.0: 1 x 24 pin USB-C ¦ Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 ¦ Console: 1 x 5 pin Micro-USB Type B |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 2 years - response time: 10 days |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (max) |
| ENERGY STAR Certified | Yes |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.15.3 or later |
| Software Requirements | Cisco Catalyst SD-WAN Manager 20.15.3 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10-85% |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Weight | 21.01 lbs |
