Router WAN ports: 12 - rack-mountable
| Main Specifications | |
|---|---|

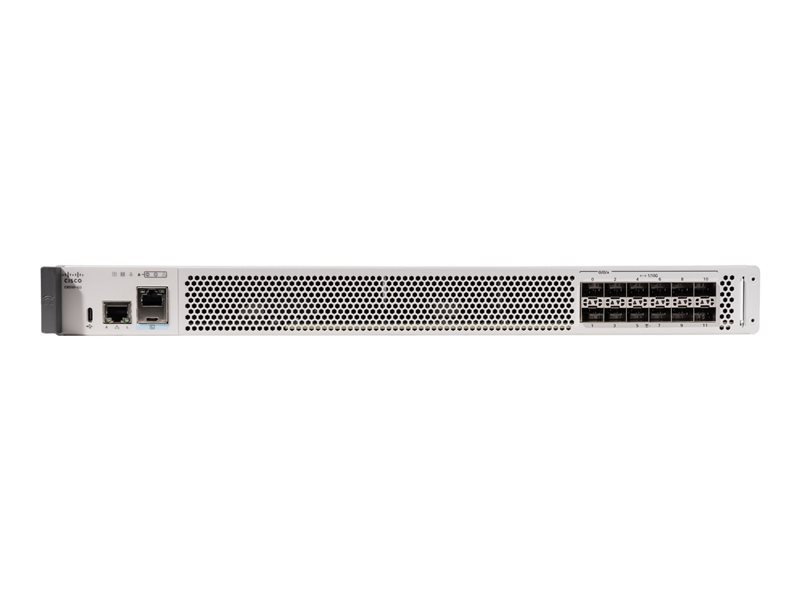

| Product Description | Cisco C8550-G2 - router - RFID - rack-mountable |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| WAN Ports Qty | 12 |
| Data Link Protocol | Ethernet |
| Performance | Throughput (512-byte packet size): 115 Gbps ¦ VPN throughput (512-bit IPSec): 48 Gbps ¦ SD-WAN throughput: 19 Gbps |
| Capacity | IPv4 routes: 8000000 ¦ IPv6 routes: 8000000 ¦ IPSec tunnels: 10000 |
| Features | Built-in ASIC, routing, manageable, out-of-band management, chassis ground lug |
| Power | AC 230 V |
| Dimensions (WxDxH) | 17.5 in x 18.5 in x 1.7 in |
| Weight | 20.61 lbs |
| System Requirements | Cisco IOS XE 17.15.3 |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet |
| Performance | Throughput (512-byte packet size): 115 Gbps ¦ VPN throughput (512-bit IPSec): 48 Gbps ¦ SD-WAN throughput: 19 Gbps |
| Capacity | IPv4 routes: 8000000 ¦ IPv6 routes: 8000000 ¦ IPSec tunnels: 10000 |
| Features | Built-in ASIC, routing, manageable, out-of-band management, chassis ground lug |
| Compliant Standards | GR-1089, GR-63-CORE, Energy Star, WEEE, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB 4943, 47 CFR Part 15 Class A, ICES-003 Class A, AS/NZS CISPR 32 Class A, CISPR 22 Class A, EN 55022 Class A, VCCI Class A, KN32 Class A, EN IEC 61000-3-2, IEC/EN 61000-3-3, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, KN35, EN 300 386, EN55022, EN 55032, EN55024, EN55035, EN50082-1, CISPR 32 Class A, EN 55032 Class A, EN 61000-6-1, IEC/EN 61000-4-11, REACH, RoHS |
| RAM | 32 GB |
| Hard Drive | 480 GB |
| Status Indicators | Link/activity, status, console, management |
| Expansion / Connectivity | |
| Interfaces | WAN: 12 x 10Gb Ethernet - SFP+ ¦ Console: 1 x RJ-45 ¦ Management: 1 x RJ-45 ¦ USB 3.0: Type C ¦ Console: 1 x 5 pin Micro-USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 2 years - response time: 10 days |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 230 V |
| Software / System Requirements | |
| OS Required | Cisco IOS XE 17.15.3 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% RH |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 18.5 in |
| Height | 1.7 in |
| Weight | 20.61 lbs |
