Router 10GbE, 25GbE - front to back airflow - rack-mountable
| Main Specifications | |
|---|---|

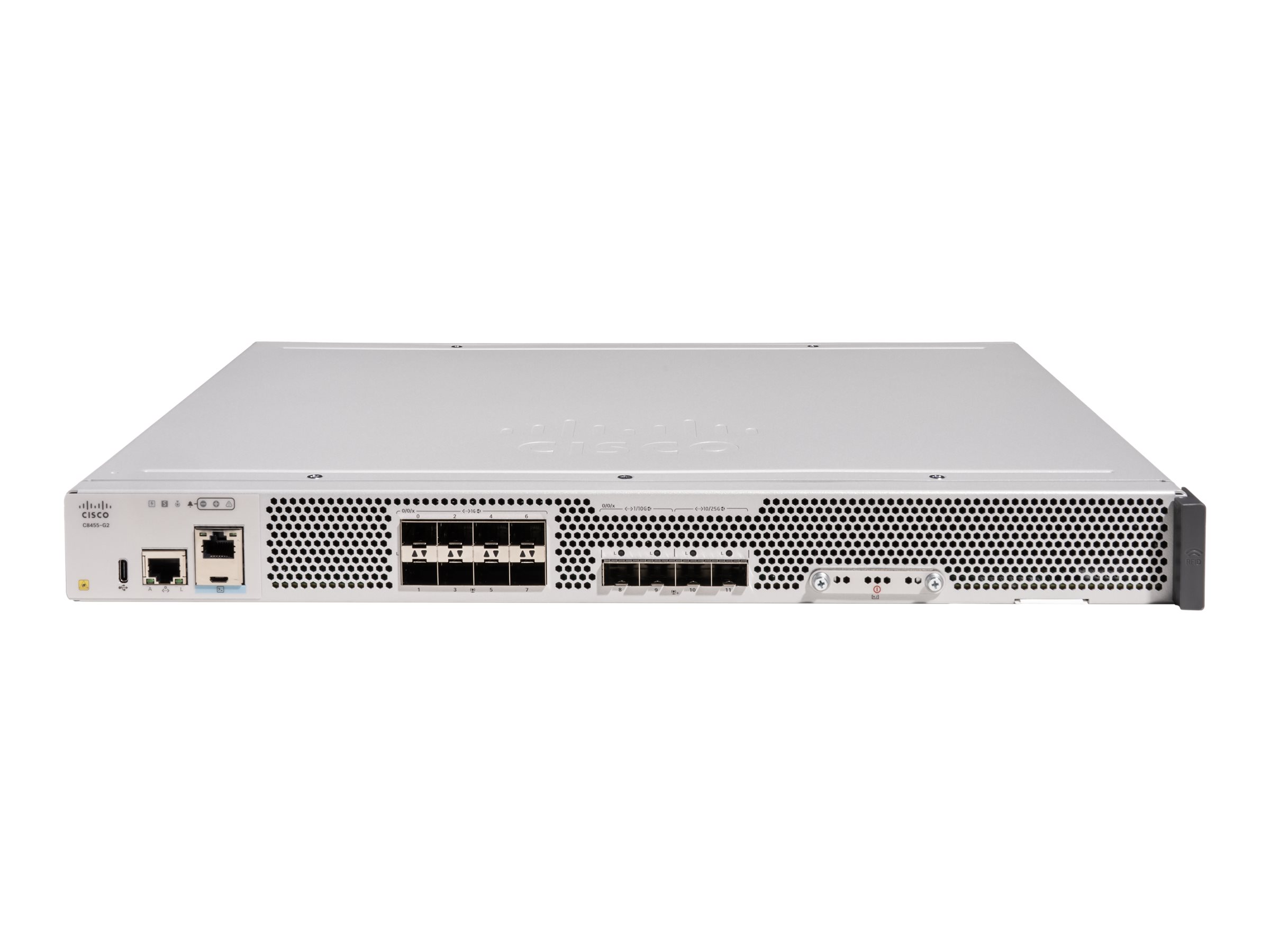

| Product Description | Cisco C8455-G2 - router - rack-mountable |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 67 Gbps ¦ IPsec throughput: 31 Gbps ¦ SD-WAN throughput: 15.5 Gbps ¦ Threat protection (EMIX): 9.5 Gbps |
| Capacity | IPv4 routes: 5800000 ¦ IPv6 routes: 5800000 ¦ IPSec tunnels: 3500 |
| Network / Transport Protocol | Telnet |
| Features | SD-WAN support, QoS, auto-negotiation |
| Power | AC 120/230 V |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 17.5 in x 12 in x 1.7 in |
| Weight | 12.5 lbs |
| System Requirements | Cisco IOS XE 17.15.3 or later |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Performance | Forwarding throughput (512-byte packet size): 67 Gbps ¦ IPsec throughput: 31 Gbps ¦ SD-WAN throughput: 15.5 Gbps ¦ Threat protection (EMIX): 9.5 Gbps |
| Capacity | IPv4 routes: 5800000 ¦ IPv6 routes: 5800000 ¦ IPSec tunnels: 3500 |
| Network / Transport Protocol | Telnet |
| Authentication Method | Secure Shell (SSH) |
| Features | SD-WAN support, QoS, auto-negotiation |
| Compliant Standards | GR-1089, GR-63-CORE, 47 CFR Part 15 Class A, AS/NZS 60950-1, AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 32 Class A, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN IEC 61000-3-2, GB 4943, ICES-003 Class A, IEC 60950-1, IEC/EN 61000-3-3, KN32 Class A, UL 60950-1, VCCI Class A, WEEE, RoHS, REACH |
| RAM | 32 GB |
| Flash Memory | 32 GB |
| Hard Drive | 32 GB |
| Built-in Devices | RFID tag |
| Status Indicators | Power, status, beaconing, alarm, PSU, link, activity, console, serial |
| Expansion / Connectivity | |
| Interfaces | USB 3.0: 1 x Type C ¦ Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 ¦ Console: 1 x 5 pin Micro-USB Type B ¦ WAN: 8 x 1Gb Ethernet - SFP (mini-GBIC) ¦ WAN: 2 x 10Gb Ethernet / 1Gb Ethernet - SFP+ ¦ WAN: 2 x 10Gb Ethernet / 25Gb Ethernet - SFP28 |
| Expansion Slots | 1 (total) / 0 (free) x M.2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - return to factory - 2 years - response time: 10 days |
| Miscellaneous | |
| Included Accessories | 19" rack mounting kit |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Yes |
| Installed Qty | 2 (max) |
| Voltage Required | AC 120/230 V |
| ENERGY STAR Certified | Yes |
| Software / System Requirements | |
| OS Provided | Cisco IOS XE 17.15 |
| Software Included | Network Plug-n-Play License |
| OS Required | Cisco IOS XE 17.15.3 or later |
| Software Requirements | Cisco Catalyst SD-WAN Manager 20.15.3 or later |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 12 in |
| Height | 1.7 in |
| Weight | 12.5 lbs |
