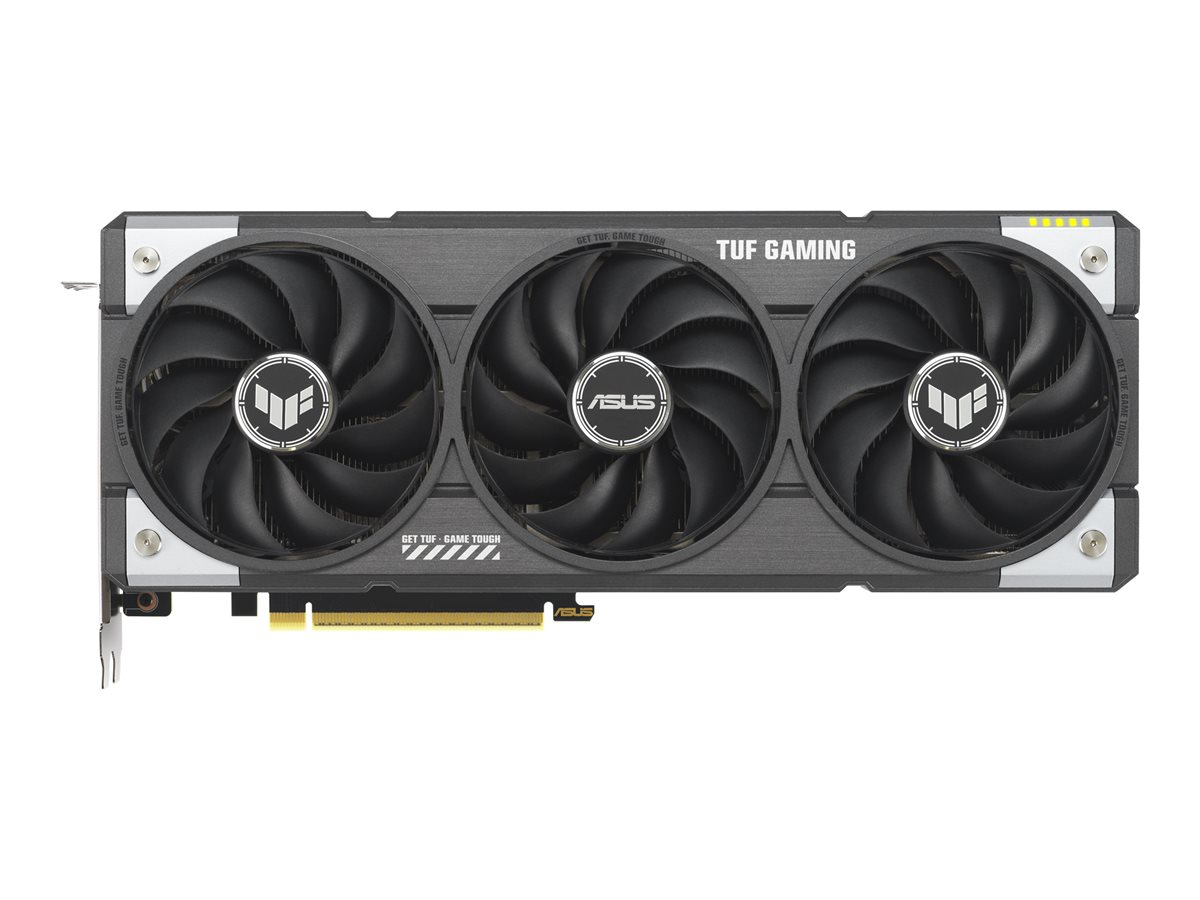

OC Edition - graphics card - Radeon RX 9060 XT - 16 GB GDDR6 - PCI Express 5.0 - HDMI, 2 x DisplayPort
| Main Specifications | |
|---|---|
| Product Description | ASUS TUF Gaming Radeon RX 9060 XT 16GB - OC Edition - graphics card - Radeon RX 9060 XT - 16 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | AMD Radeon RX 9060 XT |
| Memory | 16 GB GDDR6 |
| Memory Speed | 20 Gbps |
| Boost Clock | 3320 MHz |
| Boost Clock (OC) | 3340 MHz |
| Stream Processors | 2048 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |
| Interfaces Details | 2 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Dimensions (WxDxH) | 2 in x 12 in x 5 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | AMD Radeon RX 9060 XT |
| Boost Clock | 3320 MHz |
| Boost Clock (OC) | 3340 MHz |
| Stream Processors | 2048 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 3 |
| Interfaces Details | 2 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6 |
| Features | 2.5-slot Fan Cooler, Axial-tech Fan Design, vented exoskeleton, Dual Bios, Dual ball Bearing Fans, MaxContact technology, ASUS GPU Guard, AUTO-EXTREME technology, ASUS AURA SYNC support, AMD RDNA 4 Architecture, AMD FidelityFX Super Resolution 4 (FSR), AMD HYPR-RX technologies, HDCP |
| Memory | |
| Size | 16 GB |
| Technology | GDDR6 SDRAM |
| Memory Speed | 20 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Included Accessories | TUF certificate of reliability, TUF hook-and-loop fastener, TUF magnet, thank you card |
| Software Included | Adobe Creative Cloud (30 days trial), ASUS GPU Tweak III |
| Compliant Standards | DisplayPort 2.1a, HDCP 2.3 |
| Width | 2 in |
| Depth | 12 in |
| Height | 5 in |
| System Requirements | |
| Required Power Supply | 550 W |
| Additional Requirements | 8 pin PCI Express power connector |
