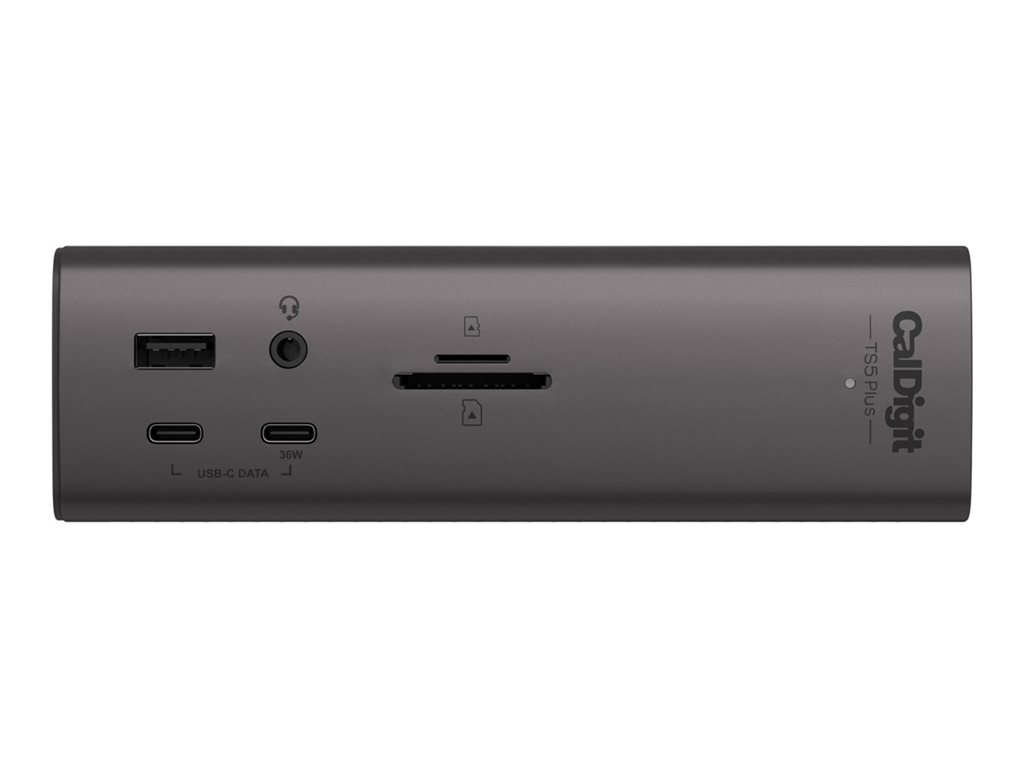

Docking station - Thunderbolt 5 - 2 x Thunderbolt 5, DP - 10GbE - 330 Watt - United States
| Main Specifications | |
|---|---|
| Product Description | Caldigit TS5 PLUS - docking station - Thunderbolt 5 - 2 x Thunderbolt 5, DP - 10GbE |
| Product Type | Docking station |
| Docking Interface | Thunderbolt 5 |
| Video Interfaces | 2 x Thunderbolt 5, DP |
| Dimensions (WxDxH) | 1.9 in x 5 in x 6.1 in |
| Weight | 31.74 oz |
| Localization | United States |
| Networking | 10 Gigabit Ethernet |
| Power | Power adapter 330 Watt Power Provided |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Docking station |
| Width | 1.9 in |
| Depth | 5 in |
| Height | 6.1 in |
| Weight | 31.74 oz |
| Localization | United States |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x microSDXC UHS-II ¦ 1 (total) / 1 (free) x SDXC UHS-II Memory Card |
| Interfaces | 2 x Thunderbolt 5 - 24 pin USB-C ¦ 5 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 5 x USB-C 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x display / video - DisplayPort - DisplayPort 2.1 ¦ 1 x headphone/microphone combo jack - mini-phone 3.5 mm ¦ 1 x network - 10Gb Ethernet - RJ-45 ¦ 1 x audio out - mini-phone 3.5 mm ¦ 1 x audio in - mini-phone 3.5 mm ¦ 1 x power - power DC jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | 1 x Thunderbolt cable - 3.3 ft |
| Included Accessories | 2 x rubber feet, AC power cable |
| Features | Security lock slot (cable lock sold separately), triple display support |
| Security Slot Type | Kensington security slot |
| Compliant Standards | NDAA, DisplayPort 2.1 |
| Networking | |
| Data Link Protocol | 10 Gigabit Ethernet |
| Power | |
| Power Device | Power adapter |
| Power Provided | 330 Watt |
| Video | |
| Max Resolution Details | 4K - 144 Hz (Triple Display) ¦ 4K - 60 Hz (Single Display (Thunderbolt 5)) ¦ 5K - 60 Hz (Single Display (Thunderbolt 5)) ¦ 6K - 60 Hz (Single Display (Thunderbolt 5)) ¦ 8K - 60 Hz (Single Display (Thunderbolt 5)) ¦ 4K - 144 Hz (Dual Display (Thunderbolt 5)) ¦ 4K - 240 Hz (Dual Display (Thunderbolt 5)) ¦ 4K - 144 Hz (Single Display (Thunderbolt 5)) ¦ 3440 x 1440 - 240 Hz (Single Display (Thunderbolt 5)) ¦ 4K - 60 Hz (Dual Display (Thunderbolt 5)) |
| System Requirements | |
| OS Required | Apple macOS Sequoia 15.x, Microsoft Windows 11, Apple iPadOS |
