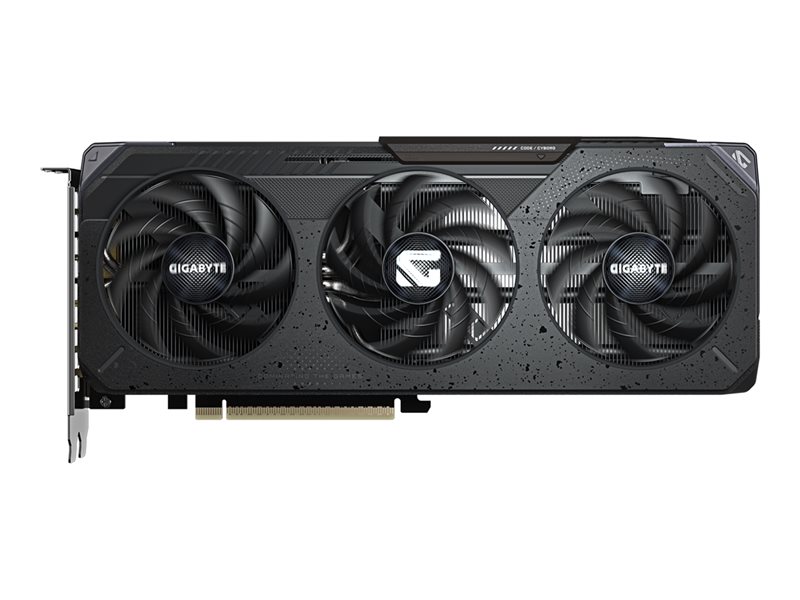

Graphics card - GeForce RTX 5060 - 8 GB GDDR7 - PCI Express 5.0 - 3 x DisplayPort, HDMI
| Main Specifications | |
|---|---|
| Product Description | Gigabyte GeForce RTX 5060 GAMING OC 8G - graphics card - GeForce RTX 5060 - 8 GB |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Memory | 8 GB GDDR7 |
| Memory Speed | 28 Gbps |
| Core Clock | 2595 MHz |
| CUDA Cores | 3840 |
| Memory Interface | 128-bit |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6, DirectX 12 |
| Dimensions (WxDxH) | 1.6 in x 11.1 in x 4.7 in |
| General | |
| Device Type | Graphics card |
| Bus Type | PCI Express 5.0 |
| Graphics Engine | NVIDIA GeForce RTX 5060 |
| Core Clock | 2595 MHz |
| CUDA Cores | 3840 |
| Max Resolution | 7680 x 4320 |
| Max Monitors Supported | 4 |
| Interfaces Details | 3 x DisplayPort ¦ HDMI |
| API Supported | OpenGL 4.6, DirectX 12 |
| Features | Triple Fan Design, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, Nvidia Studio, Nvidia Broadcast, 9th Gen NVIDIA Encoder, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, NVIDIA G-Sync ready, NVIDIA Avatar Cloud Engine (ACE), GIGABYTE WINDFORCE cooling design, Hawk Fan design, server-grade thermal conductive gel, RGB Lighting, 3D Active Fan, Gigabyte Alternate Spinning, Graphene Nano Lubricant, composite copper heat pipes, screen cooling, sliding side plate, metal backplate, Dual Bios, LED indicator, Ultra Durable VGA |
| Memory | |
| Size | 8 GB |
| Technology | GDDR7 SDRAM |
| Memory Speed | 28 Gbps |
| Bus Width | 128-bit |
| Miscellaneous | |
| Software Included | NVIDIA Studio drivers, GeForce Game Ready Drivers, Gigabyte Control Center |
| Compliant Standards | DisplayPort 2.1b |
| Width | 1.6 in |
| Depth | 11.1 in |
| Height | 4.7 in |
| System Requirements | |
| Required Power Supply | 500 W |
| Additional Requirements | 8 pin PCI Express power connector |
