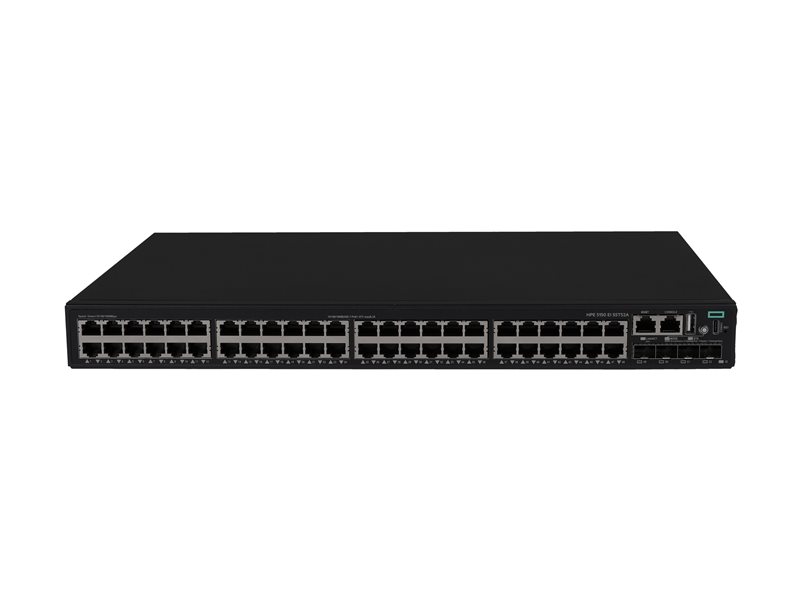

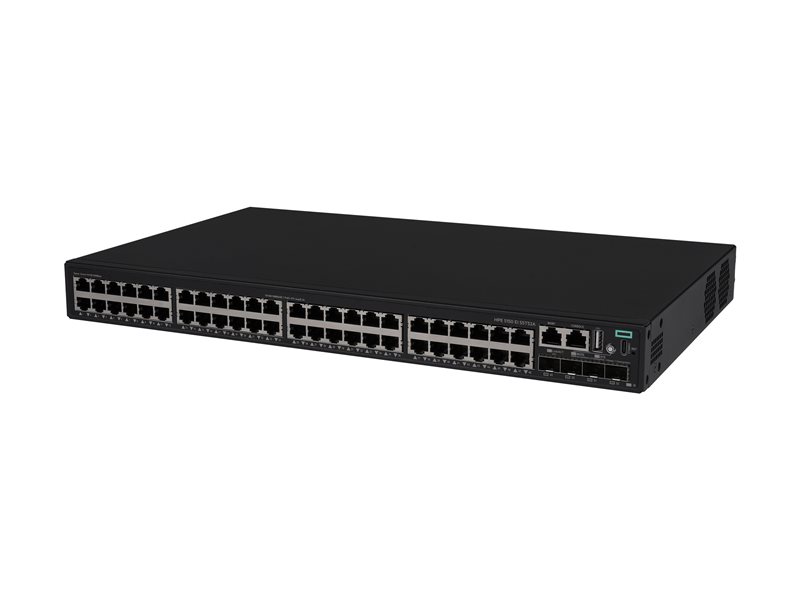

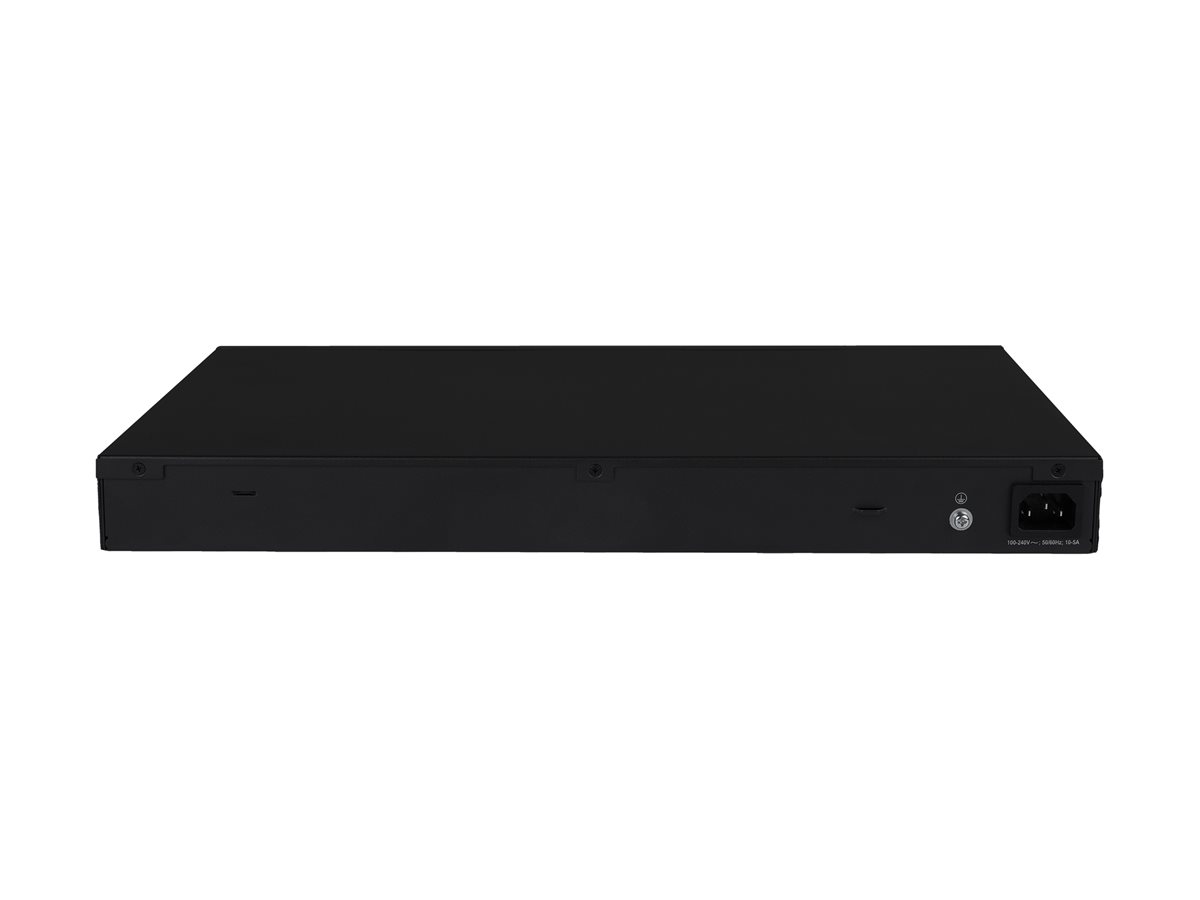

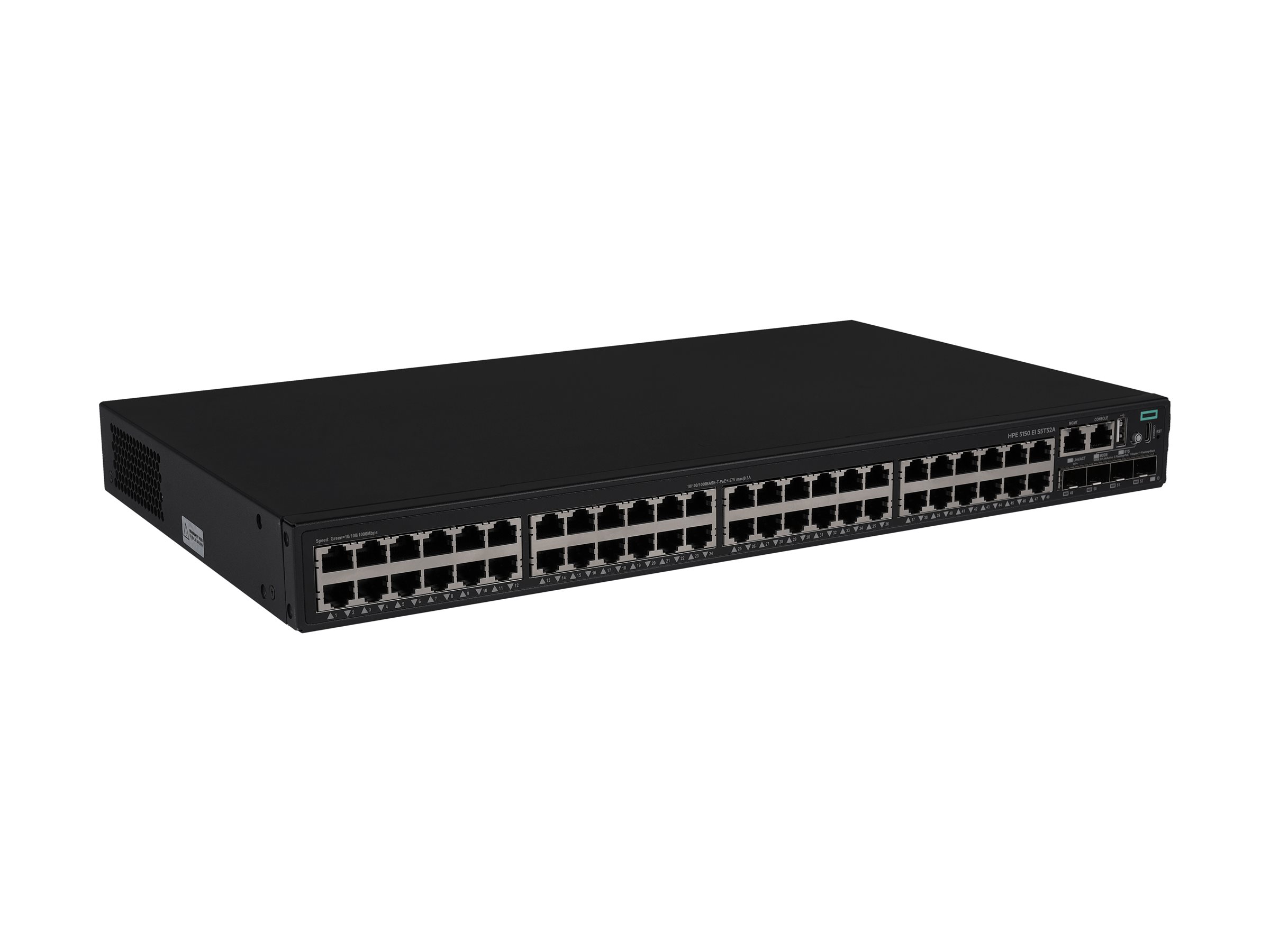

Switch - L3 - managed - 48 x 10/100/1000Base-T (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) - rack-mountable - PoE+ (770 W) - BTO
| Main Specifications | |
|---|---|
| Product Description | HPE Networking Comware 5150EI 48p 10M/100M/1G PoE+ 4p SFP+ 1G/10G Switch - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000Base-T (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 770 W |
| Performance | Forwarding capacity: 176 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1000 Mbps): < 5 µs ¦ Latency (10 Gbps): < 3 µs ¦ Packet buffer size: 1.5 MB ¦ Stacking bandwidth: 80 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 32 ¦ IPv4 routes: 3000 ¦ IPv4 host table capacity: 2000 ¦ IPv6 routes: 750 ¦ IPv6 host table capacity: 750 ¦ ACL entries (ingress/egress): 1024 ¦ Virtual Routing and Forwarding (VRF) entries: 32 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMP, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2 |
| Remote Management Protocol | CLI, SNMP, Telnet, SNMP 1, SNMP 2, SNMP 3, MIB |
| Features | DLDP support, layer 2 switching, Energy Efficient Ethernet, Address Resolution Protocol, OSPF, MSTP support, PVST+, RPVST+, Rapid Reconfiguration of Spanning Tree (RSTP), flow control, QoS, sFlow, dynamic ARP protection, non-blocking architecture |
| Compliant Standards | IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.3az, IEEE 802.1ad, IEEE 802.3at |
| Power | AC 90-290 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.3 in x 10.2 in x 1.7 in |
| Weight | 9.26 lbs |
| Localization | English / United States |
| Pricing Type | BTO |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000Base-T (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 770 W |
| Performance | Forwarding capacity: 176 Gbps ¦ Throughput: 130.9 Mpps ¦ Latency (1000 Mbps): < 5 µs ¦ Latency (10 Gbps): < 3 µs ¦ Packet buffer size: 1.5 MB ¦ Stacking bandwidth: 80 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 32 ¦ IPv4 routes: 3000 ¦ IPv4 host table capacity: 2000 ¦ IPv6 routes: 750 ¦ IPv6 host table capacity: 750 ¦ ACL entries (ingress/egress): 1024 ¦ Virtual Routing and Forwarding (VRF) entries: 32 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Max Units In A Stack | 9 |
| Routing Protocol | IGMP, OSPF, OSPFv2, OSPFv3, RIP-1, RIP-2 |
| Remote Management Protocol | CLI, SNMP, Telnet, SNMP 1, SNMP 2, SNMP 3, MIB |
| Authentication Method | RADIUS, TACACS, Secure Shell v.2 (SSH2) |
| Features | DLDP support, layer 2 switching, Energy Efficient Ethernet, Address Resolution Protocol, OSPF, MSTP support, PVST+, RPVST+, Rapid Reconfiguration of Spanning Tree (RSTP), flow control, QoS, sFlow, dynamic ARP protection, non-blocking architecture |
| Compliant Standards | IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3x, IEEE 802.3az, IEEE 802.1ad, IEEE 802.3at |
| Processor | 1 x ARM: 1.2 GHz |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Built-in Devices | 2 non-removable fans |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1/10Gbit LAN SFP+ uplink/stacking ¦ 1 x management RJ-45 out-of-band network management ¦ 1 x console RJ-45 ¦ 1 x USB 2.0 Type A ¦ 1 x console USB Type-C |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | UL 60950-1, EN 60825-1, EN 60825-2, IEC 60950-1, IEC 62368-1, CAN/CSA-C22.2 No.60950-1 (Canada), EN 62368-1/A11, FDA 21 CFR Subchapter J, RoHS, EMC 2004/108/EC, FCC CFR 47 Part 15 Class A, EN 61000-4-11:2004, ANSI C63.4-2009, EN 61000-3-3:2008, VCCI V-3/2012.04, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-4-3:2006, EN 61000-4-4:2012, EN 61000-4-5:2006, EN 61000-4-6:2009, CISPR 22:2008 (International) Class A, EN 55022:2010 Class A, EN 61000-4-29:2000, CISPR 24:2010, EN 300 386 V1.6.1, VCCI V-3/2013.04 Class A, EN55024, EN 300 386 |
| Pricing Type | BTO |
| Localization | English / United States |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 90-290 V (50/60 Hz) |
| Power Consumption Stand by | 35 Watt |
| Software / System Requirements | |
| Software Included | HPE Intelligent Management Center |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 10.2 in |
| Height | 1.7 in |
| Weight | 9.26 lbs |
